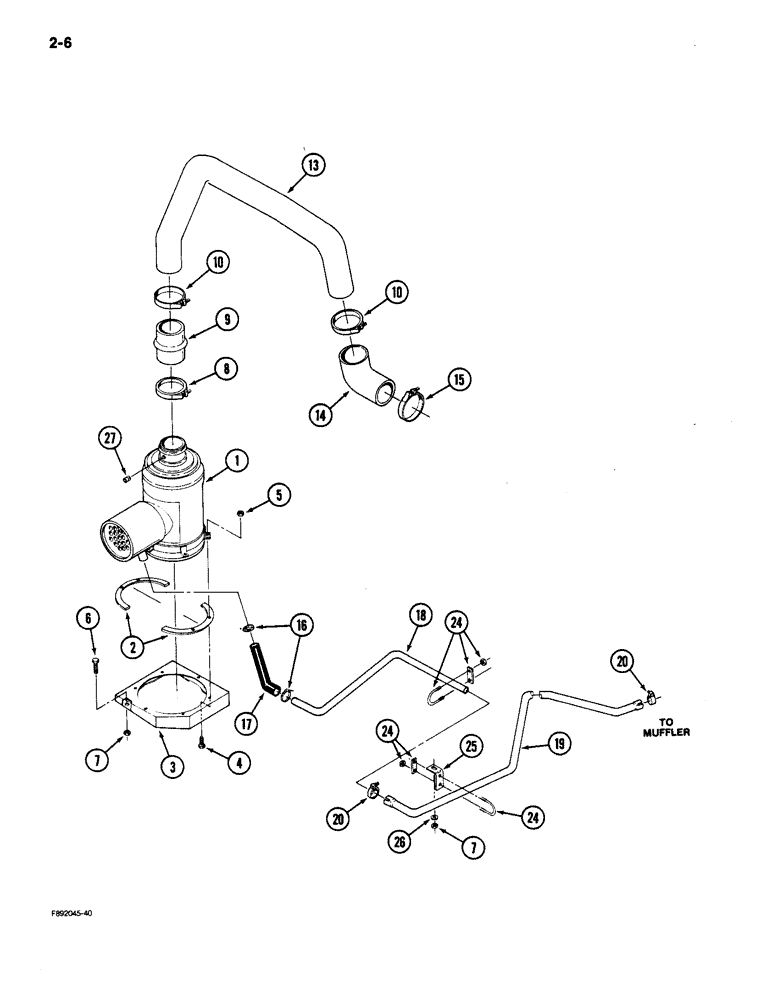

Запчасти Case IH 9150 (2-06) - AIR INDUCTION SYSTEM (02) - ENGINE

1

REF

INSTRUCTION

AIR CLEANER ASSEMBLY - engine (See Figure 2-8)

1шт.

2

90-7017T1

PLATE

- shim

2шт.

3

90-6983T1

ADAPTER

MOUNT - air cleaner

1шт.

Not used, Air Cleaner mounts directly to the frame.

1шт.

4

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- hex, 1/4 NC x 5/8 inch

6шт.

5

19-76

NUT,1/4"-20, G5

- hex, 1/4 inch NC

6шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

5шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

5шт.

8

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

- hose, 6-1/4 to 6-9/16 inch

1шт.

9

9-61

HOSE,5.00" ID, 6.00" ID ID x, 6.00"

Coupling, Air Cleaner to Tube 5.00" ID, 6.00" ID ID x, 6.00"

1шт.

10

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

- hose, 5-1/4 to 5-9/16 inch

2шт.

13

90-6386T1

TUBE,5 mm OD x 37.8, 19.44 mm L

- air induction, air cleaner to engine

1шт.

14

9-94

HOSE,4.0 " ID, 5.0 ID

Coupling, Tube to Engine 4.0 " ID, 5.0 ID

1шт.

15

32-146

CLAMP,#108, 4.25"-4.56", T-Bolt

- hose, 4-1/4 to 4-9/16 inch

1шт.

16

32-25

HOSE CLAMP,#36, 1.81/2.75 Type F Worm

CLAMP - hose, 1-13/16 to 2-3/4 inch

2шт.

17

31-2731

HOSE,8.00"

1.50" ID x , Aspirator; Order 31-2730T1, and Cut to Required Length 8.00"

1шт.

18

90-6755T1

TUBE,1.5" OD x 29.09" L

- aspirator, air cleaner to tube

1шт.

19

90-5843T1

TUBE,1.5" OD

- aspirator, tube to exhaust

1шт.

20

31-2434

CLAMP

- tube

2шт.

24

19-154

U-BOLT,5/16"-18 x 1 3/4" x 3

ASSEMBLY - 5/16 NC x 1-3/4 x 3 inch

2шт.

25

70-4608T1

MOUNTING PARTS

MOUNT - clamp

1шт.

26

19-107

WASHER

- flat, 3/8 inch

1шт.

27

A172784

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.
