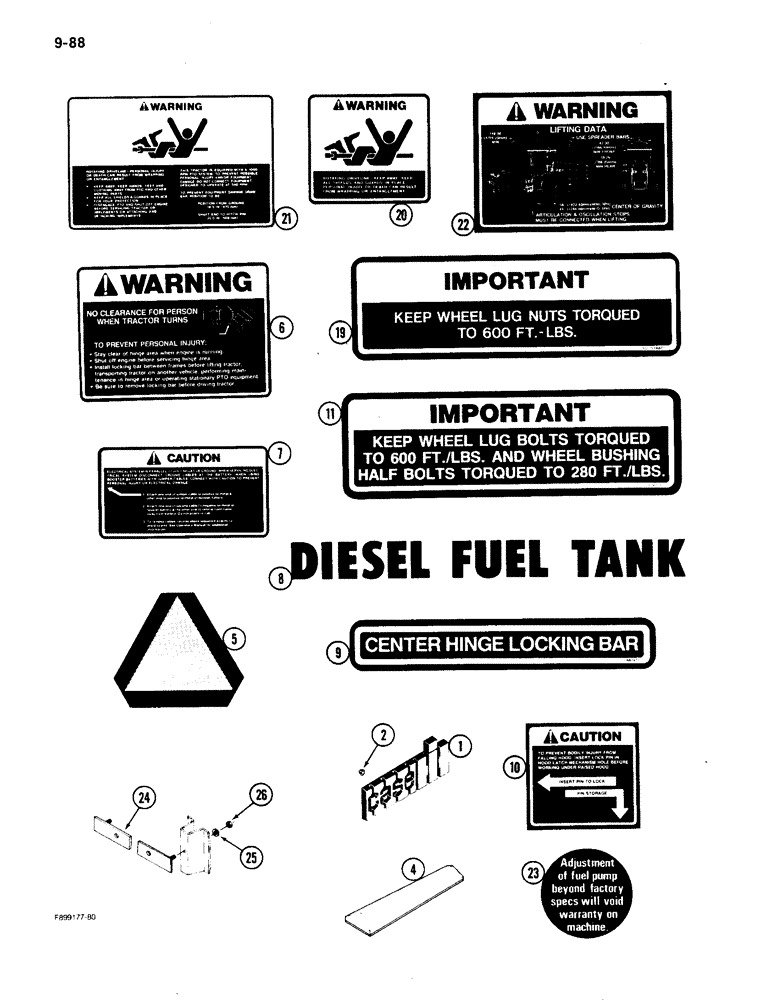

Запчасти Case IH 9150 (9-88) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A181900

EMBLEM

- Case IH

1шт.

1

A181538

EMBLEM CASE/IH

EMBLEM - overhead console, adhesive backed

1шт.

2

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining

2шт.

4

1968108C1

INDICATOR STRIP

TRIM - hood sight

1шт.

5

321-4311

DECAL

- SMV emblem

1шт.

5

26-1

TRAFFIC SIGN

DECAL - slow moving vehicle, metal plate backed

1шт.

19-1061

SELF-TAP SCREW,Flg, 1/4" x 3/8"

SCREW - tapping, flanged, 1/4 NC x 3/8 inch (Decal to mounting bracket, not shown)

2шт.

6

2-6876T1

DECAL

- center hinge

1шт.

7

2-8003T1

DECAL

- booster battery

1шт.

8

26-242T1

DECAL

- diesel fuel tank

1шт.

9

2-6874T1

DECAL

- locking bar, articulation

1шт.

10

2-7279T1

DECAL

- hood pin

1шт.

11

2-7215T1

DECAL

- wheel bolts, adjustabie axle

1шт.

19

2-5348T1

ADHESIVE

DECAL - wheel bolts, non-adjustable axle

1шт.

20

2-7126T1

DECAL

- PTO drive shaft

2шт.

21

2-7125T1

DECAL

- PTO safety

1шт.

22

2-7239T1

DECAL

- lifting data

1шт.

23

A189007

DECAL

- warranty, fuel pump

1шт.

24

60-5969T1

LARGE PLATE

PLATE - mounting, medallion

1шт.

25

19-699

WASHER,3/16"

- flat, 1/4 inch

2шт.

26

19-5563

LOCK NUT

- hex lock, No. 10 NC

2шт.
