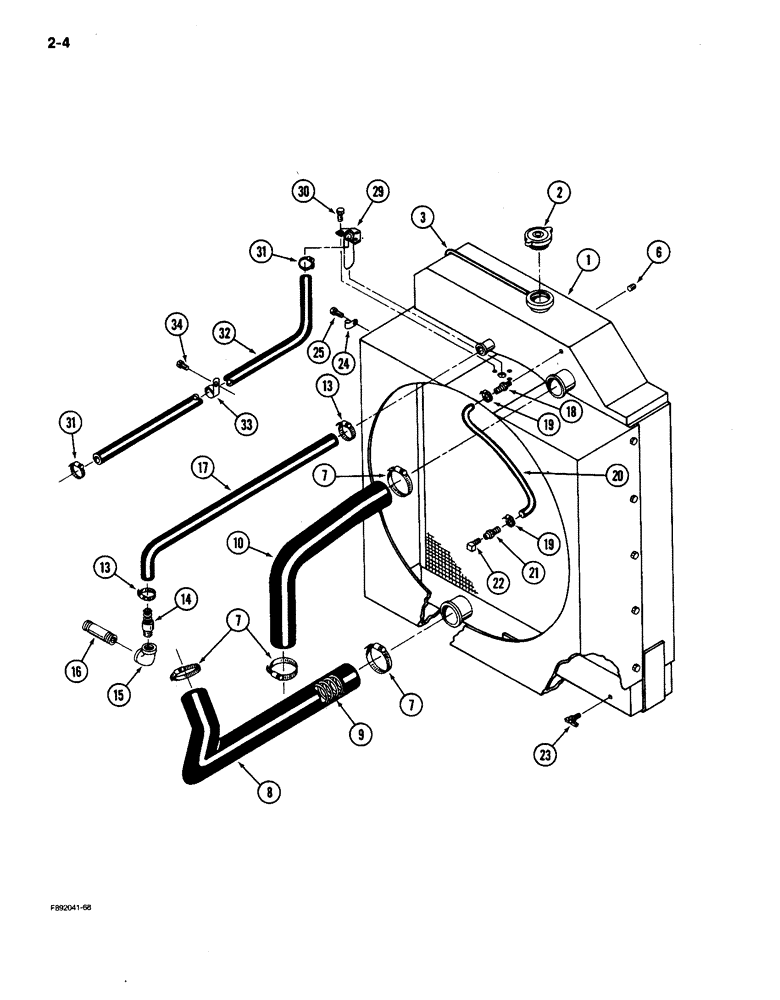

Запчасти Case IH 9150 (2-04) - RADIATOR AND ATTACHING PARTS (02) - ENGINE

1

90-7068T91

RADIATOR

ASSEMBLY - engine cooling (Without shroud), Includes: Ref. 2 and 3

1шт.

2

10-21

CAP

- radiator, 7 PSI

1шт.

3

31-1260

HOSE,0.25" ID x 57.00"

Overflow (Order 31-1259T91 and cut to length) 0.25" ID x 57.00"

1шт.

6

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

7

70-5521T1

COLLAR CLAMP

CLAMP - hose, 2-13/16 to 3-3/4 inch

4шт.

8

31-2436

HOSE,2.50" ID

Radiator, Lower 2.50" ID

1шт.

9

32-1007

SPRING

- hose, insert

1шт.

10

31-2591

HOSE,2.25" ID x 16.23"

Radiator, Upper 2.25" ID x 16.23"

1шт.

13

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP - hose, 13/16 to 1-3/4 inch

2шт.

14

31-248

FITTING

ADAPTER - straight, 1 inch PT x 1 inch barb

1шт.

15

31-46

ELBOW

- 90 degree, 1 inch PT

1шт.

16

31-277

NIPPLE, LUBE

NIPPLE - straight, 1/4 inch PT x 4 inch

1шт.

17

31-1508

HOSE,1.00" ID x 51.75"

Order 31-1502T1, and Cut to Required Length 1.00" ID x 51.75"

1шт.

18

220-3

FITTING

- barb, straight

1шт.

19

32-29

HOSE CLAMP

CLAMP - hose, 7/16 to 3/4 inch

2шт.

20

31-1333

HOSE

1шт.

21

31-164

CONNECTOR, ELEC

ADAPTER - straight, 1/8 inch PT x 3/8 inch barb

1шт.

22

31-237

ELBOW

- 90 degree, 1/8 inch PT

1шт.

23

31-156

PLUG, DRAIN

VALVE - drain, 1/4 inch PT

1шт.

24

22-635

MOUNTING CLIP

CLAMP - hose

2шт.

25

19-717

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

- hex, 1/4 NC x 5/8 inch

2шт.

29

60-4550T1

TUBE,1.77, 1.77" Length

- suction, air conditioner aspirator

1шт.

30

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

31

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch

2шт.

32

31-1507

HOSE,1.00" ID x 63.00"

Air Conditioning Aspirator, Order 31-1502T1, and Cut to Required Length 1.00" ID x 63.00"

1шт.

33

31-1348

CLAMP

- hose

1шт.

34

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

- hex, 10 mm - 1.5 x 75 mm. 8.8

1шт.
