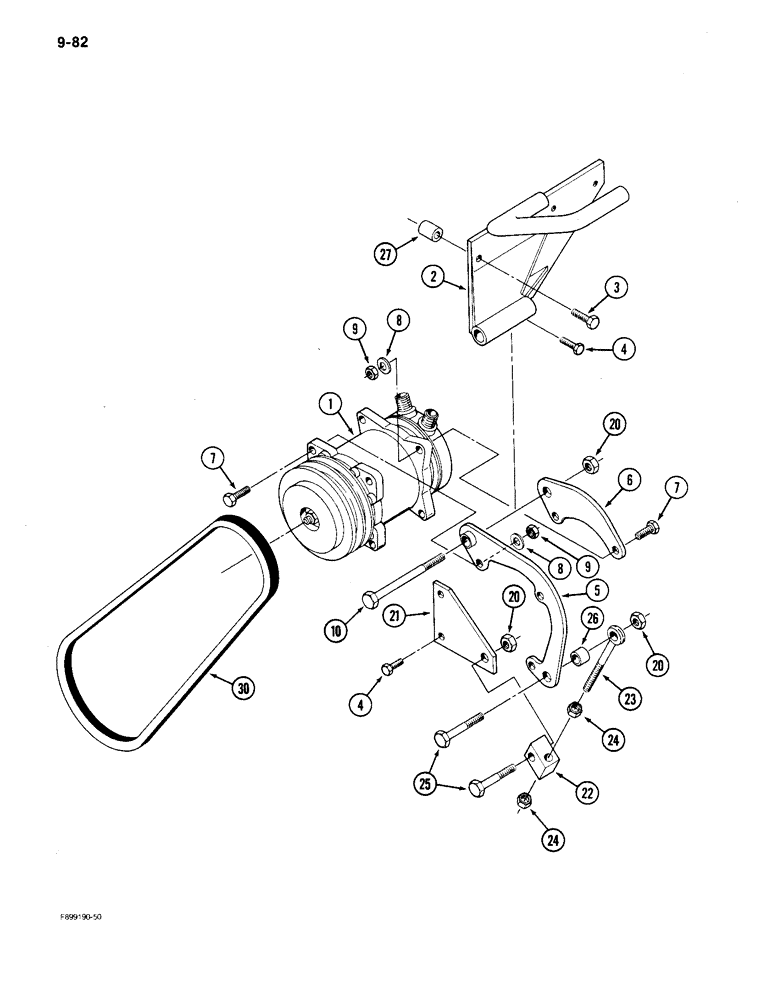

Запчасти Case IH 9150 (9-82) - AIR CONDITIONING, COMPRESSOR MOUNTING AND DRIVE (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-84)

1шт.

2

90-7187T1

BRACKET

MOUNT - compressor

1шт.

3

814-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8

- hex, 10 mm - 1.5 x 75 mm. 8.8

2шт.

4

40-1091

BOLT,Hex, M10 x 1.5 x 20mm, Gr 8.8

BOLT - hex, 10 x 20 mm

4шт.

5

90-3552T1

BRACKET

- compressor pivot, front

1шт.

6

90-3554T1

SUPPORT

BRACKET - compressor pivot, rear

1шт.

7

19-454

SCREW,Hex, M10 x 34mm, Cl 8.8

BOLT - hex, 10 mm - 1.5 x 34 mm

5шт.

8

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

5шт.

9

19-455

NUT

- hex, 10 mm - 1.5

5шт.

10

413-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

- hex, 1/2 x 5-1/2 inch

1шт.

20

19-82

LOCK NUT

- hex lock, 1/2 inch NC

3шт.

21

90-7186T1

PLATE

BRACKET - pivot mounting

1шт.

22

1-6899T1

BLOCK

- adjusting

1шт.

23

22-1086T1

ROD

- compressor belt adjusting

1шт.

24

19-1060

JAM NUT,1/2" - 20, Gr 8

- hex jam, 1/2 inch NC

2шт.

25

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

26

90-7188T1

SPACER

- adjusting rod

1шт.

27

90-7181T1

SPACER

- compressor mount

2шт.

30

90-7190T1

V-BELT,0.56" W x 40.25" L

Compressor 0.56" W x 40.25" L

1шт.
