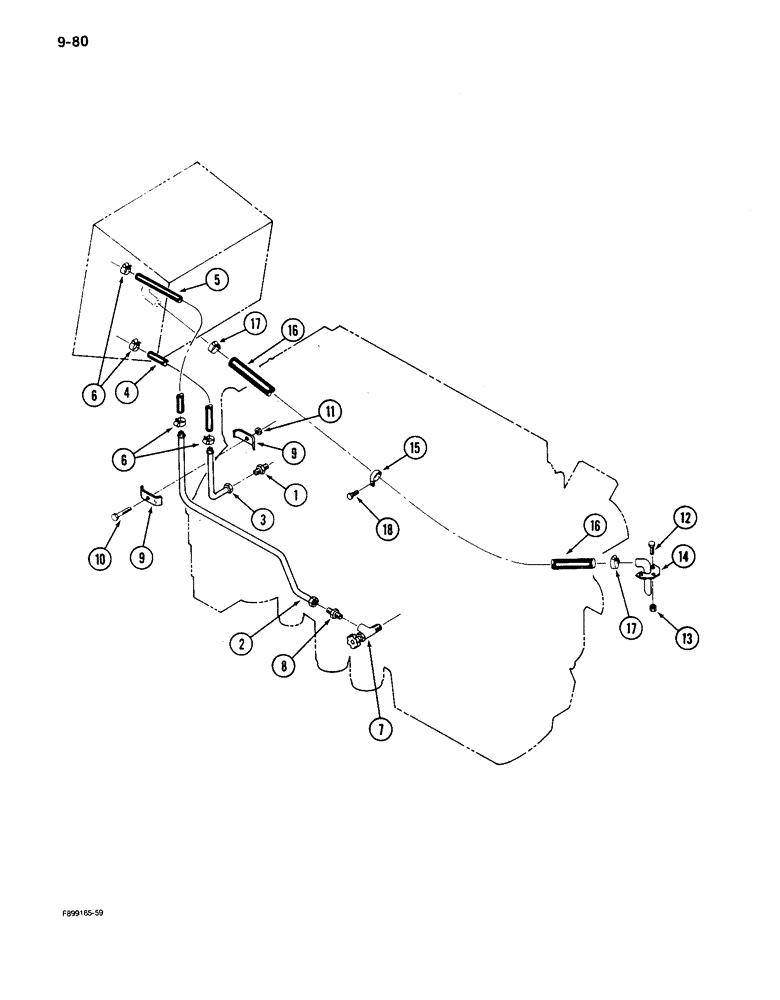

Запчасти Case IH 9150 (9-80) - HEATER PLUMBING, CAB (09) - CHASSIS/ATTACHMENTS

1

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - 7/8-14 male x 1/2 inch PT male..

1шт.

2

50-2606T1

HEATER TUBE

TUBE - heater

1шт.

3

90-3585T1

TUBE,.625" OD

- heater

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - heater core inlet, 5/8 x 18 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

5

NSS

NOT SOLD SEPARAT

HOSE - heater core return, 5/8 x 33 inch (Order 97252C1 and, Serial Range: cut-length)

1шт.

6

25-285T1

HOSE CLAMP,#08, 0.50/0.91 Type F Worm

CLAMP - hose, 1/2 to 7/8 inch

4шт.

7

31-1275

SHUT-OFF VALVE

VALVE - shut off, 1/2 PT x 3/8 inch PT female

1шт.

8

31-319

HYD CONNECTOR,7/8"-14, 37 Degree x 3/8"-18, NPTF

ADAPTER - 7/8-14 male x 3/8 inch PT male

1шт.

9

32-1000

CLAMP

- tubing, steel

2шт.

10

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

- hex, 1/4 NC x 1-1/2 inch

1шт.

11

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

12

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

3шт.

13

19-508

LOCK NUT

- lock, 5/16 inch NC

3шт.

14

60-4550T1

TUBE,1.77, 1.77" Length

- evacuation, precleaner

1шт.

15

31-1348

CLAMP

- tube

1шт.

16

31-1507

HOSE,1.00" ID x 63.00"

Order 31-1502T1, and Cut to Required Length 1.00" ID x 63.00"

1шт.

17

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP - hose, 1 to 2 inch

1шт.

18

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 mm - 1.5 x 70 mm

1шт.
