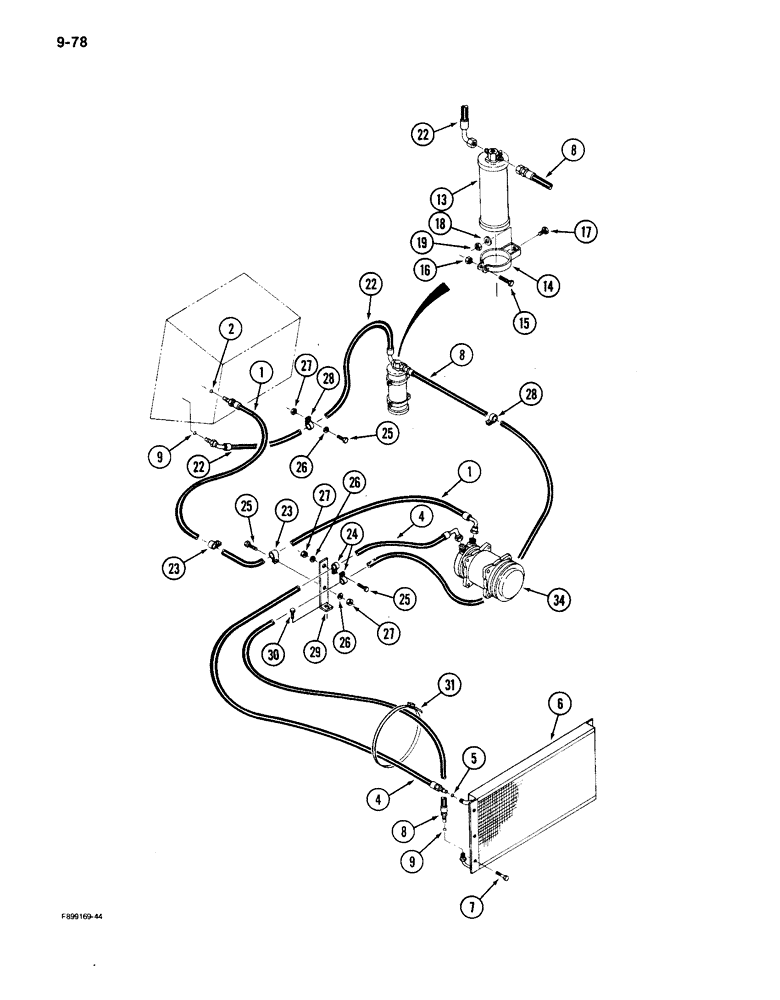

Запчасти Case IH 9150 (9-78) - AIR CONDITIONING, CONDENSER, RECEIVER-DRIER AND PLUMBING (09) - CHASSIS/ATTACHMENTS

1

31-2517

HOSE,15.88mm ID x 62mm L

ASSEMBLY - suction, 62"

1шт.

2

31-1809

O-RING

- hose, 9/16 x 11/16 inch

1шт.

4

31-2749

HOSE

- discharge, 90"

1шт.

5

31-1808

O-RING

O-RING - hose, 7/16 x 9/16 inch

1шт.

6

60-4335T2

CONDENSER

- air conditioning

1шт.

7

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

6шт.

8

31-2500

HOSE

-, Serial Range: condenser-receiver-drier

1шт.

9

31-1807

O-RING

O-RING - 5/16 x 7/16 inch

2шт.

13

60-5818T1

SUPPORT

RECEIVER-DRIER - air conditioning

1шт.

14

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

15

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

2шт.

16

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

17

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

18

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

19

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

22

31-1822

HOSE ASSY.

HOSE - receiver-drier to thermal expansion valve, 28"

1шт.

Part number 31-1822, is not used on this application. Correct part number used is 31-2754. See Prior to PIN JCB0003600 catalog for correct sn break.

1шт.

23

32-161

COLLAR CLAMP

CLAMP - hose

2шт.

24

31-2488

CLAMP

- hose

2шт.

25

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

26

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

3шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

3шт.

28

31-1776

MOUNTING CLIP

CLAMP - hose

2шт.

29

50-2624T1

BRACKET

- clamp mounting

1шт.

30

40-1213

CAPSCREW,Hex, M12 x 1.75 x 25mm, Gr 8.8

BOLT - hex, 12 mm - 1.75 x 25 mm

1шт.

31

50-2037T1

STRAP

- nylon

1шт.

34

REF

INSTRUCTION

COMPRESSOR - air conditioning (See Figure 9-84)

1шт.
