(9-70) - AIR CONDITIONER AND HEATER MODULE, CAB

Запчасти Case IH 9150 (9-70) - AIR CONDITIONER AND HEATER MODULE, CAB (09) - CHASSIS/ATTACHMENTS

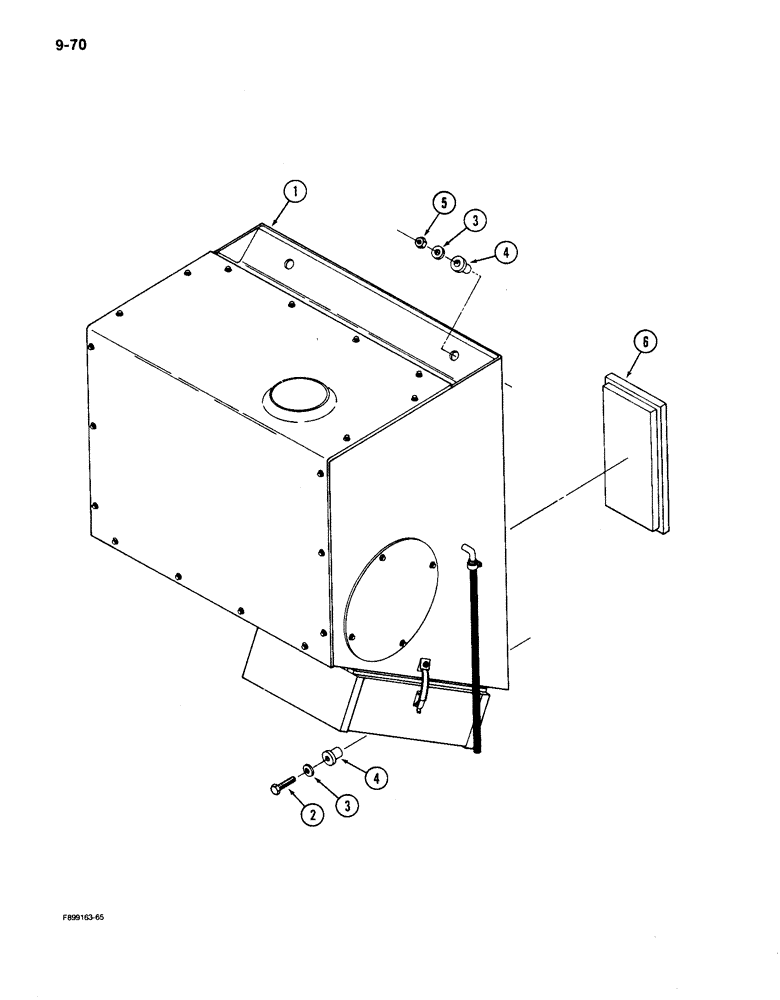

Схема запчастей Case IH 9150 - (9-70) - AIR CONDITIONER AND HEATER MODULE, CAB (09) - CHASSIS/ATTACHMENTS
2
4
3
6
5
1
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

60-4780T94

AIR CONDITIONER

MODULE ASSEMBLY - air conditioner and heater (See Figures 9-72 - 9-74)

1шт.

2

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

2шт.

3

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

4

196504C1

BUSHING

MOUNT - isolator, rubber

4шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

60-3846T2

FILTER

- air recirculation

2шт.
