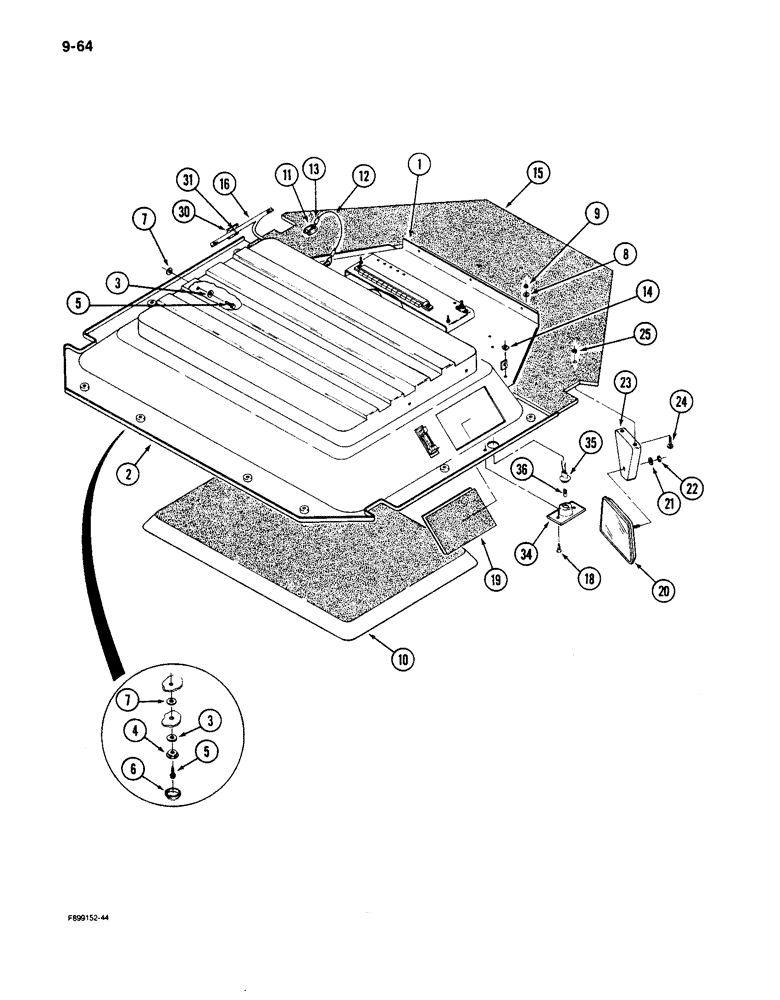

Запчасти Case IH 9150 (9-64) - OVERHEAD CONSOLE, CAB (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

DOOR - overhead (See Figure 9-66)

1шт.

2

REF

INSTRUCTION

HEADLINER - cab (See Figure 9-68)

1шт.

3

9421089

WASHER

- flat, 3/16 x 1/2 x 1/16 inch

11шт.

4

1-8674

CAP WASHER

- trim cap

7шт.

5

19-259

SELF-TAP SCREW,Hex, #10 x 3/4"

SCREW - tapping, hex, No. 10 NC x 3/4 inch

11шт.

6

60-5920T1

CAP

- trim

7шт.

7

19-5668

WASHER

- flat, 1/4 x 3/4 x 3/16 inch

11шт.

8

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

3шт.

9

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

3шт.

10

60-5921T1

FOAM

PAD - insulation

1шт.

11

2-3604T1

LINK

- connecting

2шт.

12

60-4137T1

ROPE

WIRE ROPE - plastic coated

2шт.

13

70-5269T1

FERRULE

- wire rope

4шт.

14

19-5524

NUT

- clip, J-type 1/4-20

2шт.

15

60-5924T1

NOISE PROTECTION

PAD - insulation

1шт.

16

REF

INSTRUCTION

HARNESS - overhead wiring (See Figure 4-6)

1шт.

18

24379R1

SELF-TAP SCREW,Cross Pan Hd, #8 x 1/2"

SCREW - tapping, round head, No. 8 NS x 1/2 inch

2шт.

19

60-5922T1

FOAM

PAD - speaker cover

2шт.

20

A177462

MIRROR

- rear view, Includes: Ref. 21 and 22

1шт.

21

19-467

LOCK WASHER,Ext Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

22

19-5565

LOCK NUT,1/4"-28, GB

NUT, LOCK, 1/4"-28, GB

1шт.

23

64-86T3

SUPPORT

BRACKET - rear view mirror

1шт.

24

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch

2шт.

25

19-5563

LOCK NUT

- hex lock, No. 10 NC

2шт.

30

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

31

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

34

83882C91

LAMP

ASSEMBLY - console, Includes: Ref. 35 and 36

1шт.

35

107329C1

WIRE HARNESS

SOCKET - lamp

1шт.

36

D71346

TAIL LAMP,12V

BULB - light, No. 168

1шт.
