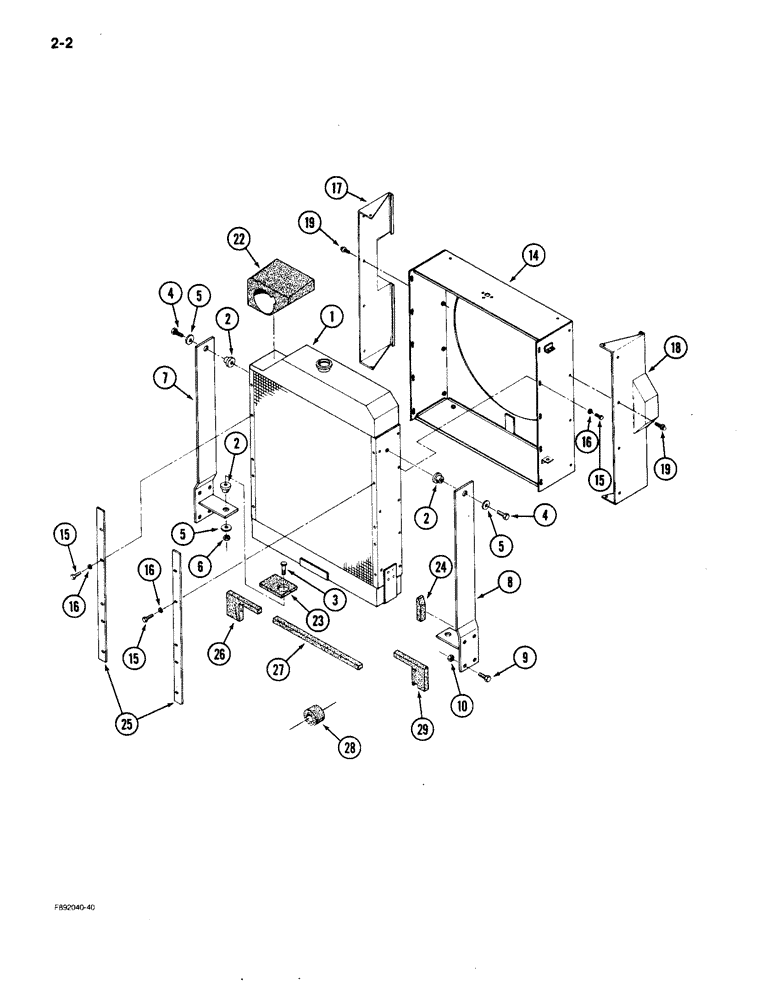

Запчасти Case IH 9150 (2-02) - RADIATOR MOUNTING (02) - ENGINE

1

REF

INSTRUCTION

RADIATOR ASSEMBLY - engine cooling (See Figure 2-4)

1шт.

2

18-511

MOUNTING PARTS

MOUNT - isolator, rubber

4шт.

3

111-539

CARRIAGE BOLT,Short NK, 1/2"-13 x 2", G5

BOLT - round head square neck, 1/2 NC x 2 inch

2шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

19-961

WASHER,17/32" x 1 1/2" x 1/8"

- flat, 1/2 inch

4шт.

6

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

2шт.

7

90-5820T1

SUPPORT

MOUNT - radiator, right

1шт.

8

90-5821T1

SUPPORT

MOUNT - radiator, left

1шт.

9

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

8шт.

10

425-1010

NUT,5/8"-11, G5

8шт.

14

90-6380T3

SHROUD

- fan

1шт.

15

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

20шт.

16

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 0.065 inch

20шт.

17

90-6381T1

GUARD ASSY.

GUARD - belt, right

1шт.

18

90-6382T1

GUARD

- belt, left

1шт.

19

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - tapping, flanged head, 1/4 NC x 3/4 inch

12шт.

22

90-5713T1

SEAL

- radiator, upper right

1шт.

23

90-5714T1

SEAL

- radiator, radiator support

2шт.

24

90-5715T1

SEAL

- radiator, lower corner

2шт.

25

90-7055T1

SEALING STRIP

SEAL - air flow, sides

2шт.

26

90-5964T1

FOAM

SEAL - radiator, right lower side

1шт.

27

90-5965T1

FOAM

SEAL - radiator, bottom

1шт.

28

90-5966T1

SEAL

SEAL - shroud, lower

1шт.

29

90-6316T1

SEAL

- radiator left lower side

1шт.
