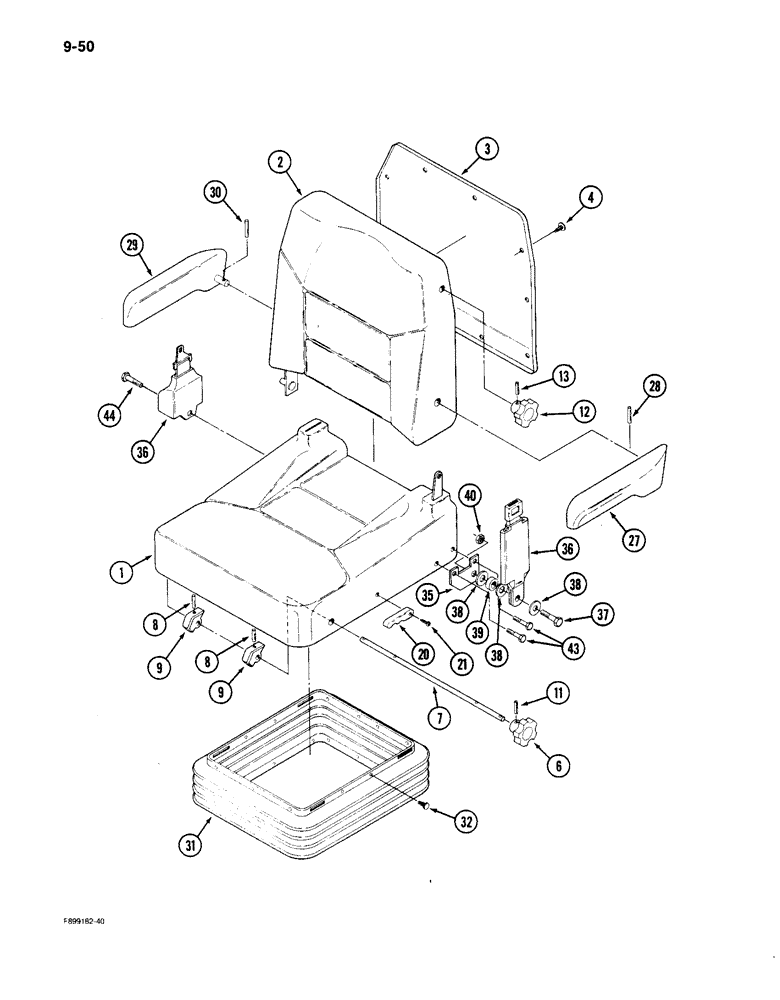

Запчасти Case IH 9150 (9-50) - VINYL SEAT, MECHANICAL SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340224C1

SEAT ASSY.

SEAT ASSEMBLY - mechanical, with vinyl upholstery, Includes: Ref. 1 - 21 and seat kit

1шт.

1981830C1

PACKAGE, REPAIR

SEAT KIT - top, service, Includes: Ref. 1, pad and ring

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat (Order 1981832C1), Includes cushion kit, pad and ring

1шт.

1981832C1

CUSHION, SEAT

CUSHION KIT - seat service

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

22шт.

2

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest (Order 1981820C1), Includes cushion kit, pad and ring

1шт.

1981831C1

BACKREST

CUSHION KIT - backrest service

1шт.

NSS

NOT SOLD SEPARAT

PAD - backrest

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

22шт.

3

1981820C1

PACKAGE, REPAIR

COVER KIT - back, Includes: Ref. 4

1шт.

4

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

6

1981826C1

KNOB

- seat tilt

1шт.

1343826C1

SHAFT

ASSEMBLY - seat tilt, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

SHAFT - seat tilt

1шт.

8

135-77

PULLEY

PIN - roll

2шт.

9

1343828C1

CAM

- seat tilt

2шт.

11

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

12

1981828C1

BUTTON

KNOB - lumbar control

1шт.

13

138-303

LOCK PIN,3/16" x 1 1/8", Slotted

Pin, 3/16" x 1 1/8", Slotted

1шт.

20

1974711C1

LEVER

KNOB - backrest tilt

1шт.

21

30299R1

SCREW,Cross Oval Hd, M6 x 12

- machine, oval head cross recess, 6 x 12 mm

1шт.

27

1981818C1

ARMREST

KIT - seat, left, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

29

1974703C2

ARMREST ASSY.

ARMREST KIT - seat, right, Includes: Ref. 30

1шт.

30

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

31

1981786C1

KIT

BOOT KIT - suspension, Includes: Ref. 32

1шт.

32

1343837C1

SET OF PARTS

PIN - (Bag of 24)

24шт.

35

1975957C1

BRACKET

- seat belt

1шт.

36

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

37

326-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 8

1шт.

38

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

- flat, 17/32 x 1-1/16 x 3/32 inch

3шт.

39

S5375

SPACER,3/8" Pipe x 3/8"

- pipe 3/8 x 3/8 inch, Includes: Ref. 40

1шт.

40

131-1217

LOCK NUT,7/16"-14, GC

NUT - hex lock, 7/16 inch NC

1шт.

43

113-70

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

44

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.
