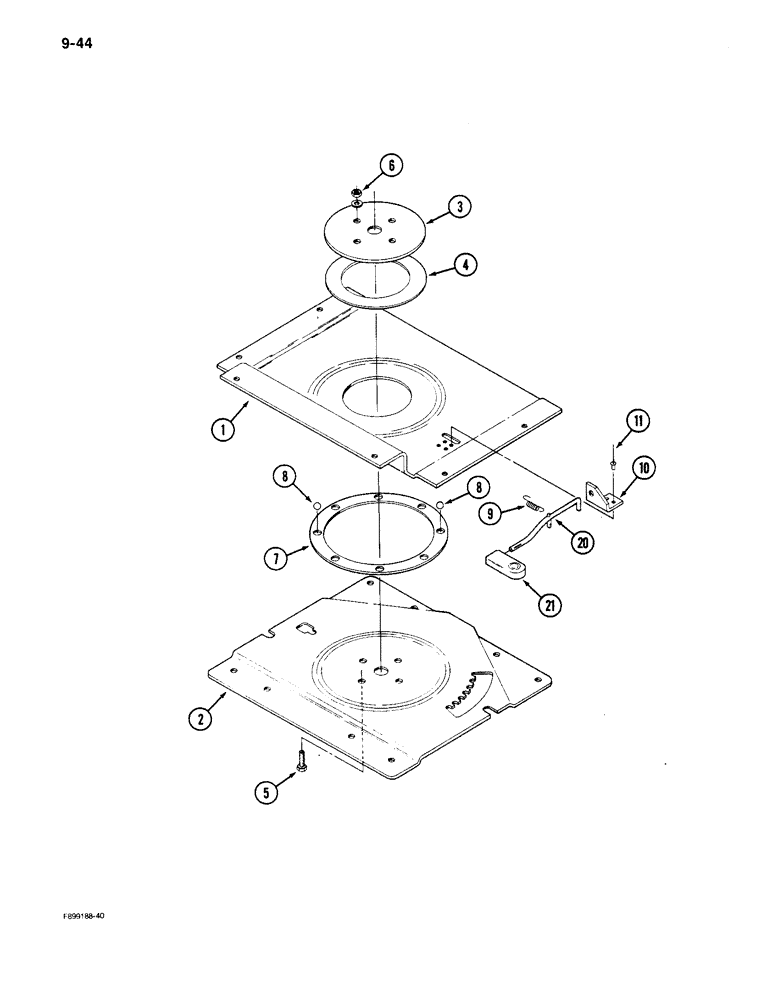

Запчасти Case IH 9150 (9-44) - CLOTH SEAT, AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340225C1

SEAT

ASSEMBLY - air ride suspension (Continued), Includes: Ref. 1 - 21 and swivel assembly

1шт.

1344003C1

SEAT SUPPORT

SWIVEL ASSEMBLY - seat, Includes: Ref. 1 - 21

1шт.

1

1343857C1

LARGE PLATE

PLATE - swivel, upper

1шт.

2

1343858C1

LARGE PLATE

PLATE - swivel, lower

1шт.

3

1343859C1

RETAINER

- swivel

1шт.

4

1343860C1

PLATE

PLATE - swivel bearing

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

4шт.

7

A49555

LARGE PLATE

RETAINER - ball

1шт.

8

211-315

BALL,1/2" Dia

- 1/2 inch diameter

8шт.

9

N8680

SPRING

- latch rod

1шт.

10

1343861C1

SUPPORT

BRACKET - swivel handle

1шт.

11

49-36

RIVET,Truss Hd, 3/16" x 3/8"

- truss head, steel, 3/16 x 3/8 inch

2шт.

20

1343862C1

ROD

- latch, swivel

1шт.

21

1343863C1

KNOB

- latch rod

1шт.
