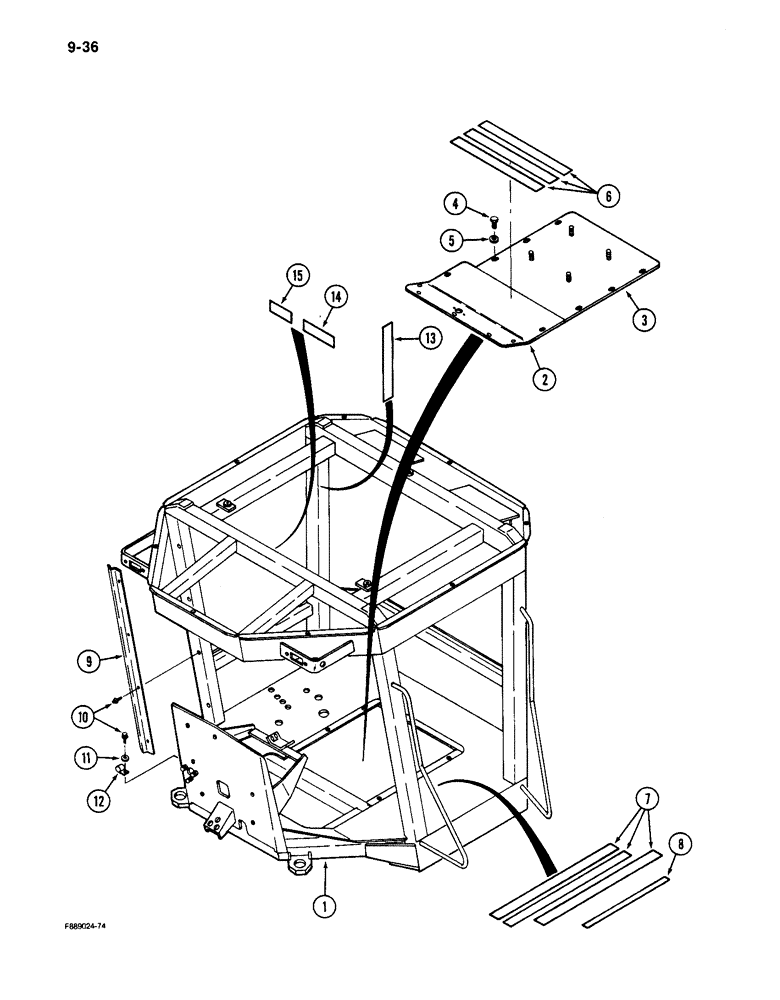

Запчасти Case IH 9150 (9-36) - ROPS FLOOR PLATES (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

FRAME - protective ROPS (See Figure 9-28)

1шт.

2

60-5612T1

PLATE

- floor access, front

1шт.

3

60-6307T1

COVER

PLATE - floor access, rear

1шт.

4

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

13шт.

5

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

13шт.

6

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 25 inch (Order 26-211T1 and, Serial Range: cut-length)

1шт.

7

NSS

NOT SOLD SEPARAT

STRIP - non skid, 2 x 38 inch (Order 26-211T1 and, Serial Range: cut-length

1шт.

8

60-4599T1

BAND

STRIP - non skid, 1 x 25 inch (Order 60-4598T1 and, Serial Range: cut-length)

1шт.

9

60-5855T1

GUARD

- wire, ROPS post

1шт.

10

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged, No. 10 NC x 1/2 inch

6шт.

11

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

2шт.

12

31-1349

MOUNTING CLIP

CLAMP - wire harness

2шт.

13

2-7393T1

DECAL

- safety

1шт.

14

NSS

NOT SOLD SEPARAT

DECAL - ROPS

1шт.

15

60-5866T1

DECAL

- hearing protection

1шт.
