Запчасти Case IH 9150 (9-28) - ROPS (09) - CHASSIS/ATTACHMENTS

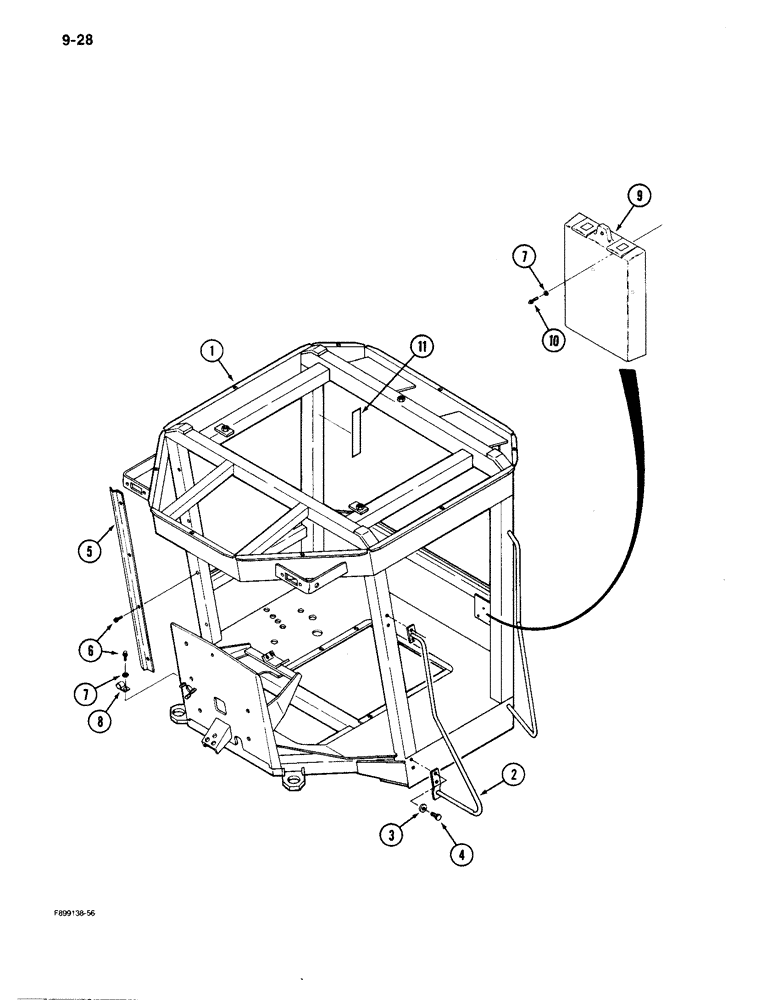

Схема запчастей Case IH 9150 - (9-28) - ROPS (09) - CHASSIS/ATTACHMENTS
1
8
11
7
5
7
3
4
2
10
6
9

Артикул

Название

Примечание

Количество

1

60-6165T1

CAB

FRAME - protective ROPS

1шт.

2

60-5861T1

HANDLE

- side grab

1шт.

3

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

4

19-5348

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

- hex, 3/8 NC x 7/8 inch

4шт.

5

60-5855T1

GUARD

- wire

1шт.

6

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged, No. 10 NC x 1/2 inch

6шт.

7

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

5шт.

8

31-1349

MOUNTING CLIP

CLAMP - harness

2шт.

9

R46464

CASE

BOX - operators manual

1шт.

10

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

- machine, flanged, No. 10 NC x 3/4 inch

3шт.

11

2-7393T1

DECAL

- safety

1шт.

Выбрано товаров: 11
