Запчасти Case IH 9150 (9-26) - CAB AND WINDOWS (09) - CHASSIS/ATTACHMENTS

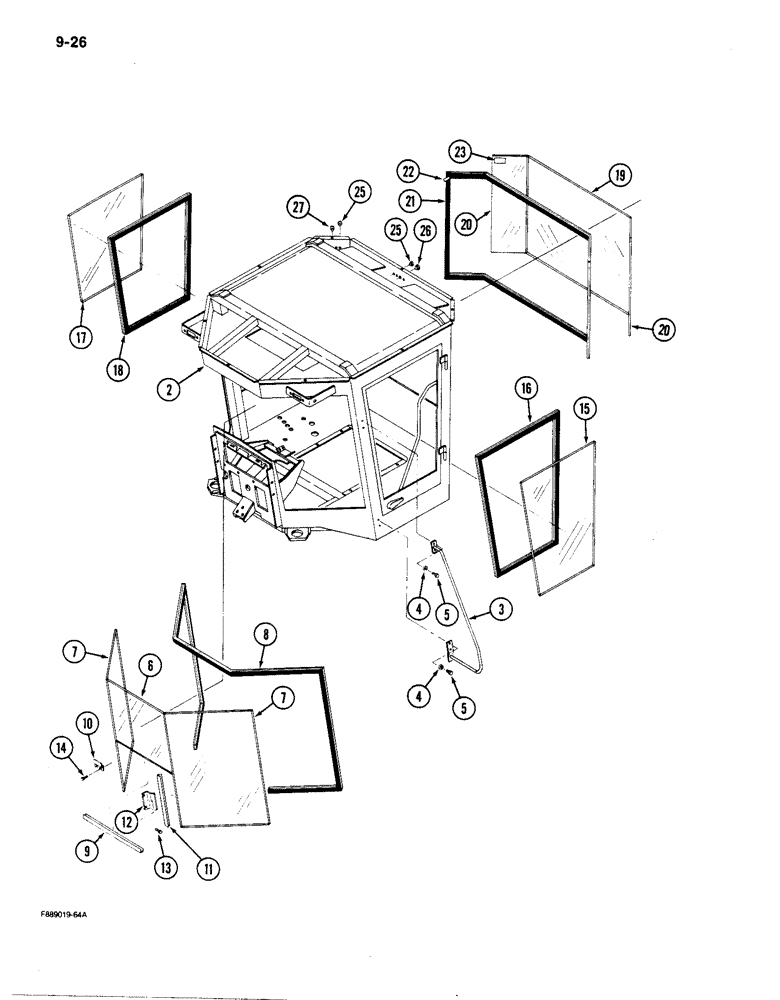

Схема запчастей Case IH 9150 - (9-26) - CAB AND WINDOWS (09) - CHASSIS/ATTACHMENTS
20
10
11
22
4
3
9
27
8
23
16
25
25
13
6
5
20
5
15
7
2
14
21
7
26
18
12
19
4
17

Артикул

Название

Примечание

Количество

REF

INSTRUCTION

CAB ASSEMBLY - tractor (Special order item) (Machinery item)

1шт.

2

60-6287T1

FRAME

ASSEMBLY - cab

1шт.

3

60-5861T1

HANDLE

- side grab

1шт.

4

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

4шт.

5

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

6

60-4315T1

WINDSHIELD

- front, center

1шт.

7

60-3540T1

CAB GLASS ASSY

- front, sides

2шт.

8

60-4682T1

MOLDING

SEAL - windshield molding (Order 2-6789T2 and, Serial Range: cut-length)

1шт.

9

60-3039T1

SEAL, GLASS

ISOLATOR - lower center windshield

1шт.

10

60-2774T1

CLAMP

CLIP - lower windshield retainer

2шт.

11

60-3040T1

SEAL, GLASS

ISOLATOR - front side windshield (Order 2-6789T2 and, Serial Range: cut-length)

2шт.

12

60-4146T1

SUPPORT

BRACKET - windshield retainer

2шт.

13

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - tapping, flanged head, 1/4 NC x 1/2 inch

4шт.

14

281-1358

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - tapping, flanged head, No. 10 NC x 1/2 inch

4шт.

15

60-4603T1

GLASS

WINDOW - door

1шт.

16

60-4602T1

SEAL, GLASS

SEAL - door window molding

1шт.

17

60-3856T1

GLASS,CAB

WINDOW - side

1шт.

18

60-3857T1

SEAL, GLASS

SEAL - side window molding

1шт.

19

60-3859T1

GLASS

WINDOW - back, center

1шт.

20

60-3858T1

GLASS

WINDOW - back, sides

2шт.

21

60-3860T1

SEAL, GLASS

SEAL - rear windows

1шт.

22

20-1814T1

SEAL, GLASS

SLEEVE - heat shrink

1шт.

23

2-6879T1

DECAL

- emergency exit

1шт.

1-1055

SEALANT

ANT - RTV (For sealing glass edges)

1шт.

25

60-4582T1

PLUG

- hole, 5/16 inch diameter

13шт.

26

31-2175

PLUG

- hole, 3/4 inch diameter

4шт.

27

60-4401T1

PLUG

- hole, 5/8 inch diameter

2шт.

Выбрано товаров: 27
