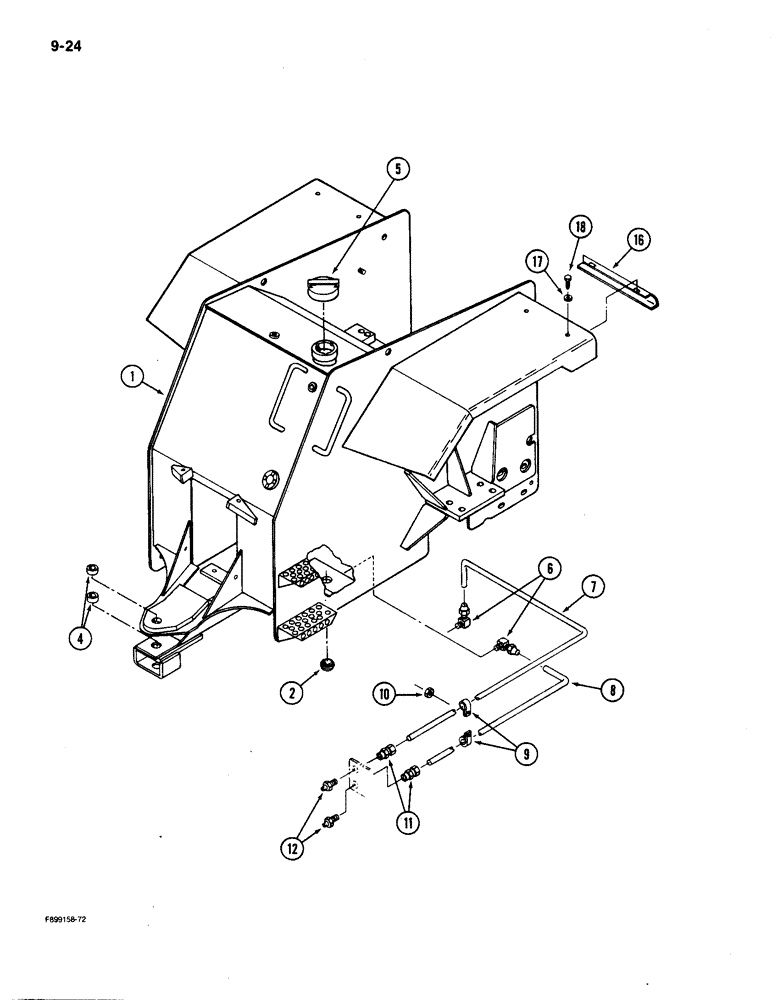

Запчасти Case IH 9150 (9-24) - REAR FRAME (09) - CHASSIS/ATTACHMENTS

1

70-5375T1

FRAME

- rear, Includes: Ref. 2

1шт.

2

70-5517T1

BUSHING,38.09mm ID x 54.74mm OD x 33.33mm L

BEARING - self aligning

2шт.

4

70-4620T1

BUSHING

- frame hinge

2шт.

5

A162191

CAP

- fuel

1шт.

6

31-599

ELBOW

- 90 degree, 1/8 PT x 1/4 inch tube

2шт.

7

50-3124T1

TUBE

- grease

1шт.

8

50-3125T1

TUBE

- grease

1шт.

9

31-1862

CLAMP

- tube

2шт.

10

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

11

31-2785

FITTING

CONNECTOR - straight, 1/8 PT x 1/4 inch tube

2шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

16

70-5311T1

SUPPORT

PLATE - light mounting, left (Shown)

1шт.

16

70-5317T1

SUPPORT

PLATE light mounting, right

1шт.

17

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

4шт.

18

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

70-2140T2

STEP

2шт.

70-4382T1

HANDLE

grab

1шт.
