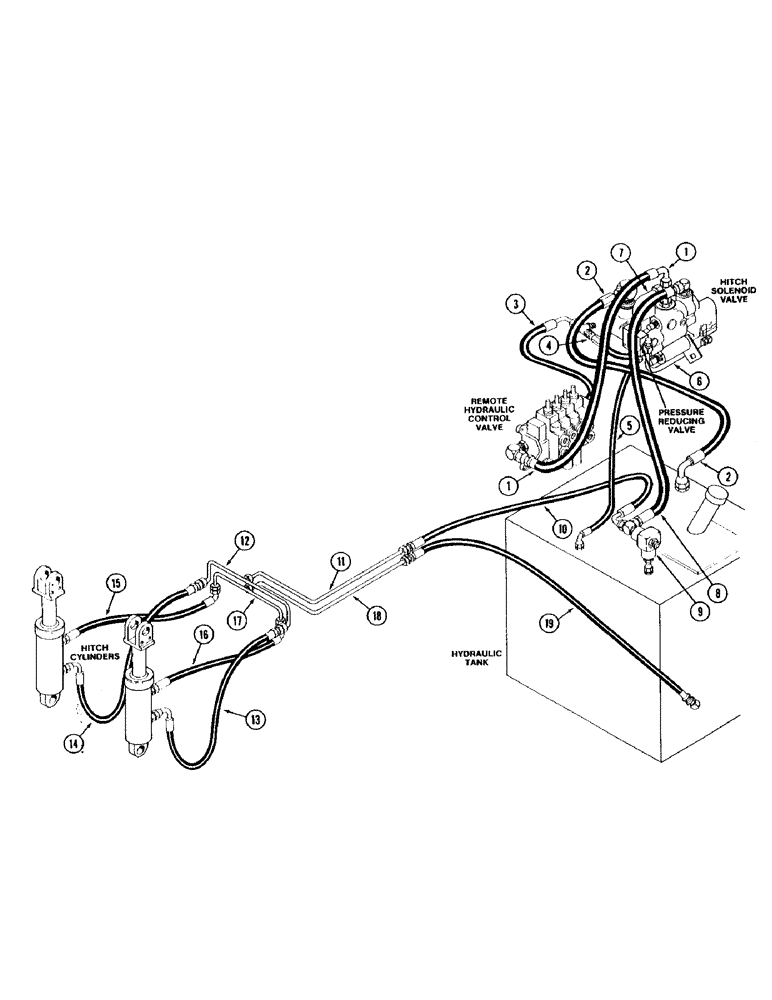

Запчасти Case IH 9150 (1-18) - PICTORIAL INDEX, HITCH HYDRAULICS, ELECTRONIC CONTROLLED (00) - PICTORIAL INDEX

1

Hitch Valve Supply Hose, Page 8-27

1шт.

2

Hitch Valve Drain Hose, Page 8-27

1шт.

3

Hydraulic Pump Pressure Sensing Hose, Page 8-27

1шт.

4

Hitch Valve Pressure Sensing Hose, Page 8-27

1шт.

5

Pressure Reducing Valve Drain Hose, Page 8-27

1шт.

6

Pressure Reducing Valve Tube, Page 8-27

1шт.

7

Pressure Reducing Valve Tube, Page 8-27

1шт.

8

Hitch Cylinder Supply Hose, Page 8-27

1шт.

9

Pressure Relief Valve, Page 8-27

1шт.

10

Hitch Cylinder Supply Hose, Page 8-29

1шт.

11

Hitch Cylinder Supply Tube, Page 8-29

1шт.

12

Hitch Cylinder Supply Tube, Page 8-29

1шт.

13

Hitch Cylinder Supply Hose, Page 8-29

1шт.

14

Hitch Cylinder Supply Hose, Page 8-29

1шт.

15

Hitch Cylinder Drain Hose, Page 8-29

1шт.

16

Hitch Cylinder Drain Hose, Page 8-29

1шт.

17

Hitch Cylinder Drain Tube, Page 8-29

1шт.

18

Hitch Cylinder Drain Tube, Page 8-29

1шт.

19

Hitch Cylinder Drain Hose, Page 8-29

1шт.
