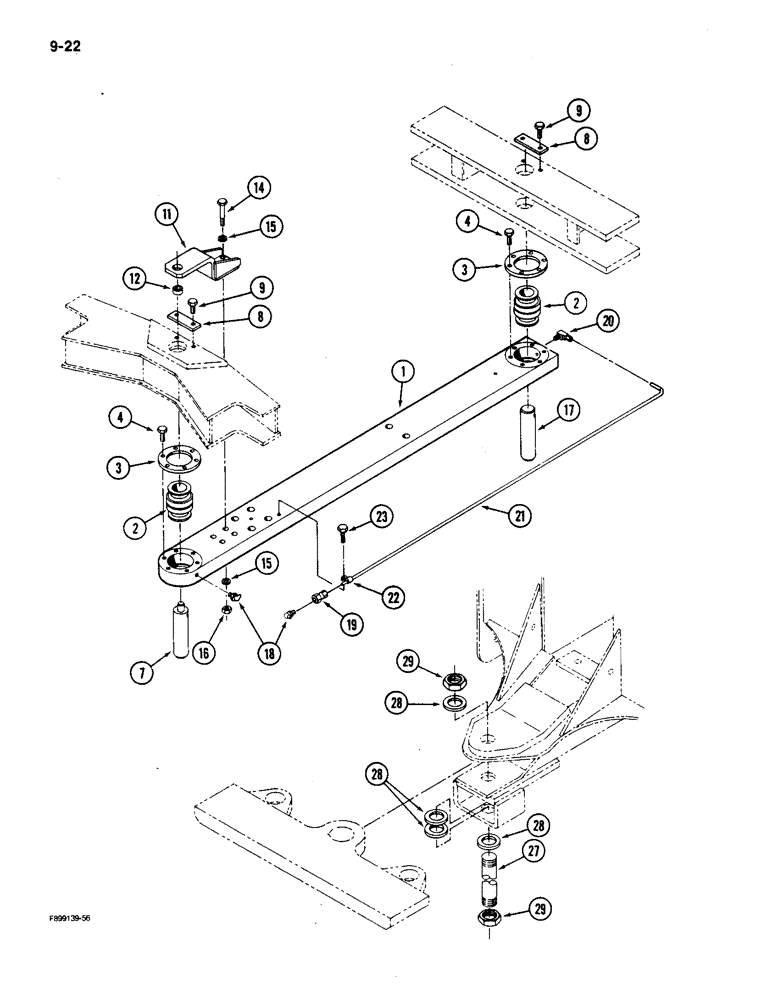

Запчасти Case IH 9150 (9-22) - FRAME CONNECTING LINK AND KING PINS (09) - CHASSIS/ATTACHMENTS

70-5457T91

LINK ASSY.

LINK ASSEMBLY - frame connecting (Order components), Includes: Ref. 1 - 4

1шт.

1

70-5459T1

CONNECTOR, ELEC

LINK - frame connecting

1шт.

2

70-5468T1

SPHERICAL BEARING,1.751" ID x 3.5625" OD x 4"

BEARING - hinge lower

2шт.

3

2-10

RETAINER

RING - bearing retaining

2шт.

4

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

12шт.

7

70-4074T1

PIN,44.37mm OD x 204.22mm L

- connecting link, front

1шт.

8

70-1910T1

RETAINER

- connecting link pin

2шт.

9

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

4шт.

11

70-4075T91

STABILIZER

- link pin, Includes: Ref. 12

1шт.

12

70-4111T1

BEARING

BUSHING - pin stabilizer

1шт.

14

24867R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 8

- hex, 1/2 NC x 3-1/2 inch, Grade 8

4шт.

15

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened

8шт.

16

19-82

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

17

70-4077T1

PIN

- connecting link, rear

1шт.

18

31-93

FITTING

- grease, 1/8 inch PT

2шт.

19

31-2785

FITTING

CONNECTOR - straight, 1/8 PT x 1/4 inch tube

1шт.

20

31-599

ELBOW

- 90 degree, 1/8 inch PT x 1/4 inch tube

1шт.

21

50-3126T1

TUBE

- grease, remote

1шт.

22

31-1862

CLAMP

- tube

1шт.

23

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

27

70-4189T1

PIN,44.37mm OD x 339.85mm L

- king, lower frame connecting

1шт.

28

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, hardened, 1-3/4 x 2-3/4 x 1/4 inch

4шт.

29

19-620T1

NUT

- hex jam, 1-3/4 inch NF

2шт.
