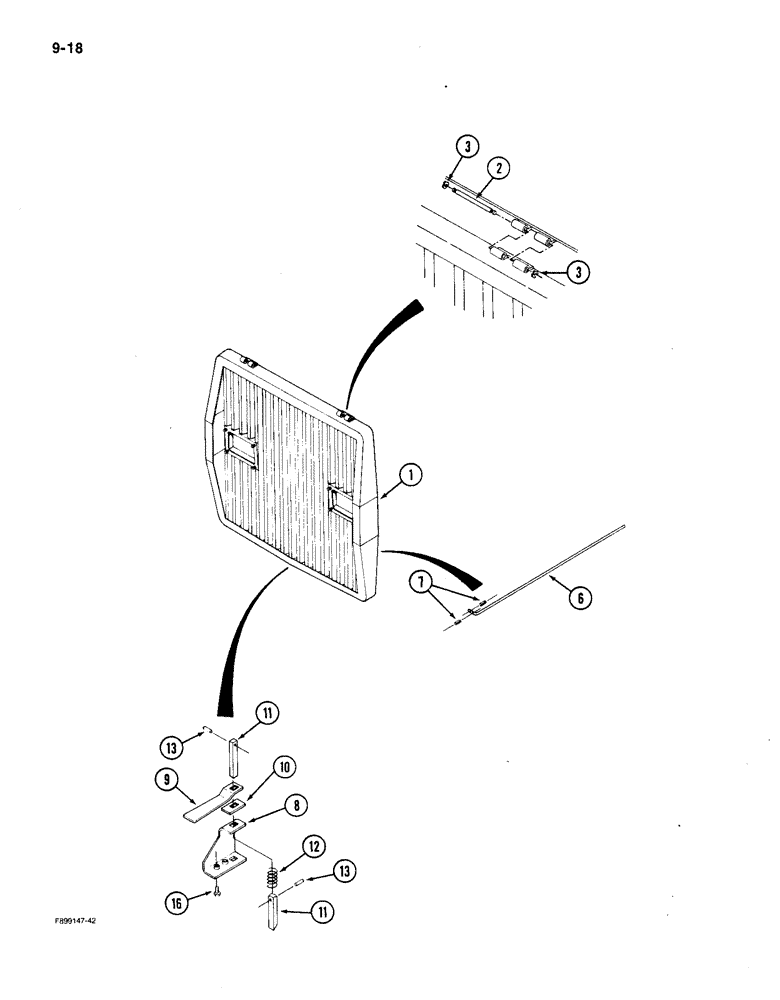

Запчасти Case IH 9150 (9-18) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

70-5405T92

GRILLE

- front screen

1шт.

2

70-1996T2

PIN

- hinge, grille

2шт.

3

70-2600T1

RING, SNAP

RING - retaining, hinge pin

4шт.

6

70-5481T1

GRILLE

ROD - open grille retaining

1шт.

7

19-6135

LOCK PIN,7/32" x 1 1/8", Slotted

Pin, 7/32" x 1 1/8", Slotted

2шт.

70-5451T91

LATCH ASSY.

LATCH - grille opening, Includes: Ref. 8 - 13

1шт.

8

70-5360T1

BRACKET

- grille latch

1шт.

9

70-5359T1

LEVER

- grille latch

1шт.

10

70-5452T1

BEARING

- wear plate, lever

1шт.

11

70-5357T1

ROD

- grille latch

1шт.

12

A61705

SPRING

- latch return

1шт.

13

9415236

PIN, ROLL

PIN - spring, 1/8 x 3/4 inch

2шт.

16

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.
