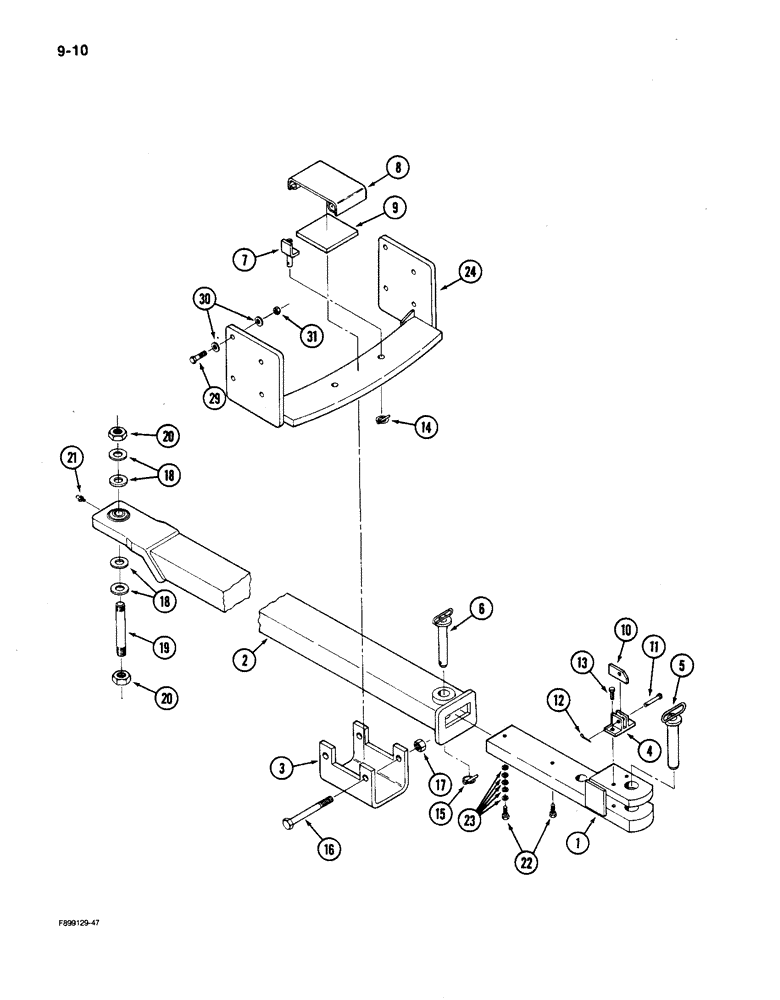

Запчасти Case IH 9150 (9-10) - DRAWBAR, EXTENDABLE (09) - CHASSIS/ATTACHMENTS

1

70-5202T1

DRAWBAR

- extendable

1шт.

2

70-5226T1

ARM

TUBE - drawbar receiver

1шт.

THE UNIBALL THAT GOES INTO THE END OF THIS DRAWBAR IS 40-140 HOUSING 40-139. PER JERRY LARSON.

1шт.

3

70-4516T1

CLEVIS

YOKE - drawbar cradle

1шт.

4

70-1737T1

LATCH

- pin retaining

1шт.

5

70-1735T1

PIN

- drawbar pull

1шт.

6

70-1731T1

PIN

- drawbar retaining

1шт.

7

70-1937T2

SHAFT LOCK

PIN - slide stop

2шт.

8

70-4555T1

COVER

- slider retaining

1шт.

9

70-4513T1

SLIDE

R - drawbar, plastic

1шт.

10

1-4906

LATCH

LEVER - pin retaining

1шт.

11

42-102

CLEVIS PIN,1/2" x 2.060"

PIN - clevis, 1/2 x 2 inch

1шт.

12

19-168

COTTER PIN,1/8" x 1"

PIN - cotter, 1/8 x 1 inch

1шт.

13

326-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

2шт.

14

517758R91

SPLIT PIN/SAFETY PIN

PIN - klik

2шт.

15

19-1041

LOCK PIN,7/16" x 2"

PIN - klik

1шт.

16

19-815

BOLT,Hex, 1" - 8 x 9 1/4", Gr 8

- hex, 1 NC x 9-1/4 inch, Grade 8

2шт.

17

19-375

LOCK NUT,1" - 8, GB

NUT - hex lock, 1 inch NC

2шт.

18

1-4088

WASHER,45mm ID x 69.9mm OD x 6.35mm Thk

- flat, hardened, 1-3/4 x 2-3/4 x 1/4 inch

4шт.

19

70-4189T1

PIN,44.37mm OD x 339.85mm L

- drawbar and center link

1шт.

20

19-620T1

NUT

- hex jam, 1-3/4 inch NC

2шт.

HEX JAM NUT IS 1-3/4" UNF, NOT NC AS SHOWN IN THE DESCRIPTION.

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

22

26-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, Grade 8

2шт.

23

195-108

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 5/32 inch

5шт.

24

70-4304T1

HANGER

- drawbar (Without three point hitch)

1шт.

24

REF

INSTRUCTION

HANGER - drawbar (With three point hitch) (See Figure 9-6)

1шт.

29

19-6173

BOLT,Hex, 3/4" - 10 x 2 1/4", Gr 8

- hex, 3/4 NC x 2-1/4 inch, Grade 8

8шт.

30

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

16шт.

31

19-85

LOCK NUT

- hex lock, 3/4 inch NC

8шт.
