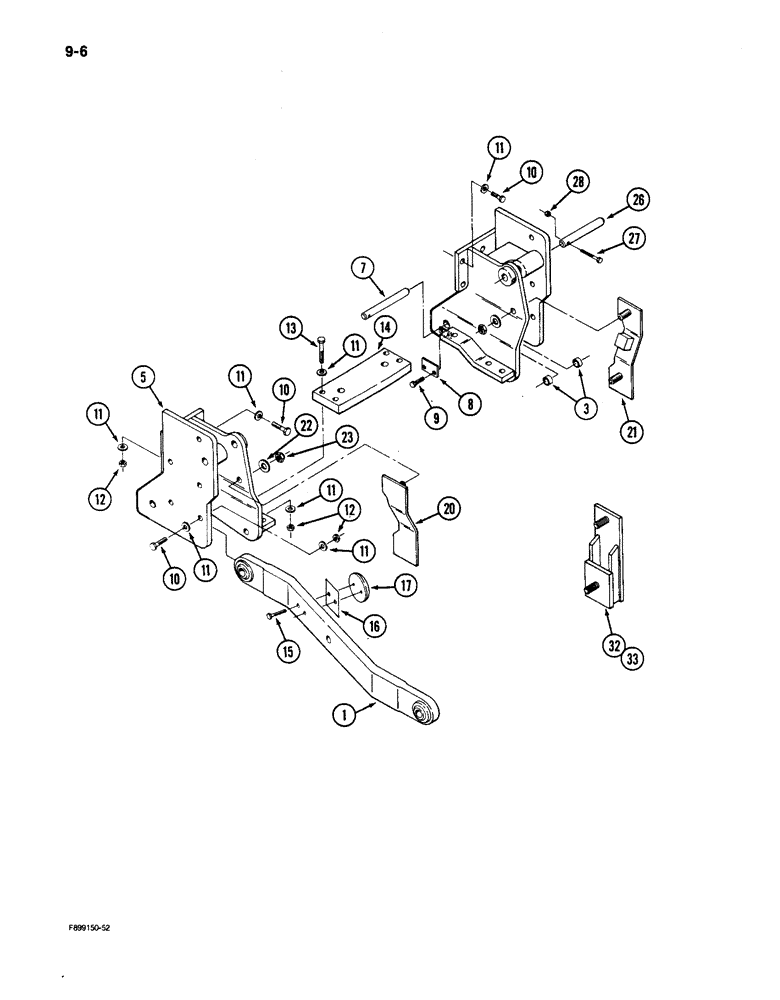

Запчасти Case IH 9150 (9-06) - HITCH LOWER LINK AND MOUNTS (09) - CHASSIS/ATTACHMENTS

1

70-5450T1

ARM

- lower link draft

2шт.

2

70-5447T91

SHOCK ABSORBER

MOUNT - lower link, right, Includes: Ref. 3

1шт.

3

90-6971T1

BUSHING

BEARING - inner race

2шт.

5

70-5446T91

MOUNTING PARTS

MOUNT - lower link, left (Includes Ref. 3, quantity 2)

1шт.

7

70-5501T1

PIN

- draft arm

2шт.

8

70-3082T2

LARGE PLATE

BLOCK - pin retaining

2шт.

9

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

4шт.

10

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

18шт.

11

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

40шт.

12

19-84

NUT,3/4"-10, G5

- hex, 3/4 inch NC

18шт.

13

19-1118

BOLT,Hex, 3/4" - 10 x 3 1/2", Gr 8

- hex, 3/4 NC x 3-1/2 inch, Grade 8

4шт.

14

70-4246T1

BAR

- drawbar hanger, with three point hitch

1шт.

15

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, Grade 8

4шт.

16

70-4633T1

SHIM

- wear plate

1шт.

17

2-2516T2

LARGE PLATE

PLATE - wear

2шт.

20

70-4252T2

PLATE

- wear, left

1шт.

21

70-4487T1

PLATE

- wear, right

1шт.

22

19-5739

WASHER

- flat, hardened, 1 x 2 x 5/32 inch

4шт.

23

19-859

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

26

70-4225T1

PIN

- lift cylinder, bottom

2шт.

27

19-1119

BOLT,3/8" - 16 x 3 1/2", Gr 8

- hex, 3/8 NC x 3-1/2 inch, Grade 8

2шт.

28

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

2шт.

32

70-4410T2

BLOCK

- non-sway, right

1шт.

33

70-4607T1

BLOCK

- non-sway, left

1шт.
