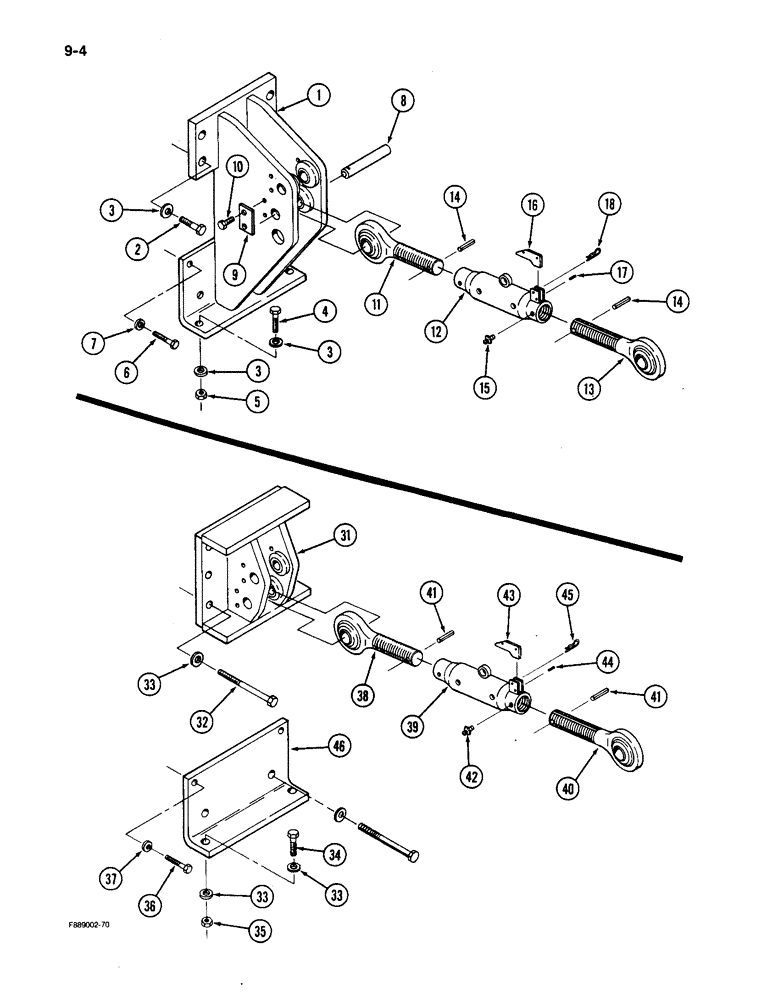

Запчасти Case IH 9150 (9-04) - HITCH UPPER LINK MOUNT, WITHOUT PTO (09) - CHASSIS/ATTACHMENTS

1

70-4247T1

MOUNTING PARTS

MOUNT - upper link (Without PTO)

1шт.

2

19-1087

BOLT,Hex, 3/4" - 10 x 3", Gr 8

- hex, 3/4 NC x 2 inch, Grade 8

4шт.

3

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch

8шт.

4

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8

2шт.

5

19-84

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

6

19-792

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8

2шт.

7

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened

4шт.

8

70-4256T1

PIN

- center link

1шт.

9

70-3082T2

LARGE PLATE

BLOCK - pin retaining

1шт.

10

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

2шт.

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper, Includes: Ref. 11 - 18

1шт.

11

70-4387T1

SCREW

ROD ASSEMBLY - upper link, LH thread

1шт.

12

70-4389T2

TUBE,2.5" OD, 20" Length

TURNBUCKLE - upper link

1шт.

13

70-4388T2

SCREW

ROD ASSEMBLY - upper link, RH thread

1шт.

14

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

2шт.

15

31-1093

FITTING

- grease, 1/4 inch NF

2шт.

16

70-4559T1

HANDLE

- latch

1шт.

17

617057R1

PIN,1/4" x 1", Coiled

2шт.

18

19-5400

PIN

- hair, 1/8 inch

1шт.

31

70-4281T1

MOUNTING PARTS

MOUNT - upper link, with PTO, hitch

1шт.

32

113-791

BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5

- hex, 3/4 NC x 8-1/2 inch, hitch upper link mount, with PTO

6шт.

33

19-5723

WASHER

- flat, hardened, 3/4 x 1-1/2 x 5/32 inch, hitch upper link mount, with PTO

10шт.

34

19-830

BOLT,3/4" - 10 x 2 1/2", Gr 8

- hex, 3/4 NC x 2-1/2 inch, Grade 8, hitch upper link mount, with PTO

2шт.

35

19-84

NUT,3/4"-10, G5

- hex, 3/4 inch NC, hitch upper link mount, with PTO

2шт.

36

19-792

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, Grade 8, hitch upper link mount, with PTO

2шт.

37

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened, hitch upper link mount, with PTO

2шт.

70-4221T92

LINK ASSY.

LINK ASSEMBLY - upper, hitch mount, with PTO, Includes: Ref. 38 - 45

1шт.

38

70-4387T1

SCREW

ROD ASSEMBLY - upper link, LH thread, hitch mount, with PTO

1шт.

39

70-4389T2

TUBE,2.5" OD, 20" Length

TURNBUCKLE - upper link, hitch mount, with PTO

1шт.

40

70-4388T2

SCREW

ROD ASSEMBLY - upper link, RH thread, hitch mount, with PTO

1шт.

41

19-5669

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, , hitch upper link mount, with PTO 1/4" x 1 1/2", Slotted

2шт.

42

31-1093

FITTING

- grease, 1/4 inch NF, hitch upper link mount, with PTO

2шт.

43

70-4559T1

HANDLE

- latch, hitch upper link mount, with PTO

1шт.

44

617057R1

PIN,1/4" x 1", Coiled

Hitch upper link mount, with PTO 1/4" x 1", Coiled

2шт.

45

19-5400

PIN

- hair, 1/8 inch, hitch upper link mount, with PTO

1шт.

46

70-4251T2

LARGE PLATE

PLATE - spacer, hitch upper link mount, with PTO

1шт.
