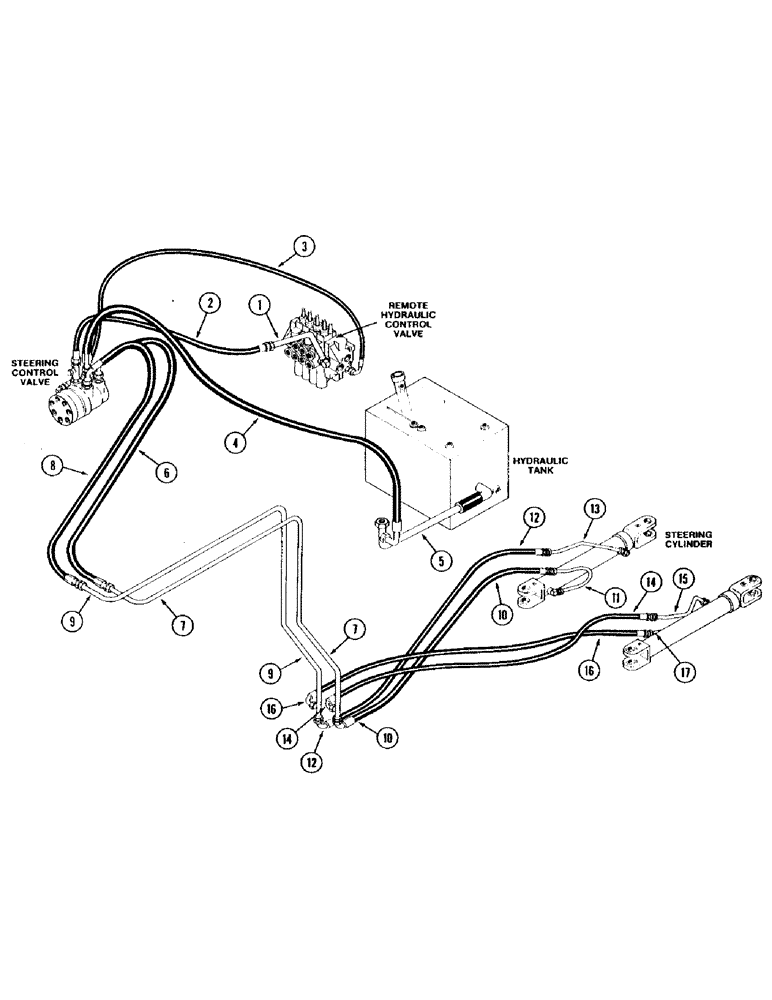

Запчасти Case IH 9150 (1-16) - PICTORIAL INDEX, STEERING HYDRAULICS (00) - PICTORIAL INDEX

1

Steering Supply Tube, Page 5-9

1шт.

2

Steering Supply Hose, Page 5-9

1шт.

3

Steering Pressure Sensing Hose, Page 5-9

1шт.

4

Steering Drain Hose, Page 5-9

1шт.

5

Gear Pump Drain Tube, Page 8-3, 8-5

1шт.

6

Right Turn Steering Hose, Page 5-11

1шт.

7

Right Turn Steering Tibe. Page 5-11

1шт.

8

Left Turn Steering Hose, Page 5-11

1шт.

9

Left Turn Steering Tube, Page 5-11

1шт.

10

Right Turn Steering Hose, Page 5-11

1шт.

11

Right Turn Steering Tube, Page 5-11

1шт.

12

Left Turn Steering Hose, Page 5-11

1шт.

13

Left Turn Steering Tube, Page 5-11

1шт.

14

Left Turn Steering Hose, Page 5-11

1шт.

15

Left Turn Steering Tube, Page 5-11

1шт.

16

Right Turn Steering Hose, Page 5-11

1шт.

17

Right Turn Steering Tube, Page 5-11

1шт.
