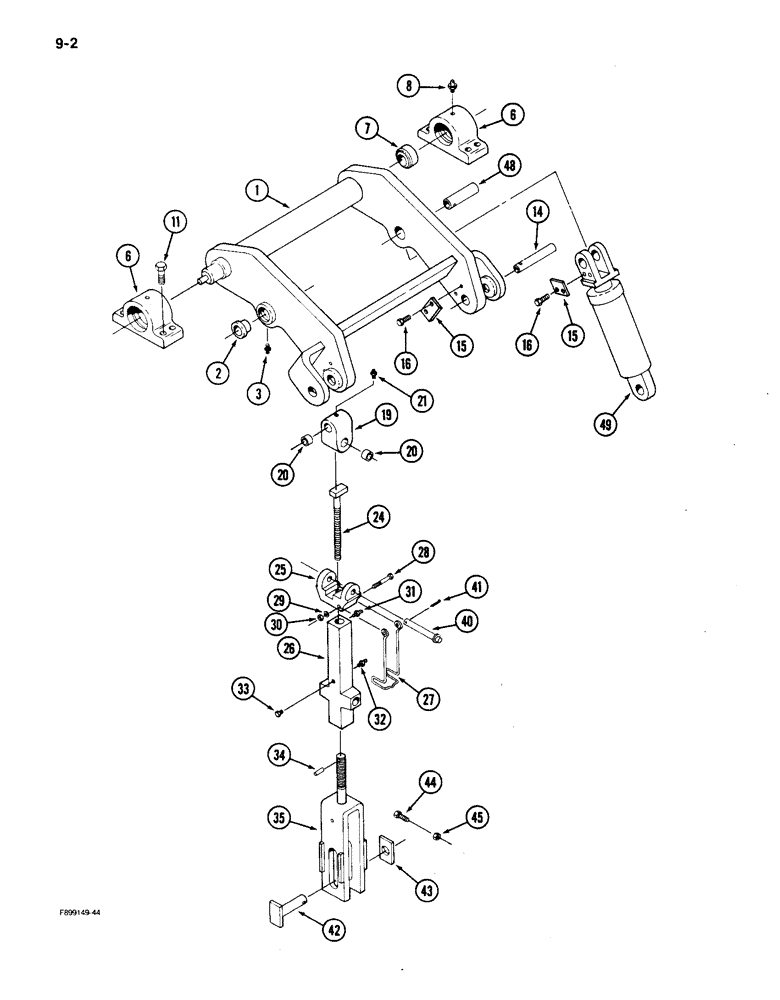

Запчасти Case IH 9150 (9-02) - HITCH ROCKERSHAFT (09) - CHASSIS/ATTACHMENTS

35-1776T91

KIT - electronic controlled three point hitch, when tractor factory equipped with PTO (Machinery Item)

1шт.

35-1779T91

KIT - electronic controlled three point hitch, when tractor factory equipped with PTO (Machinery Item)

1шт.

35-1762T91

KIT

- manual three point hitch, when tractor is factory equipped with PTO (Machinery Item)

1шт.

35-1765T91

KIT

- manual three point hitch, when tractor is not factory equipped with PTO (Machinery Item)

1шт.

1

70-5351T91

ROCKER

SHAFT ASSEMBLY - hitch, Includes: Ref. 2 and 3

1шт.

2

70-4274T2

BUSHING

- cylinder pivot

2шт.

3

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

6

1-4855T2

BLOCK

BEARING - pillow block, Includes: Ref. 7 and 8

2шт.

7

D51018

SPHERICAL BEARING,57.15mm ID x 90.49mm OD x 50.01mm W

BEARING - self aligning

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

11

19-5426

SCREW,Hex, 7/8" - 9 x 2 3/4", Gr 8

BOLT - hex, 7/8 NC x 2-3/4 inch, Grade 8

8шт.

14

70-5411T1

PIN

- lift link

2шт.

15

70-3082T2

LARGE PLATE

BLOCK - pin retaining

4шт.

16

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

8шт.

19

70-5495T91

JOINT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 20 and 21

2шт.

20

70-5497T1

RING

BUSHING - lift link swivel (Replaces 70-5494T1)

4шт.

21

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

70-5350T91

ARM, LIFT

LINK ASSEMBLY - lift, Includes: Ref. 24 - 35

2шт.

24

70-5410T1

STEM

ROD - leveling

1шт.

25

70-5496T1

FORK

YOKE - lift link

1шт.

26

149836C2

TURNBUCKLE

- lift link

1шт.

27

123464C1

CLAMP

- lock, turnbuckle

1шт.

28

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

29

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

30

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex, lock, 3/8 inch NC

1шт.

31

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

32

31-95

FITTING

- grease, 1/4 inch PT

1шт.

33

31-26

NIPPLE, LUBE

PLUG - pipe, 1/4 inch PT

1шт.

34

25155R1

PIN,1/4" x 1 1/4", Coiled

1шт.

35

70-5349T1

CLEVIS

- hitch

1шт.

40

70-5471T1

PIN

- headed, lift link

2шт.

41

132-348

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

2шт.

42

70-5025T1

PIN

- lift link, lower

2шт.

43

70-4425T1

LARGE PLATE

PLATE - pin retaining

2шт.

44

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

45

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

2шт.

48

70-4601T1

PIN

- lift cylinder - top

2шт.

49

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift (See Figure 8-34)

2шт.

20

70-5497T1

RING

BUSHING - lift link swivel

4шт.
