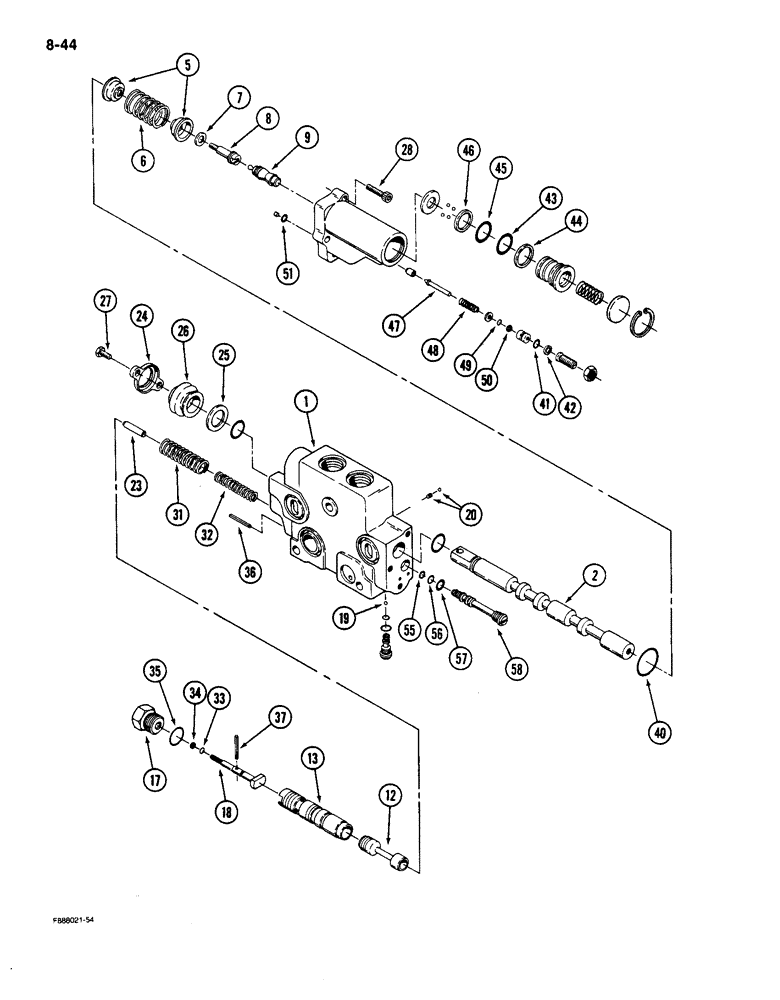

Запчасти Case IH 9150 (8-44) - HYDRAULIC REMOTE VALVE SECTION, FIRST, SECOND, THIRD AND FOURTH WITH FLOAT (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-2302T91
ASSEMBLY
VALVE ASSEMBLY - remote, with float, Includes: Ref. 1 - 1 - 58 and 62 - 79 on Fig. 8-46
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
5
50-1774T1
RETAINER
- spring
2шт.
6
50-1773T1
SPRING
- centering, spool
1шт.
7
50-1772T1
SPACER
- detent
1шт.
8
50-1863T1
COUPLING, BREAK AWAY
COUPLING - pivot, detent
1шт.
9
NSS
NOT SOLD SEPARAT
SHAFT - detent
1шт.
12
50-2374T1
SPOOL
- flow control
1шт.
13
50-2375T1
TUBE
- spool, flow control
1шт.
17
50-2376T1
PLUG
- adjusting, flow control
1шт.
18
50-2377T1
SHAFT
- adjusting, flow control
1шт.
19
104916
BALL BEARING,0.1875 mm OD
- steel
1шт.
20
50-2566T1
PLUG
- hole, expansion
1шт.
23
50-2385T1
GUIDE PIN
PIN - guide
1шт.
24
A47196
RETAINER
- dust guard
1шт.
25
50-2493T1
FILTER
- dust
1шт.
26
A47188
COVER
BOOT - dust
1шт.
27
113-2
BOLT,Hex, 1/4" - 20 x 5/8", Gr 5
2шт.
28
19-960
HEX SOC SCREW,1/4"-20 x 1"
BOLT - socket head, 1/4 NC x 1 inch, Grade 8
3шт.
50-2386T1
SEAL KIT
SEAL KIT - flow control, Includes: Ref. 31 - 37
1шт.
31
NSS
NOT SOLD SEPARAT
SPRING - flow control, outer
1шт.
32
NSS
NOT SOLD SEPARAT
SPRING - flow control, inner
1шт.
33
NSS
NOT SOLD SEPARAT
O-RING - seal, shaft
1шт.
34
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
35
NSS
NOT SOLD SEPARAT
O-RING - plug
1шт.
36
NSS
NOT SOLD SEPARAT
PIN - spring, control stop
1шт.
37
NSS
NOT SOLD SEPARAT
PIN - spring, control stop
1шт.
50-2387T1
SEAL KIT
SEAL KIT - detent, Includes: Ref. 40 - 58
1шт.
40
NSS
NOT SOLD SEPARAT
O-RING - seal, detent housing
1шт.
41
NSS
NOT SOLD SEPARAT
O-RING - relief
1шт.
42
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
43
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
44
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
45
NSS
NOT SOLD SEPARAT
O-RING - seal, kickout piston
1шт.
46
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
47
NSS
NOT SOLD SEPARAT
POPPET - relief
1шт.
48
NSS
NOT SOLD SEPARAT
SPRING - poppet
1шт.
49
NSS
NOT SOLD SEPARAT
O-RING - seal, poppet
1шт.
50
NSS
NOT SOLD SEPARAT
RING - backup
1шт.
51
NSS
NOT SOLD SEPARAT
O-RING - housing
2шт.
50-1669T91
HOUSING
SHUTTLE ASSEMBLY - primary
1шт.
50-1655T1
SEAL KIT
SEAL KIT - primary shuttle, Includes: Ref. 55 - 57
1шт.
55
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
56
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
57
NSS
NOT SOLD SEPARAT
O-RING - seal
1шт.
58
NSS
NOT SOLD SEPARAT
SHUTTLE ASSEMBLY - primary
1шт.
Выбрано товаров: 47
