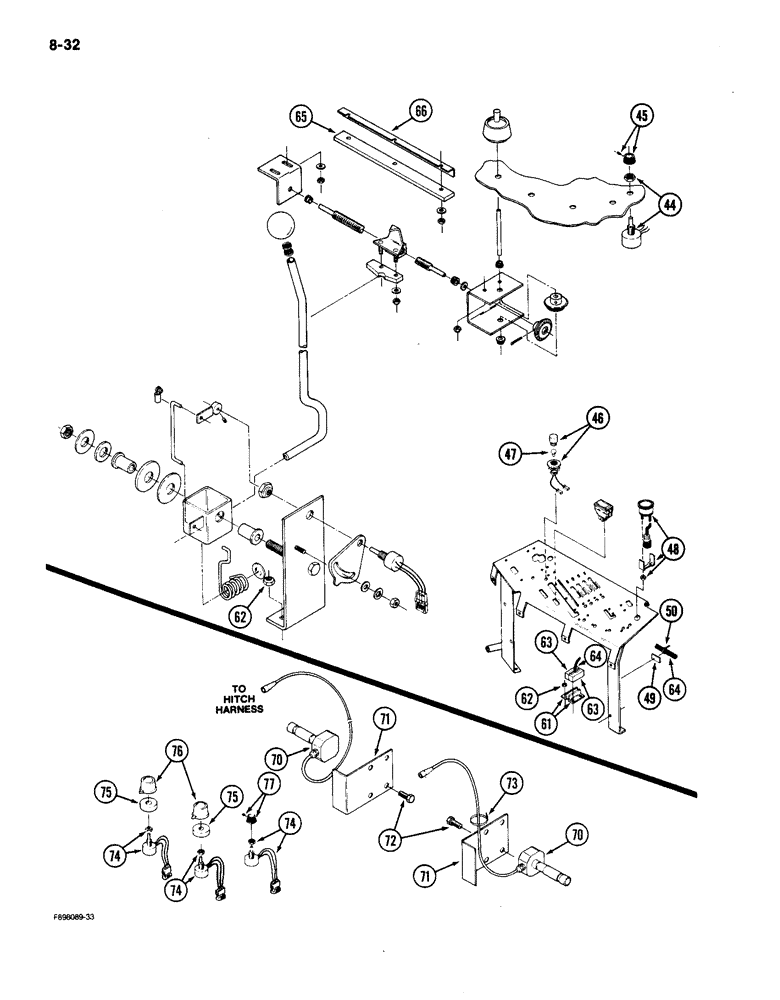

Запчасти Case IH 9150 (8-32) - THREE POINT HITCH CONTROLS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

44

A186061

POTENTIOMETER,10,000 Ohm, 8V

Lower Rate 10,000 Ohm, 8V

1шт.

45

A186263

KNOB

Lower Rate

1шт.

46

60-6111T1

INDICATOR

LIGHT ASSEMBLY - indicator

1шт.

47

23731R1

BULB,C2F, #1893, 14V

- lamp, No. 1893

1шт.

48

1983331C1

GAUGE

- display, seven segment

1шт.

49

64-78T92

LIGHT

MOUNT - strap, adhesive backed

1шт.

50

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

61

60-6065T1

ANGLE BAR

ANGLE - retaining, foam

2шт.

62

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

6шт.

63

60-6066T1

FOAM

- sealing

2шт.

64

60-6022T2

HARNESS

- electronic depth control

1шт.

65

60-3954T1

LARGE PLATE

WEARSTRIP - lever

1шт.

66

60-4276T1

SUPPORT

BRACKET - stiffener, console

1шт.

35-1743T91

KIT

- draft sense, Includes: Ref. 70 - 77

1шт.

70

1964916C1

PIN

- lower link, draft sense, three point hitch, electronic controlled, ( if equipped)

2шт.

71

70-5285T1

LARGE PLATE

PLATE - retainer, draft sense pin, three point hitch, electronic controlled, ( if equipped)

2шт.

72

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8, three point hitch , electronic controlled, draft sense ( if equipped0

4шт.

73

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long, three point hitch, electronic controlled, draft sense, ( if equipped)

1шт.

74

A186061

POTENTIOMETER,10,000 Ohm, 8V

travel, Response Speed and Load, Three Point Hitch, Electronic Controlled, Draft Sense, if Equipped 10,000 Ohm, 8V

3шт.

75

60-4919T1

WASHER

- foam, three point hitch, electronic controlled, draft sense, ( if equipped)

2шт.

76

60-3958T1

BUTTON

Knob, Potentiometer, Travel and Load, Three Point Hitch, Electronic Controlled, Draft Sense, if Equipped

2шт.

77

A186263

KNOB

Response Speed, Three Point Hitch, Electronic Controlled, Draft Sense, if equipped

1шт.
