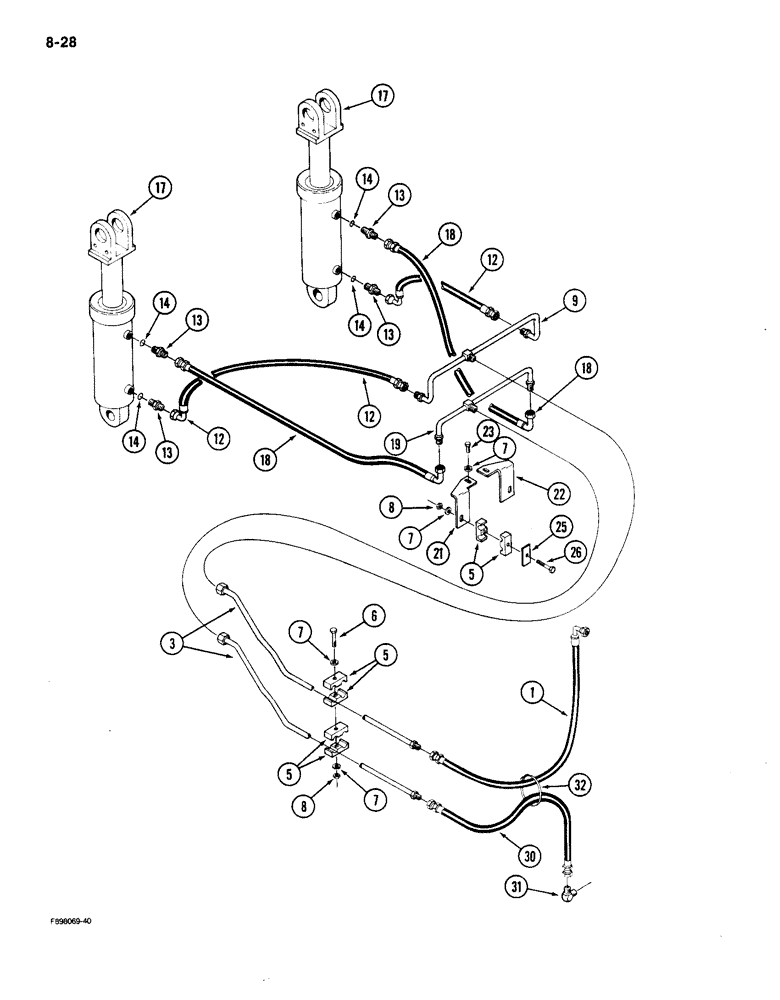

Запчасти Case IH 9150 (8-28) - THREE POINT HITCH HYDRAULICS, LIFT CYLINDER AND LINES, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

31-2653

HOSE ASSY.

HOSE - solenoid valve to tube, 54 inch

1шт.

3

50-2906T1

TUBE ASSY.

TUBE -, Serial Range: hose-tube

2шт.

5

50-2531T1

CLAMP

- split halves

12шт.

6

19-724T1

BOLT

- hex, 5/16 NC x 2-1/2 inch (With PTO)

2шт.

6

19-188

BOLT,Hex, 5/16" - 18 x 3 1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch (Without PTO)

2шт.

7

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 5/64 inch

8шт.

8

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

9

50-2907T1

TUBE ASSY.

TUBE - tube to hose, cylinder lift

1шт.

12

31-2652

HOSE ASSY.

HOSE - tube to cylinder, lift, 26-1/2 inch

2шт.

13

31-329

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4 inch thread, Includes: Ref. 14

4шт.

14

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

4шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Figure 8-34)

2шт.

18

31-2651

HOSE

- cylinder to tube, drain, 28 inch

2шт.

19

50-2908T1

TUBE ASSY.

TUBE -, Serial Range: hose-tube

1шт.

21

50-2911T1

BRACKET

- support, clamp

1шт.

22

50-2910T1

BRACKET

- support, clamp

1шт.

23

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

2шт.

25

50-2532T1

PLATE

COVER - clamp

2шт.

26

19-9

BOLT,5/16" - 18 x 2", Gr 5

- hex, 5/16 NC x 2 inch

2шт.

30

18-544

HOSE

- tube to hydraulic tank, 39 inch

1шт.

31

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 PT x 3/4 inch thread

1шт.

32

31-2600

STRAP

- nylon

1шт.
