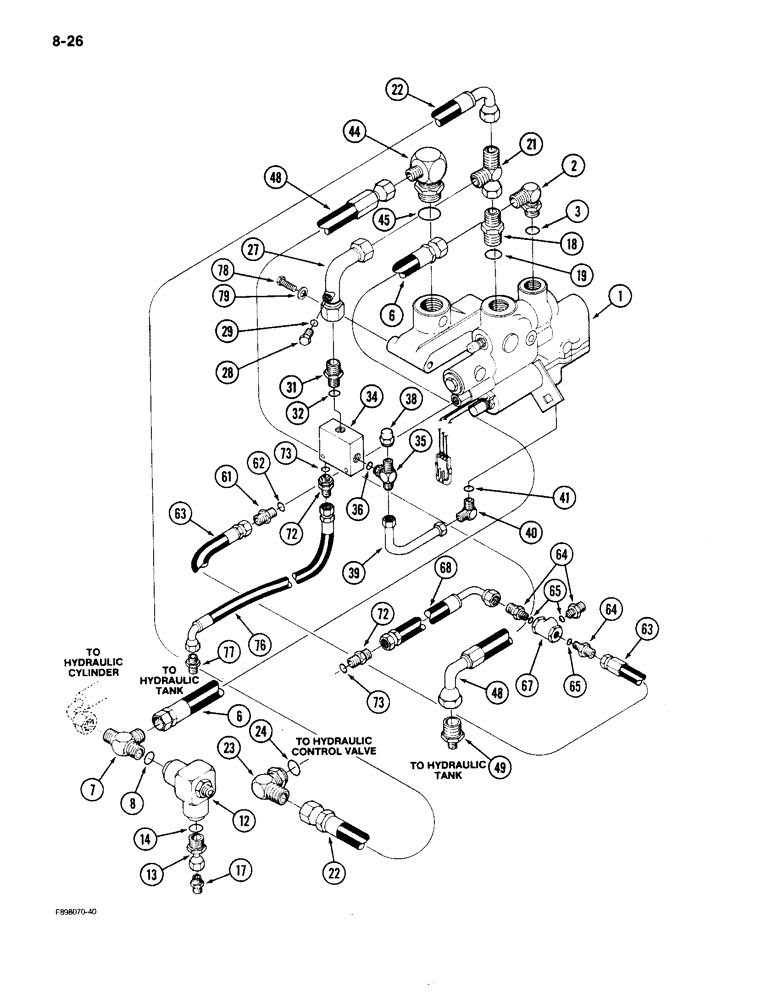

Запчасти Case IH 9150 (8-26) - THREE POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - solenoid (See Figure 8-36)

1шт.

2

18-569

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 7/8-14 inch thread, Includes: Ref. 3

1шт.

3

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

6

31-2841

HOSE

- valve to relief valve, 20 inch

1шт.

7

18-586

TEE,7/8"-14, 37 Degree x 7/8"-14, O-Ring Run

- adjustable, 7/8 inch thread, Includes: Ref. 8

1шт.

8

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

12

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-38)

1шт.

13

31-117

ADAPTER

- straight, 1/2 inch PT x 7/8-14 inch thread, Includes: Ref. 14

1шт.

14

31-644

O-RING,10-1, 90 Duro, .755" ID x .097" Thk

- 3/4 x 3/32 inch

1шт.

17

31-345

FITTING

CONNECTOR - straight, 1/2 inch PT

1шт.

18

18-623

HYD CONNECTOR,7/8"-14, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-1/16 x 7/8 inch thread, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- 7/8-14 inch flare branch x flare x swivel

1шт.

22

31-2853

HOSE

- valve to control valve, 14"

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adj, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

27

50-3186T1

HYD TUBE

TUBE - valve to pressure reducing valve

1шт.

28

1-3213

PLUG

- hex, 9/16-18 inch thread, Includes: Ref. 29

1шт.

29

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

31-421

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/8 inch thread, Includes: Ref. 32

1шт.

32

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing (See Figure 8-38)

1шт.

35

18-585

TEE,9/16"-18, 37 Degree x 9/16"-18, O-Ring Br

- adjustable, 9/16-18 inch thread, Includes: Ref. 36

1шт.

36

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16 inch NF

1шт.

39

50-3111T1

HYD TUBE

TUBE - pressure reducing, Serial Range: valve-valve

1шт.

40

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, adj, 9/16-18 inch flare x O-ring boss, Includes: Ref. 41

1шт.

41

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

31-394

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 5/16"-12, O-Ring

- 90 degree adjustable, 1-5/16-12 x 1-1/16 inch thread, Includes: Ref. 45

1шт.

45

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

48

31-2713

HOSE

- valve to hydraulic tank, 20 inch

1шт.

49

31-666

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 1/2 PT x 1-1/16-12 inch thread

1шт.

61

674681R1

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 1/2-20 x 9/16-18 inch thread

1шт.

62

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

63

31-2861

HOSE ASSY.

HOSE - valve to shuttle valve, 27"

1шт.

64

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - short, 9/16-18 x 7/16-20 inch thread, Includes: Ref. 65

3шт.

65

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

3шт.

67

31-1778

VALVE

- shuttle

1шт.

68

31-2606

HOSE ASSY.

HOSE - shuttle valve to control valve, 18 inch

1шт.

72

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 inch thread, Includes: Ref. 73

2шт.

73

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

76

31-1799

HOSE

- pressure reducing valve to hydraulic tank, 18 inch

1шт.

77

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 1/2 PT x 9/16 inch thread

1шт.

78

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

79

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

2шт.

35-1776T91

KIT - electronic controlled three point hitch, when tractor is equipped with a PTO system (Machinery item)

1шт.

35-1779T91

KIT - electronic controlled three point hitch, when tractor is not equipped with a PTO system (Machinery item)

1шт.
