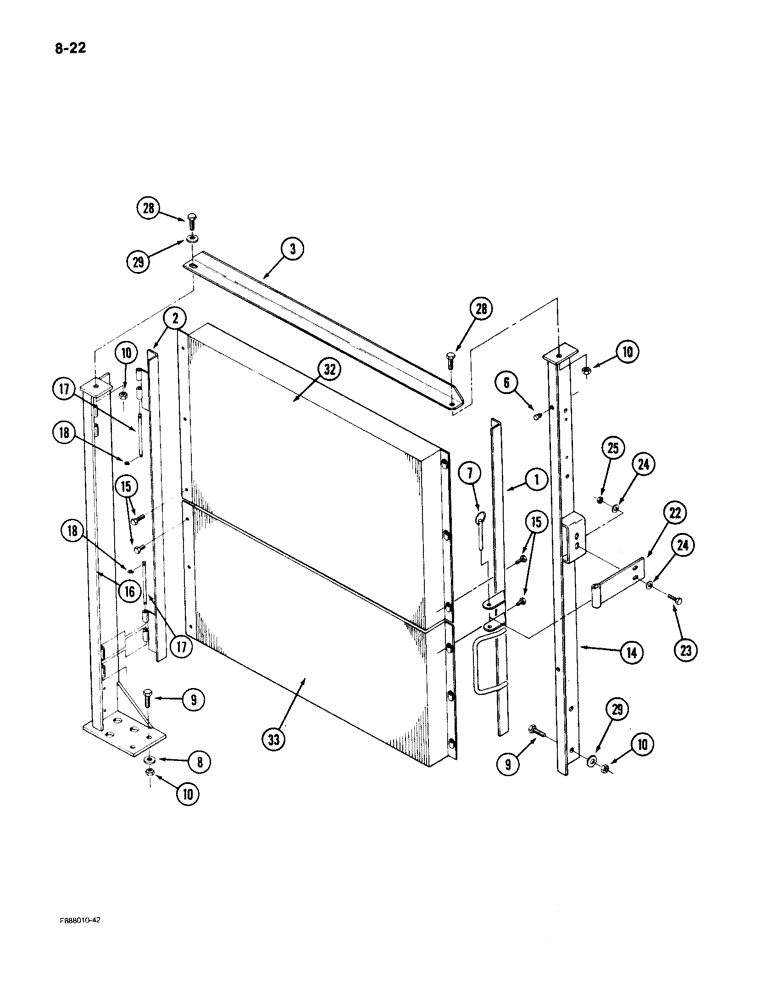

Запчасти Case IH 9150 (8-22) - HYDRAULIC OIL COOLER MOUNTING (08) - HYDRAULICS

1

90-6610T1

BRACE

- cooler mounting, with handle

1шт.

2

90-5697T1

BRACE

- cooler mounting, with hinge

1шт.

3

90-5922T2

ANGLE

- top brace

1шт.

6

31-2642

BUMPER

- rubber

2шт.

7

19-5774

PIN

- latch, 3/8 x 2-1/2 inch

1шт.

8

19-1059

WASHER

- flat, hardened, 3/8 x 1-1/4 x 7/64 inch

2шт.

9

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

10

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

6шт.

14

90-6611T1

MOUNTING PARTS

MOUNT - cooler, side support

1шт.

15

19-876

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

12шт.

16

90-4683T1

MOUNTING PARTS

MOUNT - cooler, side support, hinged

1шт.

17

70-1996T2

PIN

- hinge

2шт.

18

70-2600T1

RING, SNAP

RING - retaining, hinge pin

4шт.

22

90-6509T1

LATCH

- cooler, bolt on

1шт.

23

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

24

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

4шт.

25

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.

28

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

29

19-107

WASHER

- flat, 3/8 x 1 x 5/64 inch

3шт.

32

90-6708T1

OIL COOLER

COOLER - oil, hydraulic

1шт.

33

REF

INSTRUCTION

CONDENSER - air conditioning (See Figure 9-96)

1шт.
