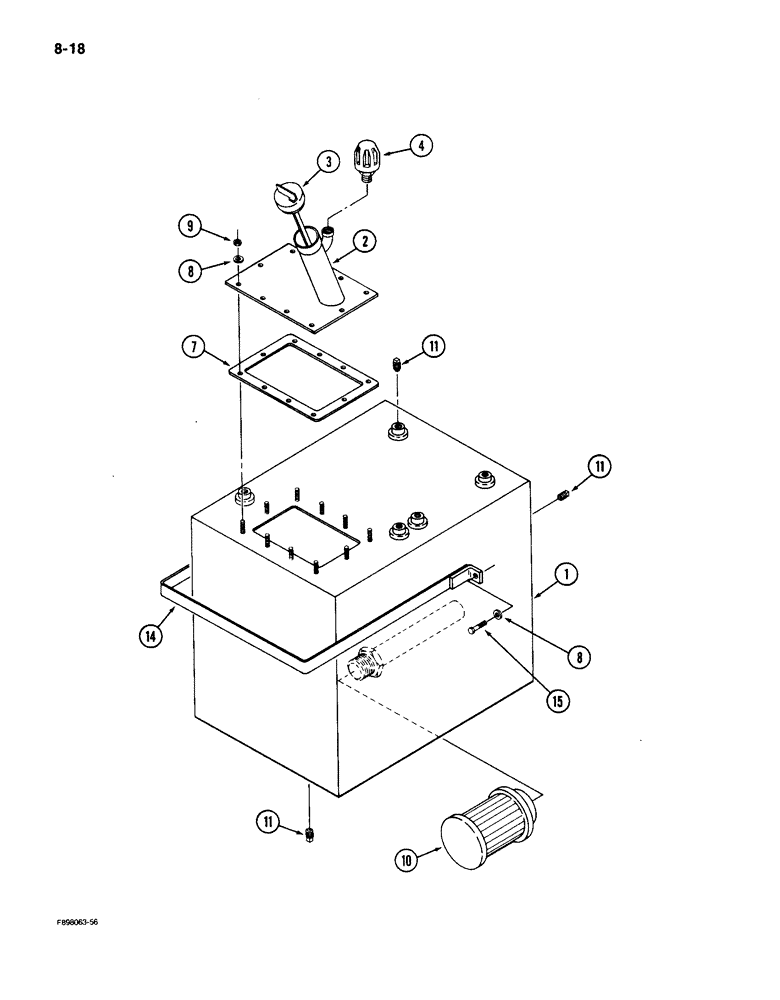

Запчасти Case IH 9150 (8-18) - HYDRAULIC TANK (08) - HYDRAULICS

1

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic

1шт.

2

50-3224T1

PLATE

- cover

1шт.

3

50-2558T1

DIPSTICK

- oil fill

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

7

50-2429T1

GASKET

- cover

1шт.

8

25709R1

WASHER

- flat, 13/32 x 13/16 x 3/32 inch, hardened

1шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

10шт.

10

50-2029T1

FILTER SCREEN

FILTER - suction, screen

1шт.

11

31-35

PLUG

- pipe, square head, 1/2 inch PT

1шт.

14

50-3060T1

BAND

- mounting

1шт.

15

113-241

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.
