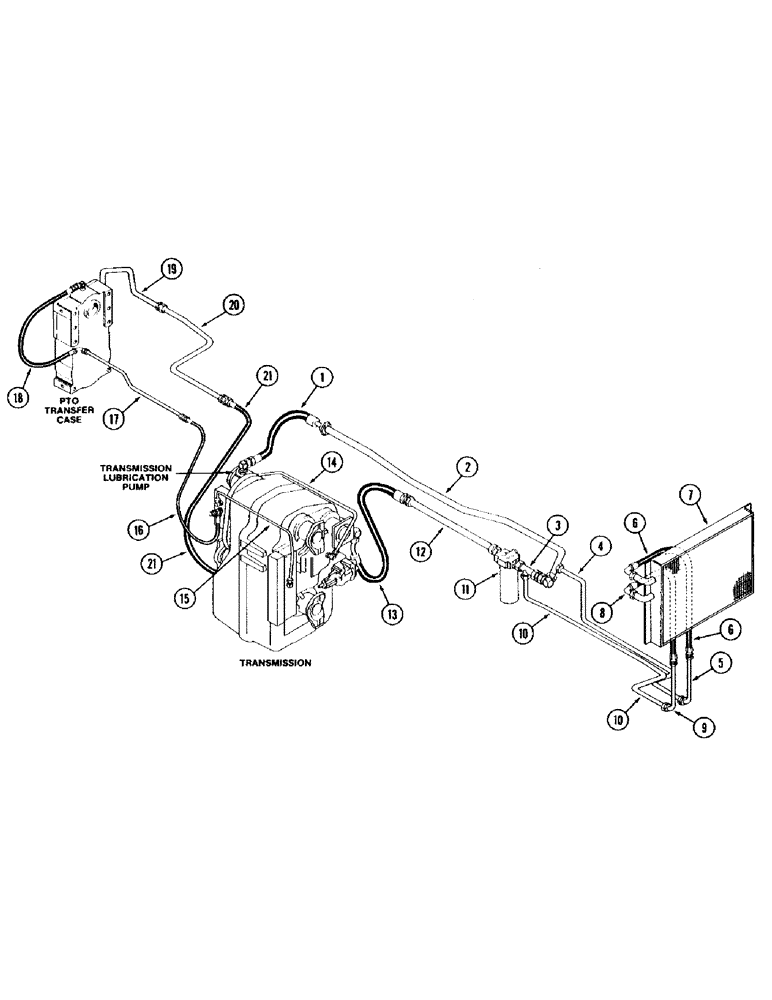

Запчасти Case IH 9150 (1-12) - PICTORIAL INDEX, LUBRICATION HYDRAULICS (00) - PICTORIAL INDEX

1

Transmission Lubrication Supply Hose, Page 6-43

1шт.

2

Transmission Lubrication Supply Tube, Page 6-43

1шт.

3

Transmission Lubrication Supply Tube, Page 6-43

1шт.

4

Oil Cooler Supply Tube, Page 6-43

1шт.

5

Oil Cooler Supply Tube, Page 6-43

1шт.

6

Oil Cooler Supply Hose, Page 6-43

1шт.

7

Oil Cooler, Page 8-7

1шт.

8

Oil Cooler Return Hose, Page 6-43

1шт.

9

Oil Cooler Return Tube, Page 6-43

1шт.

10

Oil Cooler Return Tube, Page 6-43

1шт.

11

Oil Filter, Page 8-21

1шт.

12

Transmission Lubrication Supply Tube, Page 6-43

1шт.

13

Transmission Lubrication Supply Hose, Page 6-43

1шт.

14

Transmission Lubrication Tube, Page 6-45

1шт.

15

Transmission Lubrication Tube, Page 6-45

1шт.

16

Transfer Case Lubrication Supply Hose, Page 6-45

1шт.

17

Transfer Case Lubrication Supply Tube, Page 6-45

1шт.

18

Transfer Case Lubrication Supply Hose, Page 6-45

1шт.

19

Transfer Case Lubrication Return Tube, Page 6-45

1шт.

20

Transfer Case Lubrication Return Tube, Page 6-45

1шт.

21

Transfer Case Lubrication Return Hose, Page 6-45

1шт.
