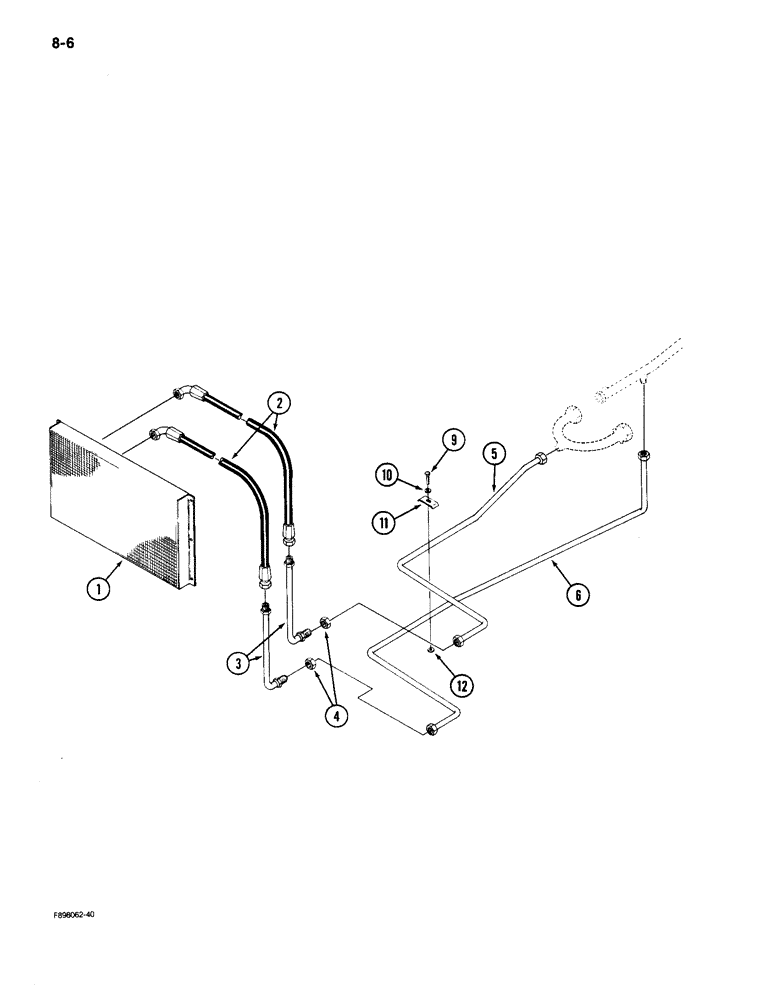

Запчасти Case IH 9150 (8-06) - HYDRAULIC SYSTEM, OIL COOLER SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

COOLER - oil, hydraulic (See Figure 8-22)

1шт.

2

31-2473

HOSE ASSY.

HOSE - oil, Serial Range: cooler-tube

2шт.

3

90-5968T1

TUBE,0.75" OD x 15.45", 3.71" L

- hose to tube

2шт.

4

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, bulkhead, 1-1/16 inch NF

2шт.

5

50-3198T1

TUBE ASSY.

TUBE - cooler supply

1шт.

6

50-3197T1

TUBE

- from, Serial Range: cooler-tube

1шт.

9

19-39

BOLT,5/16" - 18 x 1 3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

10

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

1шт.

11

90-5971T1

CLAMP

- tube retaining

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.
