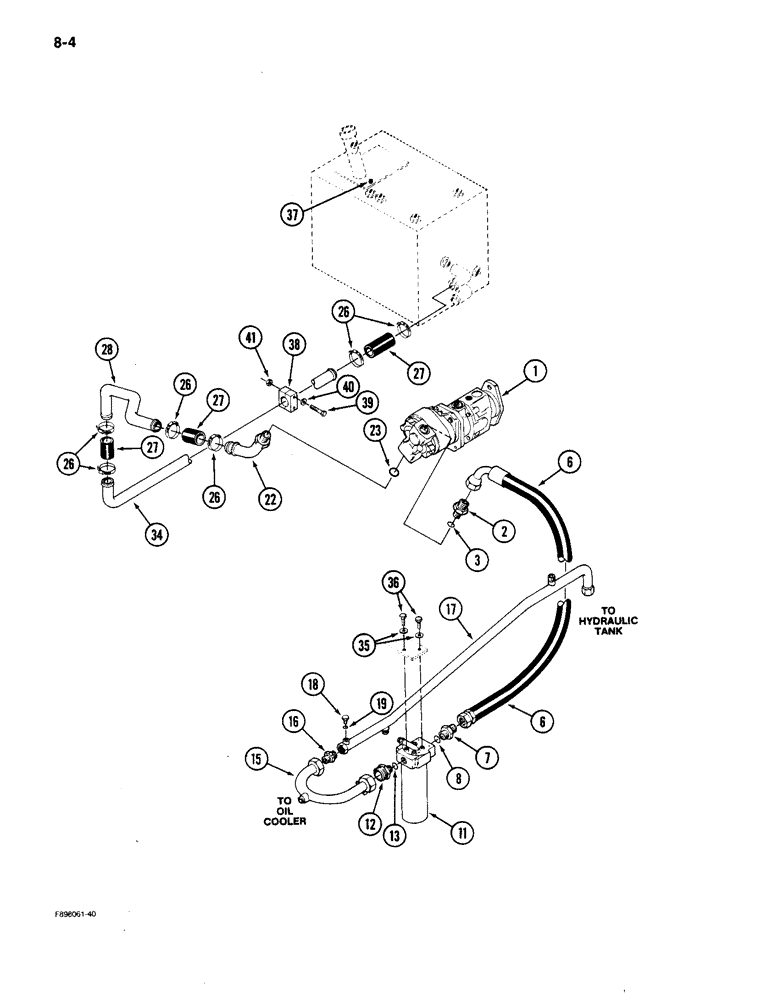

Запчасти Case IH 9150 (8-04) - HYDRAULIC SYSTEM, PUMP TO FILTER (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-10)

1шт.

2

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

ADAPTER - straight, 1-1/16-12 x 1-5/16-12 inch thread, Includes: Ref. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch wide

1шт.

6

31-2862

HOSE,25.4mm ID x 1168mm L

-, Serial Range: pump-filter

1шт.

7

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - straight, 1-5/16-12 inch thread, Includes: Ref. 8

1шт.

8

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

11

REF

INSTRUCTION

FILTER ASSEMBLY - hydraulic (See Figure 8-20)

1шт.

12

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/16 x 1-5/8 inch thread, Includes: Ref. 13

1шт.

13

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

15

50-3196T1

TUBE ASSY.

TUBE - filter to check valve

1шт.

16

50-2565T1

VALVE

ASSEMBLY - check

1шт.

17

50-3199T1

HYD TUBE

TUBE - check valve to check valve

1шт.

18

1-3213

PLUG

- o-ring, Includes: Ref. 19

1шт.

19

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

22

31-2529

TUBE

ELBOW - adjustable, 45 degree, 1-5/8 inch x 1-1/2 inch, Includes: Ref. 23

1шт.

23

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

26

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

6шт.

27

1-4571

HOSE

- tube to tube, 1-1/2 x 4 inch

3шт.

28

50-2838T2

TUBE

-, Serial Range: pump-tank

1шт.

34

50-2840T1

TUBE

-, Serial Range: tube-tank

1шт.

35

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

37

31-35

PLUG

- pipe, square head, 1/2 inch PT

2шт.

38

50-2884T1

CLAMP

- tube, set

1шт.

39

19-416

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

40

19-105

WASHER,1/4", SAE

- flat, 1/4 inch

2шт.

41

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.
