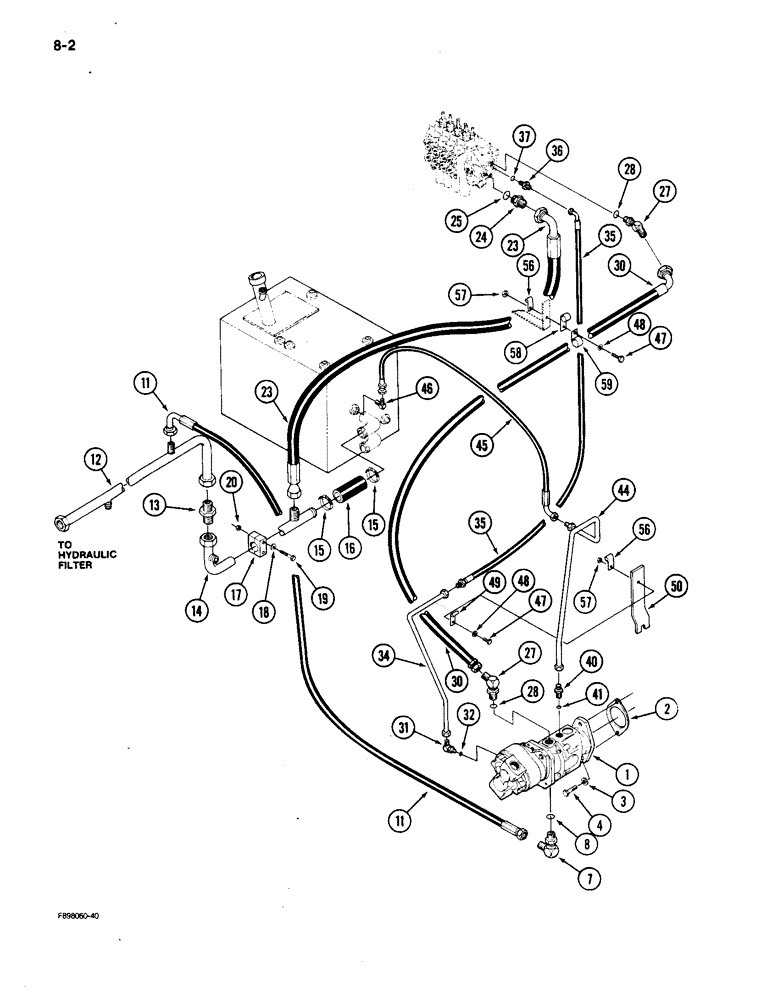

Запчасти Case IH 9150 (8-02) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

PUMP ASSEMBLY - hydraulic (See Figure 8-10)

1шт.

2

18-1176T1

GASKET

- pump (Replaces 18-1186T91)

1шт.

3

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, hardened

2шт.

4

24861R1

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8

- hex, 1/2 NC x 1-1/2 inch

2шт.

7

218-5275

ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

- 90 degree, adjustable, Includes: Ref. 8

1шт.

8

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

11

31-2860

HOSE ASSY.

HOSE - tube to pump, 22 inch

1шт.

12

50-3199T1

HYD TUBE

TUBE - supply, tube to check valve

1шт.

13

50-2565T1

VALVE

ASSEMBLY - check

1шт.

14

50-3101T1

HYD TUBE

TUBE - supply, tank to check valve

1шт.

15

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 x 2-5/8 inch

2шт.

16

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-43482T1 and, Serial Range: cut-length)

1шт.

17

50-2884T1

CLAMP

- tube, set

1шт.

18

25707R1

WASHER,.281" x 5/8" x .075", HDN

- flat, hardened

2шт.

19

19-416

BOLT,Hex, 1/4" - 20 x 3", Gr 5

- hex, 1/4 NC x 3 inch

2шт.

20

111626C1

NUT

- hex lock, 1/4 inch NC

2шт.

23

31-2126

HOSE

- valve to tube, 27 inch

1шт.

24

9410207

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

CONNECTOR - short, 1-5/16 flared x 1-5/16 inch O-ring boss, Includes: Ref. 25

1шт.

25

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-3/16 x 1/8 inch

1шт.

27

9411109

ELBOW,45 Degree, 1 5/16"-12 x 1 5/16"-12, O-Ring

- adjustable, 45 degree, 1-5/16 inch, Includes: Ref. 28

2шт.

28

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

2шт.

30

31-2854

HOSE ASSY.

HOSE - pump to valve, 48 inch

1шт.

31

31-1753

ELBOW,90 Degree, 9/16"-18, 37 Degree x 7/16"-20, O-Ring

- adjustable, 90 degree, 7/16 x 9/16 inch thread, Includes: Ref. 32

1шт.

32

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

34

50-3231T1

HYD TUBE

TUBE - pump, Serial Range: compensator-hose

1шт.

35

31-2863

HOSE ASSY.

HOSE - compensator tube to valve, 18 inch (Without three point hitch)

1шт.

35

31-2853

HOSE

- compensator tube to valve, 18 inch (With three point hitch)

1шт.

36

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR - straight, 9/16 inch thread, Includes: Ref. 37

1шт.

37

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

31-421

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 9/16 x 7/8 inch thread, Includes: Ref. 41

1шт.

41

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

50-3232T1

HYD TUBE

TUBE -, Serial Range: pump-hose

1шт.

45

31-2624

HOSE ASSY.

HOSE -, Serial Range: tube-tank

1шт.

46

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

47

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

48

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

2шт.

49

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

1шт.

50

50-2883T2

BRACKET

- support, clamp

1шт.

56

31-2488

CLAMP

- tube

2шт.

57

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

58

31-1348

CLAMP

- tube

1шт.

59

31-1349

MOUNTING CLIP

CLAMP - tube

1шт.
