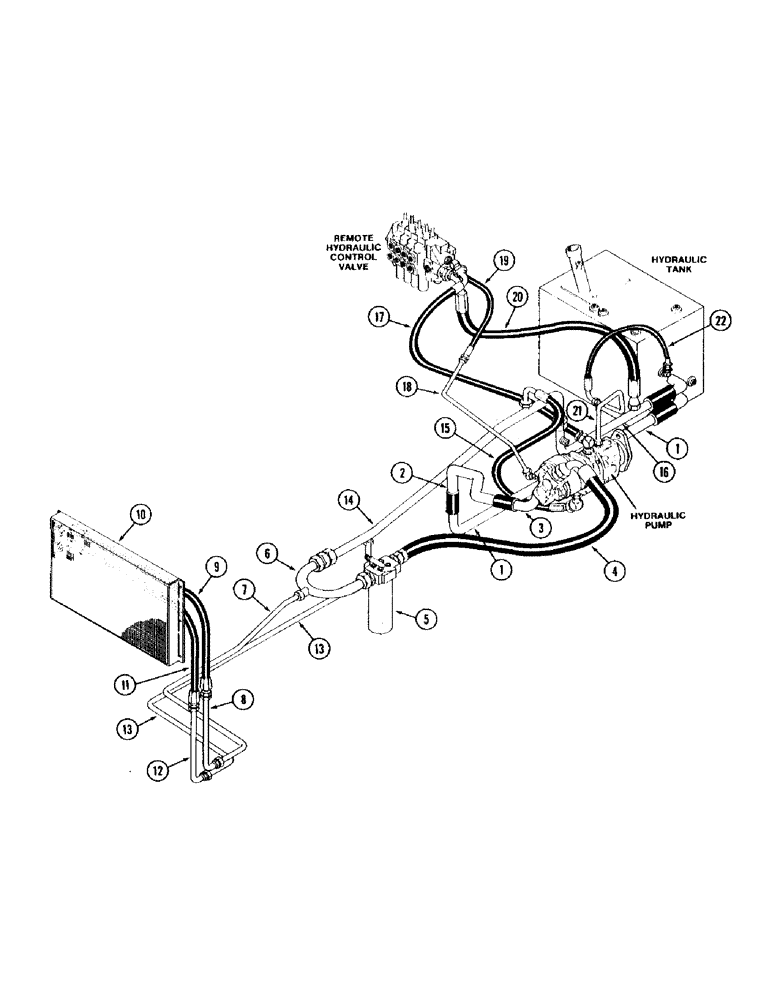

Запчасти Case IH 9150 (1-10) - PICTORIAL INDEX, MAIN HYDRAULICS (00) - PICTORIAL INDEX

1

Gear Pump Inlet Tube, Page 8-5

1шт.

2

Gear Pump Inlet Tube, Page 8-5

1шт.

3

Gear Pump Inlet Elbow, Page 8-5

1шт.

4

Gear Pump to Filter Hose, Page 8-5

1шт.

5

Oil Filter, Page 8-21

1шт.

6

Oil Filter Outlet Tube, Page 8-5

1шт.

7

Oil Cooler Supply Tube, Page 8-7

1шт.

8

Oil Cooler Supply Tube, Page 8-7

1шт.

9

Oil Cooler Supply Hose, Page 8-7

1шт.

10

Oil Cooler, Page 8-7

1шт.

11

Oil Cooler Return Hose, Page 8-7

1шт.

12

Oil Cooler Return Tube, Page 8-7

1шт.

13

Oil Cooler Return Tube, Page 8-7

1шт.

14

Hydraulic Pump Supply Tube, Page 8-3

1шт.

15

Hydraulic Pump Supply Hose, Page 8-3

1шт.

16

Gear Pump Drain Tube, Page 8-3

1шт.

17

Control Valve Supply Hose, Page 8-3

1шт.

18

Hydraulic Pump Sensing Tube, Page 8-3

1шт.

19

Hydraulic Pump Sensing Hose, Page 8-3

1шт.

20

Control Valve Drain Hose, Page 8-3

1шт.

21

Hydraulic Pump Drain Tube, Page 8-3

1шт.

22

Hydraulic Pump Drain Hose, Page 8-3

1шт.
