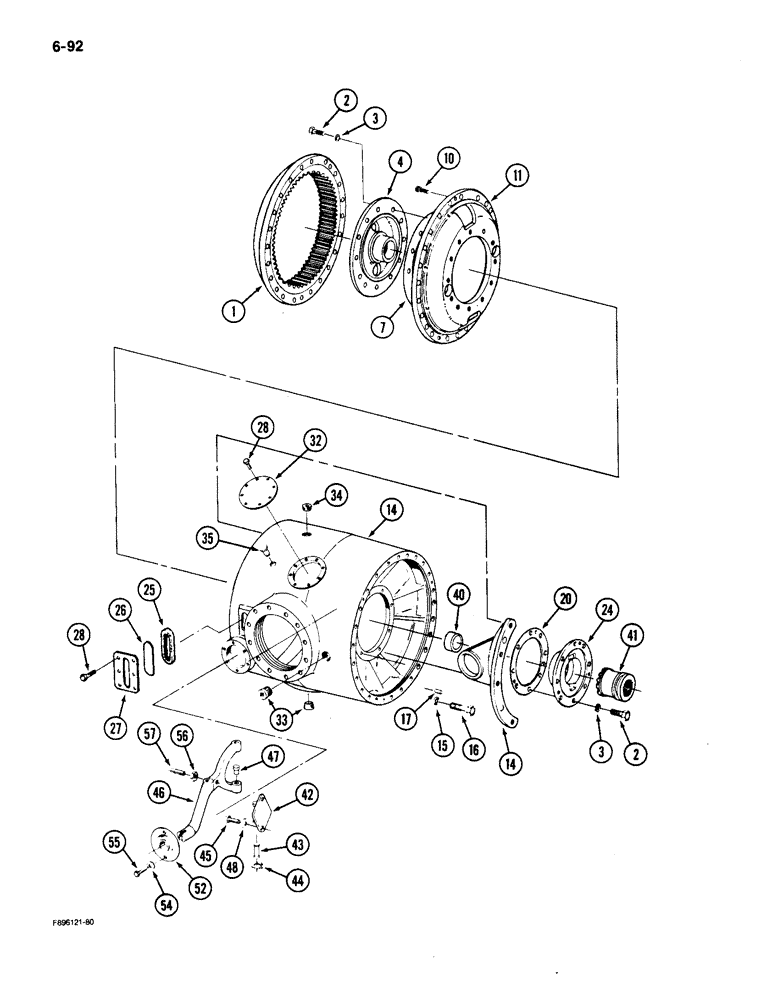

Запчасти Case IH 9150 (6-092) - AXLE ASSEMBLY, DIFFERENTIAL HOUSING, K592 BAR AXLE (06) - POWER TRAIN

90-6975T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock) (Continued), Includes: Ref. 1 - 57

1шт.

90-6976T91

AXLE, REAR

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 1 - 57

1шт.

90-6977T91

CENTER AXLE

AXLE ASSEMBLY - front (With differential lock), Includes: Ref. 1 - 57

1шт.

90-6978T91

AXLE

ASSEMBLY - rear (With differential lock), Includes: Ref. 1 - 57

1шт.

1

33-1263T1

RING

GEAR - ring (73 tooth)

2шт.

2

33-1264T1

CAPSCREW,Flg, 5/16" - 18 x 1 1/2", Gr 8

BOLT - hex, 12 x 32 mm, Grade 10.9

20шт.

3

33-1265T1

LOCK WASHER

WASHER - lock, 12 mm

20шт.

4

33-1266T1

SUPPORT

- bearing

1шт.

7

33-1267T1

SHIM

- bearing, 0.10 mm thick

1шт.

7

33-1268T1

SHIM

- bearing, 0.15 mm thick

1шт.

7

33-1269T1

SHIM

- bearing, 0.25 mm thick

1шт.

7

33-1270T1

SHIM

- bearing, 0.70 mm thick

1шт.

10

33-1271T1

CAPSCREW,Flg, 5/16" - 18 x 1 3/4", Gr 8

BOLT - socket head, 10 x 20 mm

1шт.

11

33-1272T1

COVER

- side

1шт.

33-1273T91

HOUSING ASSY.

HOUSING ASSEMBLY - differential (With differential lock), Includes: Ref. 14 - 17

1шт.

33-1274T91

HOUSING ASSY.

HOUSING ASSEMBLY - differential (Without differential lock), Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

HOUSING - differential

1шт.

15

33-1182T1

LOCK WASHER

- lock, 14 mm

5шт.

16

33-1180T1

SCREW

BOLT - hex, 14 mm - 1.5 x 35 mm, Grade 10.9, rear axle

5шт.

17

33-1277T1

DOWEL

PIN - dowel, 18 x 38 mm

2шт.

20

33-1279T1

SHIM

- bearing, 0.10 mm thick

1шт.

20

33-1280T1

SHIM

- bearing, 0.15 mm thick

1шт.

20

33-1281T1

SHIM

- bearing, 0.25 mm thick

1шт.

20

33-1282T1

SHIM

- bearing, 0.70 mm thick

1шт.

24

33-1283T1

SUPPORT

- bearing

1шт.

25

33-1296T1

GASKET

- oil level window

1шт.

26

33-1297T1

GLASS,CAB

WINDOW - oil level

1шт.

27

33-1298T1

LARGE PLATE

PLATE - window cover

1шт.

28

33-1299T1

CAPSCREW,M8 x 1.25 x 16mm

BOLT - hex

14шт.

32

33-1300T1

COVER

- differential housing

1шт.

33

33-1301T1

PLUG

- hole

2шт.

34

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

35

1-6693

BREATHER

VENT - breather

1шт.

40

33-1278T1

RING

BUSHING - clutch alignment (With differential lock)

1шт.

41

33-1284T1

SLEEVE

- shift (With differential lock)

1шт.

42

33-1285T1

SUPPORT

- shift (With differential lock)

1шт.

43

33-1286T1

PIVOT PIN

PIN - shift pivot (With differential lock)

1шт.

44

33-1287T1

RING, SNAP

RING - snap, 12 mm (With differential lock)

2шт.

45

33-1288T1

CAPSCREW,M12 x 25mm, Cl 10.9

BOLT - hex, 12 mm - 28, Grade 10.9 (With differential lock)

2шт.

46

33-1289T1

FORK

YOKE - shift (With differential lock)

1шт.

47

33-1290T1

PIN

- thrust

1шт.

48

33-1265T1

LOCK WASHER

WASHER - lock, 12 mm (With differential lock)

2шт.

52

33-1291T1

SEAL

ASSEMBLY - (With differential lock)

1шт.

52

33-1292T1

COVER

- hole (Without differential lock)

1шт.

54

33-1294T1

WASHER

- flat

2шт.

55

33-1295T1

SCREW

BOLT - hex (With differential lock)

2шт.

55

33-1293T1

SCREW

BOLT - hex (Without differential lock)

2шт.

56

90-7147T1

NUT

- hex, lock, 12 x 40 mm, Grade 10.9

1шт.

57

90-7146T1

SCREW,M12 x 40mm, Cl 10.9

BOLT - stop, 12 x 40 mm

1шт.
