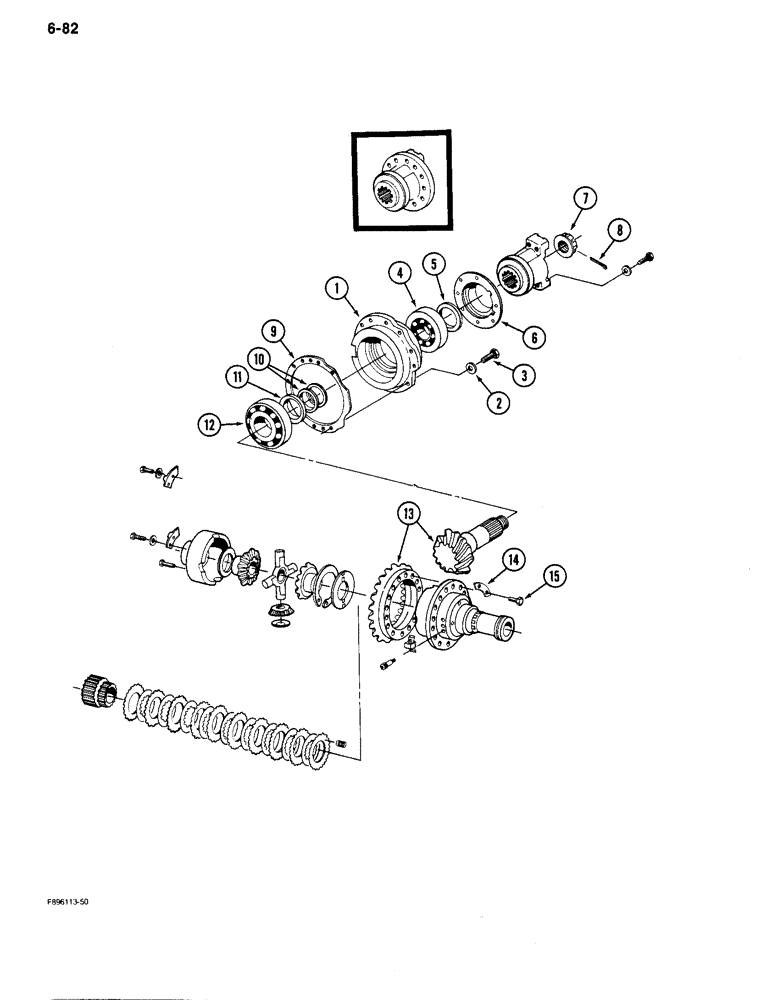

Запчасти Case IH 9150 (6-082) - AXLE ASSEMBLY, DIFFERENTIAL, K598.85/95 SERIES (06) - POWER TRAIN

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (With traction control) (Continued), Includes: Ref. 1 - 15, 19 - 32 on Fig. 6-84 and differential assembly

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 15, 19 - 32 on Fig. 6-84 and differential assembly

1шт.

90-7180T91

DIFFERENTIAL

ASSEMBLY - front (With traction control), Includes: Ref. 1 - 15

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 15

1шт.

1

90-4515T1

HOUSING

- bearing retainer

1шт.

2

16-1592

LOCK WASHER

- lock, 14 mm

12шт.

3

16-1621

SCREW,Hex, M14 x 1.5 x 45mm, Gr 10.9

BOLT - hex, 14 mm - 1.5 x 46 mm, Grade 10.9

12шт.

4

16-1582

TAPERED BEARING

BEARING - taper roller

1шт.

5

90-2509T1

SEALING RING

- input

1шт.

6

90-4517T1

COVER

- seal retainer

1шт.

7

16-1589

NUT

NUT - slotted flange

1шт.

8

16-1590

COTTER PIN,M6.3 x 63

PIN - cotter, 6.3 x 83 mm

1шт.

9

16-1569

SHIM

- housing, 0.20 mm thick

1шт.

9

16-1570

SHIM

- housing, 0.25 mm thick

1шт.

9

16-1568

SHIM

- housing, 0.30 mm thick

1шт.

9

16-1567

SHIM

- housing, 0.50 mm thick

1шт.

9

16-1566

SHIM

- housing, 1.00 mm thick

1шт.

10

90-4504T1

SPACER

- bearing, 4.00 mm thick

1шт.

10

90-4505T1

SPACER

- bearing, 4.04 mm

1шт.

10

90-4506T1

SPACER

- bearing, 4.08 mm (Replaces 9C-4506T1)

1шт.

10

90-4507T1

SPACER

- bearing, 4.12 mm thick

1шт.

10

90-4508T1

SPACER

- bearing, 4.16 mm thick

1шт.

10

90-4509T1

SPACER

- bearing, 4.20 mm thick

1шт.

10

90-4510T1

SPACER

- bearing, 4.40 mm thick

1шт.

10

90-4511T1

SPACER

- bearing, 4.60 mm thick

1шт.

10

90-4512T1

SPACER

- bearing, 4.80 mm thick

1шт.

10

90-4513T1

SPACER

- bearing, 5.00 mm thick

1шт.

10

90-4514T1

SPACER

- bearing, 5.20 mm thick

1шт.

11

90-4503T1

SPACER

SLEEVE - bearing spacer

1шт.

12

16-1565

TAPERED BEARING

BEARING - taper roller

1шт.

13

90-7175T91

GEAR, BEVEL

GEAR SET - ring and pinion, front, Includes: Ref. 7, 8, 14 and 15

1шт.

13

90-7163T91

GEAR, BEVEL

GEAR SET - ring and pinion, rear, Includes: Ref. 7, 8, 14 and 15

1шт.

14

16-1546

LARGE PLATE

PLATE - bolt locking

6шт.

15

16-1545

HEX SOC SCREW,M18 x 1.5 x 35mm, Cl 10.9

BOLT - hex, 18 mm - 1.5 x 35 mm, Grade 10.9

12шт.
