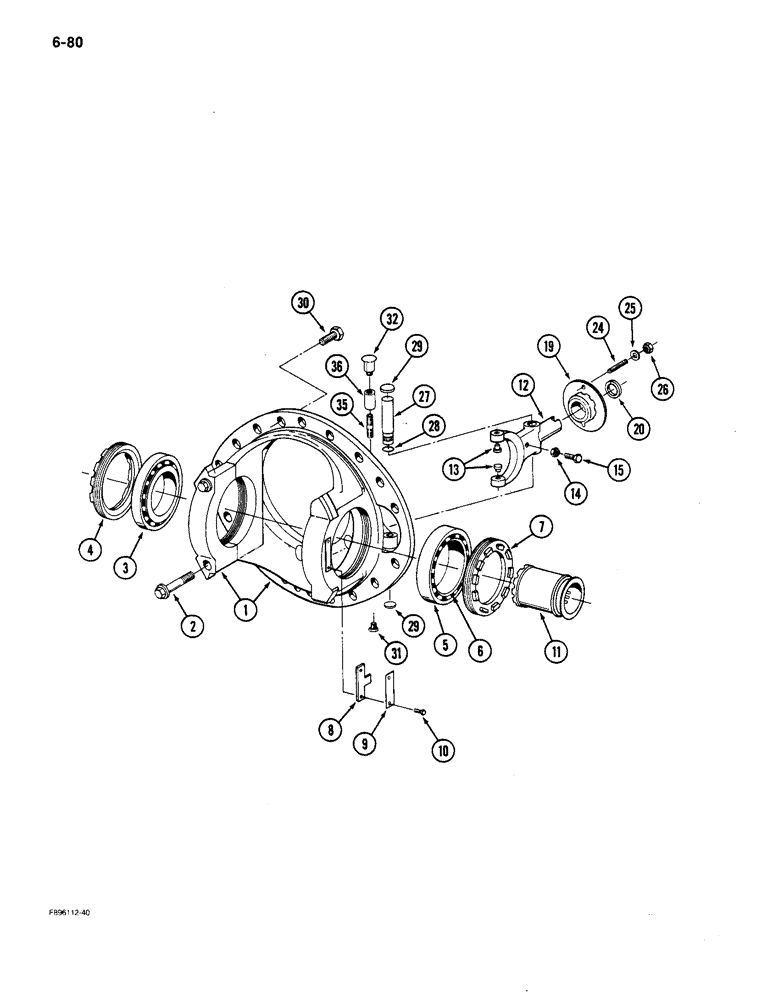

Запчасти Case IH 9150 (6-080) - AXLE ASSEMBLY, DIFFERENTIAL HOUSING, K598.85/95 SERIES (06) - POWER TRAIN

90-6992T91

4WD AXLE ASSY

AXLE ASSEMBLY - front (With traction control) (Continued), Includes: Ref. 1 - 32 and differential assembly

1шт.

90-6993T91

AXLE HOUSING

AXLE ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 32 and differential assembly

1шт.

90-7180T91

DIFFERENTIAL

ASSEMBLY - front (With traction control), Includes: Ref. 1 - 32

1шт.

90-7179T91

DIFFERENTIAL

ASSEMBLY - rear (With traction control), Includes: Ref. 1 - 32

1шт.

1

90-7137T1

HOUSING - differential carrier

1шт.

2

90-7138T1

FLANGE BOLT

BOLT - flanged

2шт.

3

90-7139T1

TAPERED BEARING

BEARING - taper roller

1шт.

4

16-1522

SLOTTED NUT

NUT - bearing retainer

1шт.

5

90-7141T1

BEARING, CUP

CUP - bearing

1шт.

6

90-7140T1

ROLLER BEARING

CONE - bearing

1шт.

7

90-7142T1

NUT

- bearing retainer

1шт.

8

16-1527

LARGE PLATE

PLATE - locking tab, bearing nut

2шт.

9

16-1524

LARGE PLATE

PLATE - locking

2шт.

10

16-1186

CAPSCREW,Hex, M8 x 15mm, Cl 10.9

BOLT - hex, 8 x 15 mm, Grade 10.9

4шт.

11

REF

INSTRUCTION

SLEEVE - clutch (See Figrue 6-82)

1шт.

12

90-7143T1

SHIFTER FORK

FORK - shift, traction control

1шт.

13

33-1290T1

PIN

- thrust

2шт.

14

90-7147T1

NUT

- hex, lock, 12 mm, Grade 10.9

1шт.

15

90-7146T1

SCREW,M12 x 40mm, Cl 10.9

BOLT - stop, 12 x 40 mm

1шт.

33-1291T1

SEAL

ASSEMBLY - shift fork, Includes: Ref. 19 and 20

1шт.

19

NSS

NOT SOLD SEPARAT

SEAL - shift fork

1шт.

20

NSS

NOT SOLD SEPARAT

SPRING - seal

1шт.

24

90-7151T1

STUD

- shift fork

2шт.

25

33-1294T1

WASHER

- flat

2шт.

26

90-7152T1

NUT

- hex, lock

2шт.

90-7148T91

SHAFT

ASSEMBLY - shift fork, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

SHAFT - shift fork

1шт.

28

90-7149T1

O-RING

- seal, 15.6 x 1.7 mm

1шт.

29

90-7150T1

PLUG

- hole

2шт.

30

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, 12 x 40 mm, Grade 10.9

18шт.

31

90-7145T1

PLUG

- hole, with sealant

2шт.

32

1-6693

BREATHER

VENT - breather

1шт.

35

31-1841

CONDUIT

NIPPLE - pipe, 1/8 PT x 4 inch

1шт.

36

31-605

HYD CONNECTOR,1/8"-27 NPTF, Female

COUPLING - pipe, 1/8 inch PT

1шт.
