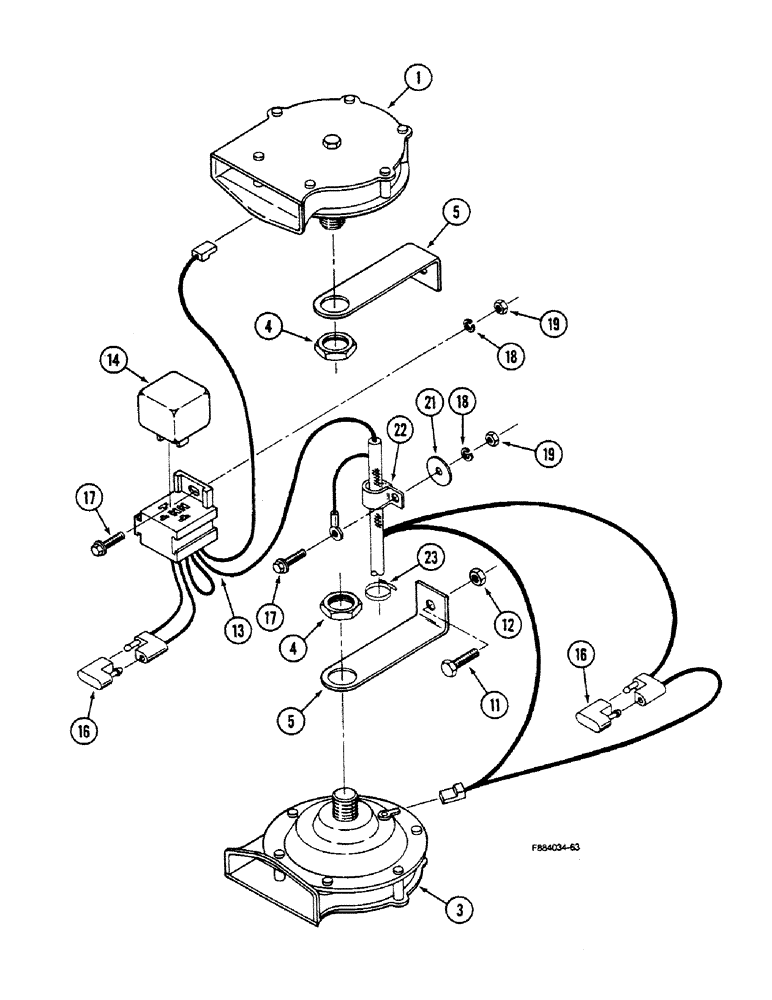

Запчасти Case IH 9150 (4-74) - HORN AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

29-1002

HORN

- electrical

1шт.

3

29-1003

HORN

- electrical

1шт.

4

19-1002

SPECIAL NUT

- hex jam

2шт.

5

29-1004

BRACKET

- mounting, horn

2шт.

11

19-6

BOLT,5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

12

19-508

LOCK NUT

- hex lock, 5/16 inch NC

2шт.

13

20-2021T1

HARNESS

- horn

1шт.

14

20-2133T1

RELAY

- electrical

1шт.

16

22-738

DIODE

- electrical

2шт.

17

9421295

SCREW,Hex Washer, #10 - 24 x 3/4"

- machine, flanged head, no. 10 NC x 3/4 inch

2шт.

18

19-297

LOCK WASHER,#10

Washer, Lock, #10

2шт.

19

19-567

NUT,#10-24

- hex, no. 10 NC (Order 19-5571)

2шт.

21

9421394

WASHER

- flat, 1/4 x 1 x 1/16 inch

1шт.

22

32-69

CLAMP

- harness

1шт.

23

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

2шт.
