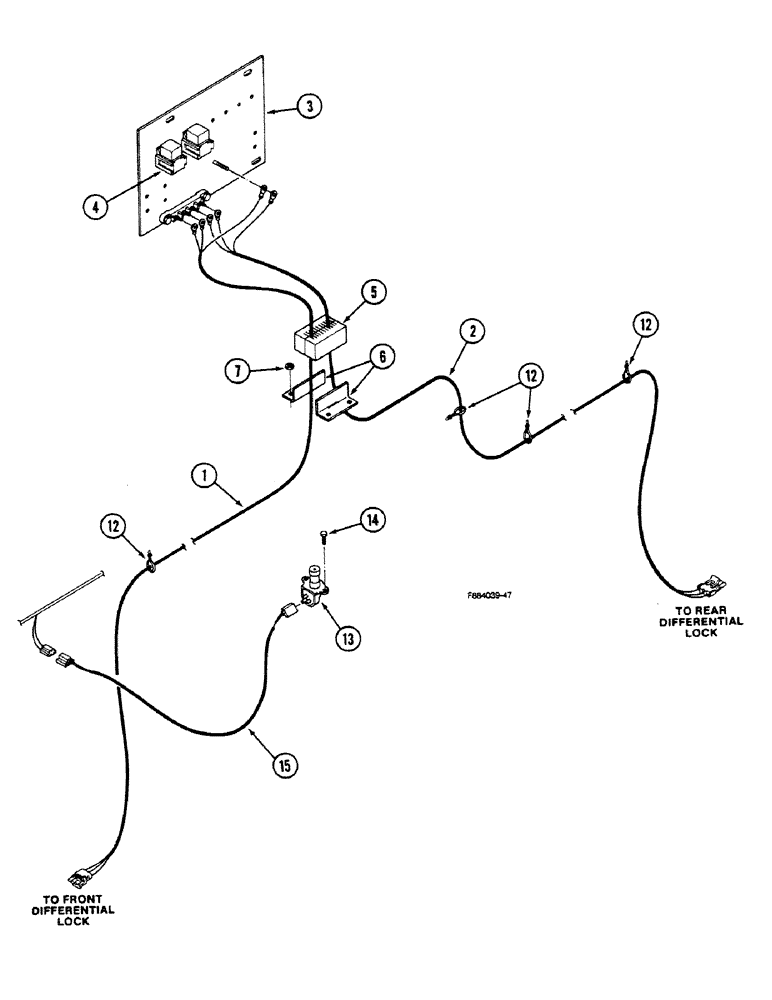

Запчасти Case IH 9150 (4-72) - CONTROL TRACTION DIFFERENTIAL HARNESSES (04) - ELECTRICAL SYSTEMS

1

20-2356T1

HARNESS

ASSEMBLY - front differential

1шт.

2

20-2303T1

HARNESS

ASSEMBLY - rear differential

1шт.

3

REF

INSTRUCTION

PLATE - relay mounting (See Figure 4-14)

1шт.

4

REF

INSTRUCTION

HARNESS - relay, differential (See Figure 4-14)

2шт.

5

60-6066T1

FOAM

- seal

2шт.

6

60-6065T1

ANGLE BAR

PLATE - retainer

2шт.

7

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

12

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon, retaining

1шт.

13

20-1988T1

IGNITION SWITCH

SWITCH - on/off, differential

1шт.

14

19-417

BOLT,Hex, 1/4" - 20 x 0.50", Gr 5, Full Thd

- hex, 1/4 NC x 1/2 inch

2шт.

15

20-2027T1

HARNESS

ASSEMBLY - switch, differential lock

1шт.
