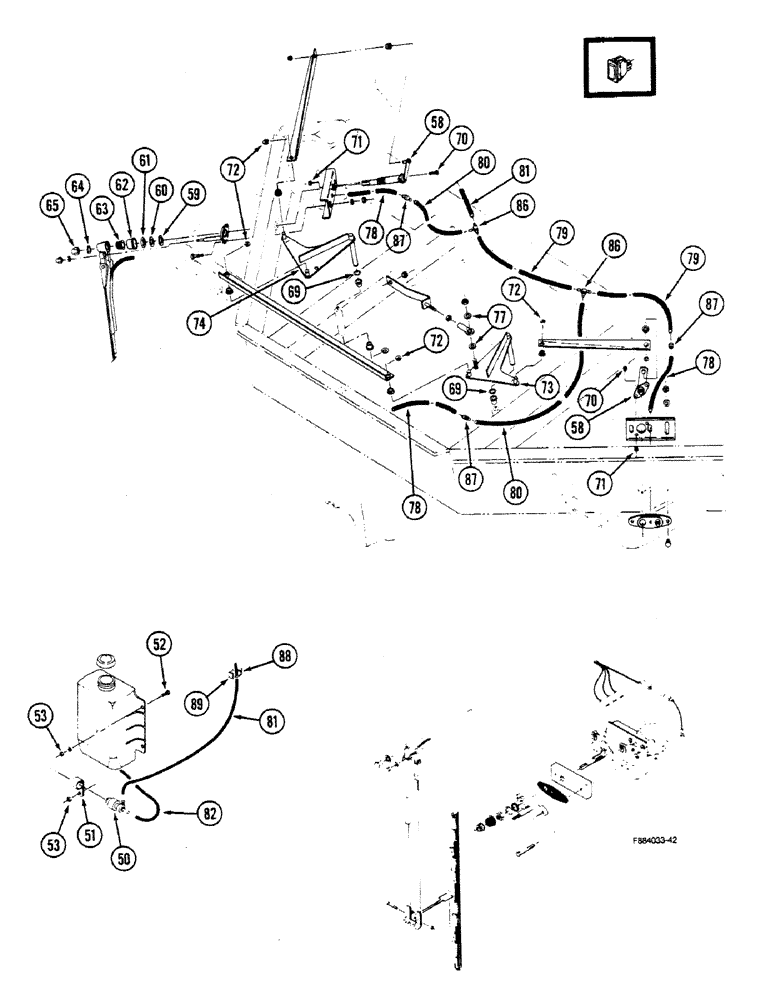

Запчасти Case IH 9150 (4-64) - SIDE AND REAR WIPER WITH WINDOW WASHER, P.I.N. 1790705 AND AFTER, (CONT) (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
35-1718T91
KIT
WIPER KIT - window, continued, 50 - 89 and 1 - 46 on Fig. 4-62
1шт.
50
60-3183T1
PUMP, WATER
PUMP - washer, window
1шт.
51
31-2361
MOUNTING CLIP
CLAMP - pump, window washer
1шт.
52
19-1
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
5шт.
53
19-76
NUT,1/4"-20, G5
- hex, 1/4 inch NC
5шт.
1-2668
SHAFT
ASSEMBLY - wiper pivot, Includes: Ref. 58 - 65
2шт.
58
NSS
NOT SOLD SEPARAT
SHAFT - wiper pivot
2шт.
59
1-9416
WASHER
- flat
2шт.
60
1-9417
WASHER
- flat
2шт.
61
1-9418
NUT
- hex, jam
2шт.
62
1-9419
CAP
- seal, shaft
2шт.
63
1-9420
NUT
DRIVER - knurled
2шт.
64
1-9422
WASHER
- lock
2шт.
65
1-9421
NUT
- hex, cap
2шт.
69
19-5370
WAVE WASHER
- wave, 7/16 inch
1шт.
70
463-41012
SCREW,Slot Hex Wash Hd, #10-24 x 3/4"
- machine, flanged head, no. 10 NC x 3/4 inch
4шт.
71
19-351
NUT,#10 - 24, GA
NUT - hex lock, no. 10 NC
4шт.
72
19-5992
RING, SNAP
RING - snap
4шт.
73
60-5903T1
SUPPORT
BRACKET - pivot, left
1шт.
74
60-5904T1
SUPPORT
BRACKET - pivot, right
1шт.
77
60-5994T1
SPACER
- ball joint
2шт.
78
NSS
NOT SOLD SEPARAT
TUBING - washer, 10 inch (Order 31-2607T1 and, Serial Range: cut-length)
3шт.
79
NSS
NOT SOLD SEPARAT
TUBING - washer, 15 inch (Order 4-1056T1 and, Serial Range: cut-length)
2шт.
80
NSS
NOT SOLD SEPARAT
TUBING - washer, 2 inch (Order 4-1056T1 and, Serial Range: cut-length)
2шт.
81
NSS
NOT SOLD SEPARAT
TUBING - washer, 130 inch (Order 4-1056T1 and, Serial Range: cut-length)
1шт.
82
NSS
NOT SOLD SEPARAT
TUBING - washer, 10 inch (Order 4-10661T1 and, Serial Range: cut-length)
1шт.
86
31-2363
TEE
- nylon, 3/16 inch
2шт.
87
31-2364
FITTING
CONNECTOR - nylon, 3/16 x 7/64 inch
3шт.
88
22-824
CABLE TIE,3/16" x 7 1/4"
STRAP - nylon
1шт.
89
22-823
MOUNT
MOUNT - strap, adhesive backed
1шт.
Выбрано товаров: 30
