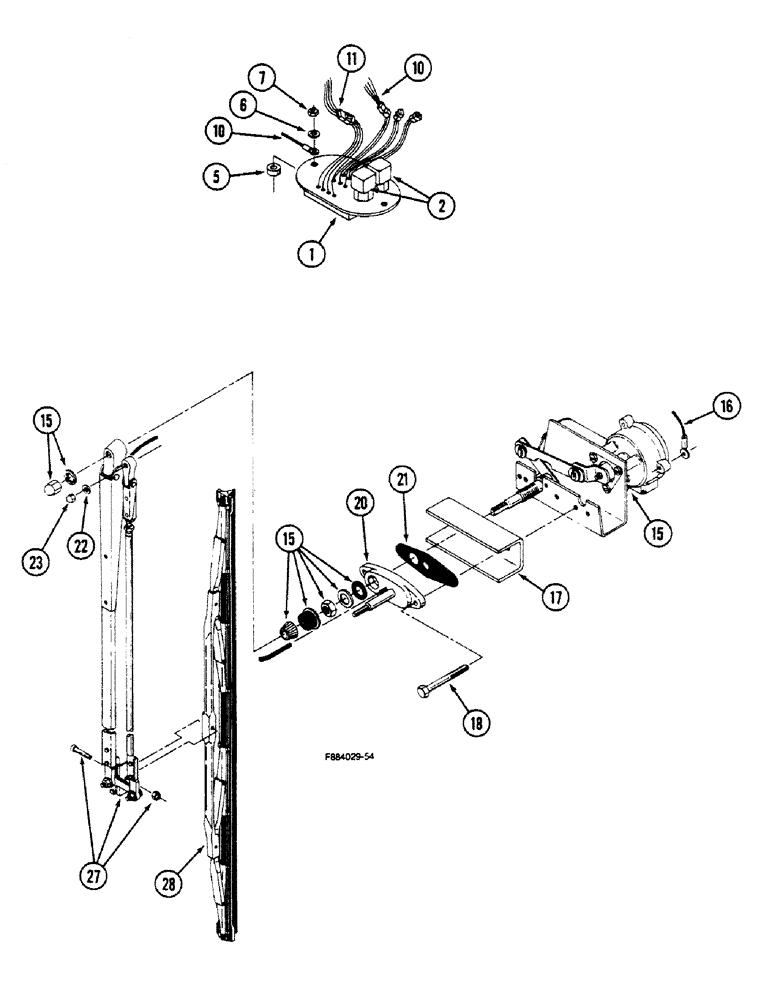

Запчасти Case IH 9150 (4-56) - FRONT SIDE WIPERS, PRIOR TO P.I.N. 1790705 (04) - ELECTRICAL SYSTEMS

35-1609T91

KIT

WIPER KIT - side window with window washer (See Figure 4-60 for washer components), Includes: Ref. 1 - 28

1шт.

1

20-1669T1

CIRCUIT-BREAKER

CIRCUIT BOARD - wiper control, Includes: Ref. 2

1шт.

2

1-7877

RELAY

- electrical

2шт.

5

19-6069

SPACER

- circuit board, 3/16 x 1/2 x 9/32 inch

2шт.

6

19-195

WASHER,#10

- flat, 3/16 x 9/16 x 3/64 inch

2шт.

7

19-567

NUT,#10-24

- hex, no. 10 NC

2шт.

10

20-2108T1

HARNESS

- side wiper

2шт.

11

20-2107T1

HARNESS

- jumper, wiper

1шт.

15

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper (See Figure 4-66)

2шт.

16

20-1452T1

ELECTRICAL WIRE

WIRE - ground lead

2шт.

17

2-2822T1

SPACER

- mounting, wiper

2шт.

18

414-436

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

- hex, 1/4 NF x 2-1/4 inch

4шт.

60-1436T91

PIVOT ASSY.

PIVOT KIT - wiper blade, Includes: Ref. 20 - 23

2шт.

20

NSS

NOT SOLD SEPARAT

PIVOT - body and shaft, wiper blade

2шт.

21

NSS

NOT SOLD SEPARAT

GASKET - pivot

2шт.

22

2-4191T1

WASHER

- lock

2шт.

23

2-4192T1

NUT

- hex, cap

2шт.

27

60-1440T1

WIPER ARM

ARM - wiper, 22 inch, Start Serial: 7052

2шт.

27

60-1144T1

WIPER ARM

ARM - wiper, 17 inch, Serial Range: 17900705-7052

2шт.

28

60-1439T91

HALF BLADE

BLADE ASSEMBLY - wiper, 26 inch, Includes blade, Start Serial: 7052

2шт.

2-4193T1

HALF BLADE

BLADE - replacement, rubber

1шт.

28

60-1145T91

WIPER BLADE

BLADE ASSEMBLY - wiper, 18 inch , Includes blade, Serial Range: 17900705-7052

2шт.

2-4194T1

WIPER BLADE

BLADE - replacement, rubber

1шт.
