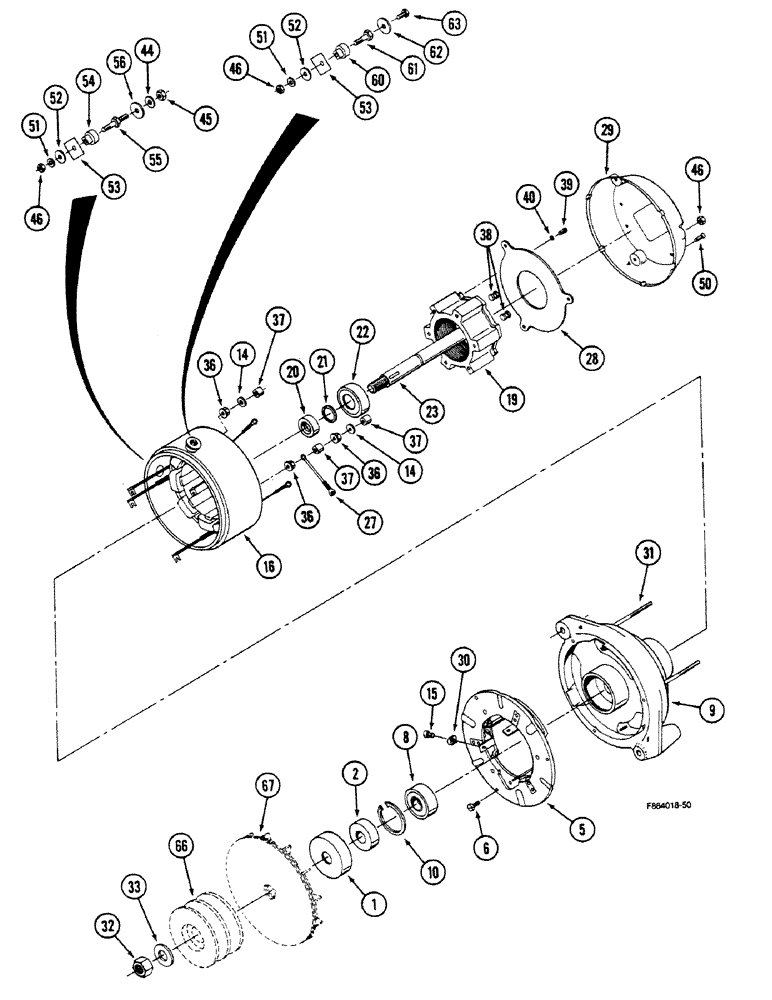

Запчасти Case IH 9150 (4-46) - ALTERNATOR ASSEMBLY (04) - ELECTRICAL SYSTEMS

90-3756T91

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, Includes: Ref. 1 - 67

1шт.

P/N 90-3756T91 is Niehoff N1056

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

125849A1GV

ALTERNATOR

Value, 12 Volt, 135 Amp

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 100 AMP Alternator

1шт.

104258A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 35 AMP Alternator

1шт.

104258A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 35 AMP Alternator

1шт.

91448C2

ALTERNATOR

ALTERNATOR N114V-40/110A

1шт.

91448C2R

REMAN-ALTERNATOR

Reman for New PN 91448C2

1шт.

91448C2C

CORE-ALTERNATOR

Return Part Number

1шт.

91448C2GV

ALTERNATOR

Value, 14V, 110A

1шт.

1

90-4452T1

COVER

COVER - bearing

1шт.

2

90-4453T1

BUSHING

SPARE PART BUSHING - spacer, 43/64 x 1-3/8 x 13/32 inch

1шт.

5

77791C1

AMPLIFIER

HEAT SINK - alternator

1шт.

6

NSS

NOT SOLD SEPARAT

SCREW - machine, pan head Keps, no. 8 NC x 3/8 inch

3шт.

Part of small parts package 90-4466T1.

1шт.

90-4455T91

COIL ASSY.

COIL ASSEMBLY - forging and field, Includes: Ref. 8 - 10

1шт.

8

90-4456T1

BEARING

SPARE PART BEARING - front

1шт.

9

90-4457T1

COIL ASSY.

COIL - field

1шт.

10

NSS

NOT SOLD SEPARAT

RING - snap, bearing retaining

1шт.

Part of small parts package 90-4466T1.

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/64 x 7/16 x 1/32 inch

2шт.

Part of small parts package 90-4466T1.

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW - machine, pan head, no. 10 NF x 1/4 inch

4шт.

Part of small parts package 90-4466T1.

1шт.

16

90-4458T1

STATOR

SPARE PART STATOR AND SHELL ASSEMBLY - alternator

1шт.

90-4459T91

ROTOR ASSY.

ROTOR ASSEMBLY - alternator, Includes: Ref. 19 - 23

1шт.

19

NSS

NOT SOLD SEPARAT

ROTOR - alternator

1шт.

20

90-4460T1

CUP

CUP - retainer

1шт.

21

90-4461T1

RING

RING - snap

1шт.

22

90-4462T1

BALL BEARING

BEARING - rear

1шт.

23

124544

WOODRUFF KEY,#4, 3/32" x 5/8", HT

KEY - Woodruff

1шт.

Part of small parts package 90-4466T1.

1шт.

27

90-4463T1

CABLE

WIRE - ground lead

1шт.

28

90-4464T1

VALVE

REGULATOR ASSEMBLY - alternator

1шт.

29

90-4465T1

REAR COVER

COVER - end, alternator

1шт.

30

NSS

NOT SOLD SEPARAT

GUIDE - terminal

4шт.

Part of small parts package 90-4466T1.

1шт.

31

NSS

NOT SOLD SEPARAT

STUD - field coil, 3-1/2 inch

3шт.

Part of small parts package 90-4466T1.

1шт.

32

19-94

NUT

NUT - hex, lock, 1/2 inch NF

1шт.

Part of small parts package 90-4466T1.

1шт.

33

19-5603

WASHER,17/32" x 1 1/16" x .095", HDN

WASHER - flat, hardened

1шт.

Part of small parts package 90-4466T1.

1шт.

36

NSS

NOT SOLD SEPARAT

NUT - flanged, no. 10 NF

3шт.

Part of small parts package 90-4466T1.

1шт.

37

NSS

NOT SOLD SEPARAT

BUSHING - spacer, 13/64 x 3/8 x 17/64 inch

3шт.

Part of small parts package 90-4466T1.

1шт.

38

NSS

NOT SOLD SEPARAT

PLUG - rubber

2шт.

Part of small parts package 90-4466T1.

1шт.

39

NSS

NOT SOLD SEPARAT

SCREW - machine, pan head, no. 6 NF x 3/16 inch

4шт.

Part of small parts package 90-4466T1.

1шт.

40

NSS

NOT SOLD SEPARAT

WASHER - lock, no. 6

4шт.

Part of small parts package 90-4466T1.

1шт.

44

NSS

NOT SOLD SEPARAT

WASHER - flat, 1/4 x 9/16 x 3/64 inch

1шт.

Part of small parts package 90-4466T1.

1шт.

45

NSS

NOT SOLD SEPARAT

NUT - hex, lock, M6 x 1.0 mm

1шт.

Part of small parts package 90-4466T1.

1шт.

46

NSS

NOT SOLD SEPARAT

NUT - hex, lock, no. 10 NF

8шт.

Part of small parts package 90-4466T1.

1шт.

50

NSS

NOT SOLD SEPARAT

SCREW - machine, flat head, no. 6 NC x 3/8 inch

3шт.

Part of small parts package 90-4466T1.

1шт.

51

NSS

NOT SOLD SEPARAT

WASHER - flat, 13/64 x 7/16 x 1/16 inch

2шт.

Part of small parts package 90-4466T1.

1шт.

52

NSS

NOT SOLD SEPARAT

WASHER - insulating

2шт.

Part of small parts package 90-4466T1.

1шт.

53

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

2шт.

Part of small parts package 90-4466T1.

1шт.

54

NSS

NOT SOLD SEPARAT

INSULATOR - molded, red

1шт.

Part of small parts package 90-4466T1.

1шт.

55

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

Part of small parts package 90-4466T1.

1шт.

56

NSS

NOT SOLD SEPARAT

WASHER - flat, 1/4 x 3/4 x 1/16 inch

1шт.

Part of small parts package 90-4466T1.

1шт.

60

NSS

NOT SOLD SEPARAT

INSULATOR - molded, white

1шт.

Part of small parts package 90-4466T1.

1шт.

61

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

Part of small parts package 90-4466T1.

1шт.

62

NSS

NOT SOLD SEPARAT

WASHER - flat, 11/64 x 3/4 x 1/16 inch

1шт.

Part of small parts package 90-4466T1.

1шт.

63

NSS

NOT SOLD SEPARAT

SCREW - machine, hex Keps, M4 x 8 mm

1шт.

Part of small parts package 90-4466T1.

1шт.

66

REF

INSTRUCTION

PULLEY - alternator (See Figure 4-44)

1шт.

67

REF

INSTRUCTION

FAN - alternator (See Figure 4-44)

1шт.

90-3756T91

ALTERNATOR

Niehoff # N1056

1шт.

90-4466T1

PACKAGE

PACKAGE small parts, Includes: Refs. 6, 10, 14, 15, 23, 30 - 33, 36 - 40, 44 - 46, 50 - 56 and 60 - 63.

1шт.
