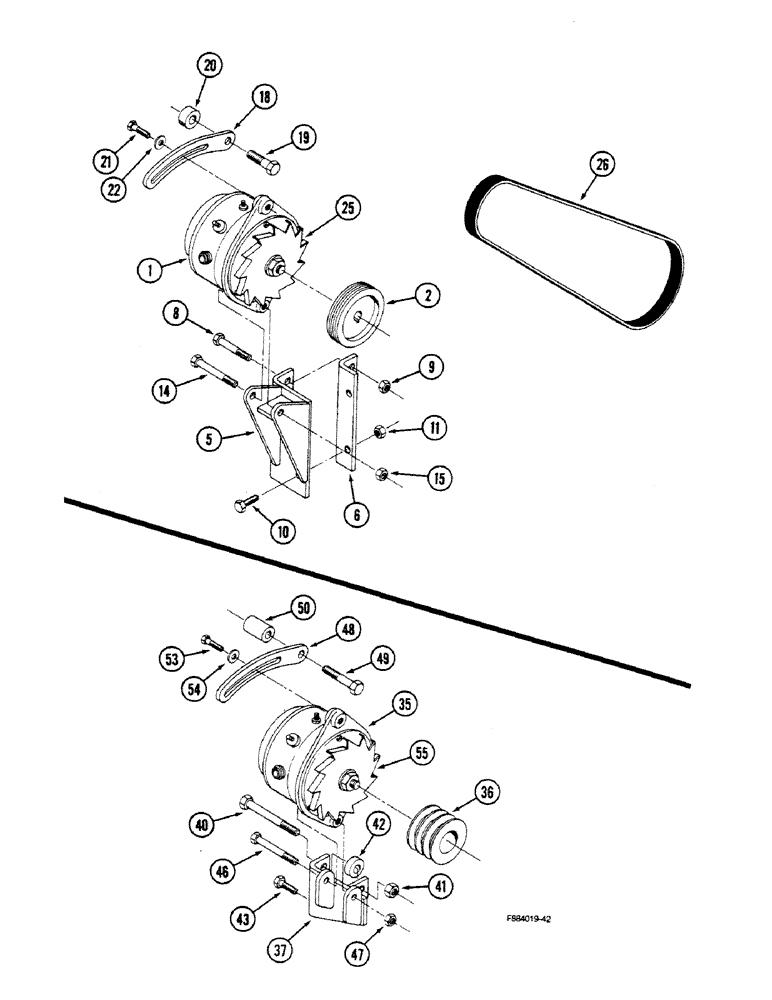

Запчасти Case IH 9150 (4-44) - ALTERNATOR MOUNTING, L-10 ENGINES (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-46)

1шт.

2

90-5911T1

PULLEY

- alternator

1шт.

5

90-5912T1

BRACKET

- mounting

1шт.

6

90-5916T1

ANGLE

- support

1шт.

8

40-1222

CAPSCREW,Hex, M10 x 1.5 x 60mm, Cl 10.9

BOLT - hex, M10 x 60 mm, grade 10.9

3шт.

9

19-455

NUT

- hex, M10

3шт.

10

19-679

BOLT,Hex, 3/8" - 16 x 1", Gr 8

- hex, 3/8 NC x 1 inch, grade 8

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

14

40-1078

CAPSCREW,Hex, M10 x 1.5 x 80 mm, Cl 10.9

BOLT - hex, M10 x 80 mm, grade 10.9

1шт.

15

40-1238

NUT

- hex, lock, M10

1шт.

18

90-4673T1

FAN

STRAP - adjusting, alternator

1шт.

19

40-1102

SCREW,Hex, M12 x 1.75 x 40mm, Gr 10.9

BOLT - hex, M12 x 40 mm, grade 10.9

1шт.

20

1-7144

SPACER

- adjusting strap

1шт.

21

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

- hex, M8 x 30 mm, grade 10.9

1шт.

22

19-6002

WASHER

- flat, 5/16 x 7/8 x 1/16 inch

1шт.

25

90-3754T1

FAN

- alternator

1шт.

26

90-6850T1

V-BELT,0.14" W x 33.50" L, 5 Ribs

Alternator 0.14" W x 33.50" L, 5 Ribs

1шт.

35

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - engine (See Figure 4-46), mounting 3306

1шт.

36

90-5703T1

PULLEY

- alternator, alternator mounting 3306 engine

1шт.

37

90-4674T2

BRACKET

- mounting, alternator 3306 engine

1шт.

40

19-483

SCREW,Hex, 1/2"-13 x 4", G5

BOLT - hex, 1/2 NC x 4 inch, alternator mounting 3306 engine

1шт.

41

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC, alternator mounting 3306 engine

1шт.

42

1-7145

SPACER

- mounting bracket, alternator 3306 engine

1шт.

43

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

Alternator mounting 3306 engine Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

46

40-1078

CAPSCREW,Hex, M10 x 1.5 x 80 mm, Cl 10.9

BOLT - hex, M10 x 80 mm, grade 10.9, alternator mounting 3306 engine

1шт.

47

40-1238

NUT

- hex, lock, M10, alternator mounting 3306 engine

1шт.

43

90-4673T1

FAN

STRAP - adjusting, alternator, mounting 3306 engine

1шт.

49

80087972

BOLT,Hex, 1/2" - 13 x 2 1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch, alternator mounting 3306 engine

1шт.

50

90-4678T1

SPACER

- adjusting strap, alternator mounting 3306 engine

1шт.

53

40-1146

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9

- hex, M8 x 30 mm, grade 10.9, alternator mounting 3306 engine

1шт.

54

19-6002

WASHER

- flat, 5/16 x 7/8 x 1/16 inch, alternator mounting 3306 engine

1шт.

55

90-3754T1

FAN

- alternator, mounting 3306 engine

1шт.
