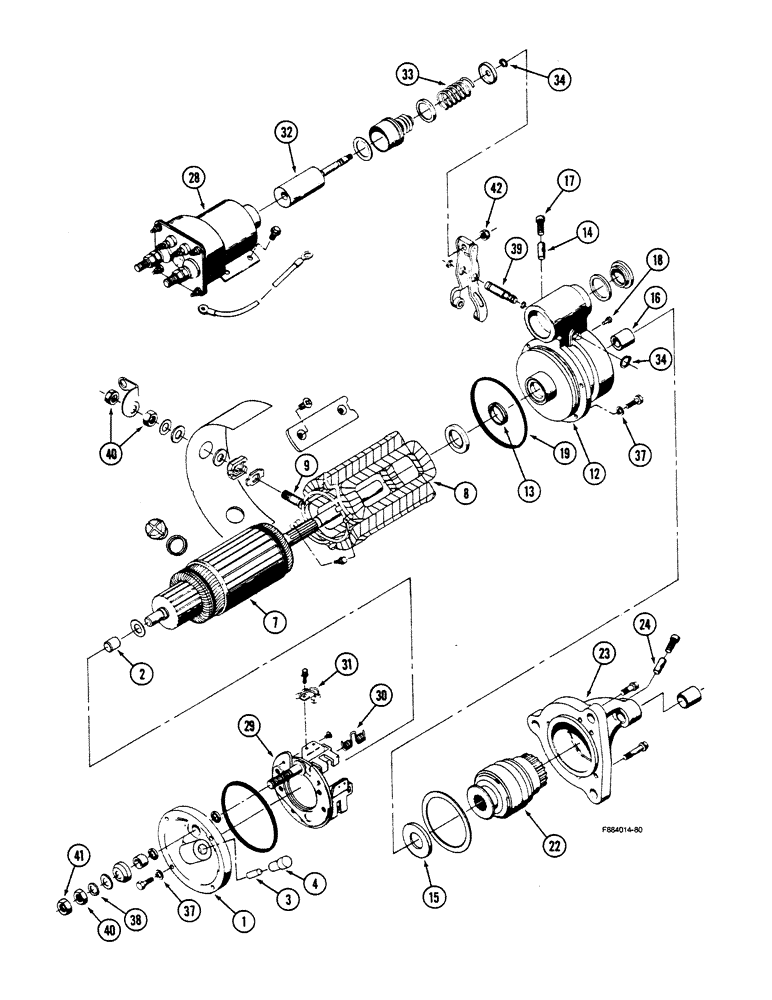

Запчасти Case IH 9150 (4-36) - STARTER ASSEMBLY, EARLY STYLE (04) - ELECTRICAL SYSTEMS

20-2036T91

KIT

STARTER ASSEMBLY - engine, 3306 (Delco no. 1114834) (Order 20-2386T91), Includes: Ref. 1 - 42

1шт.

20-1295T91

STARTER MOTOR

STARTER ASSEMBLY - engine, L-10 (Delco no. 114689) (Order 20-2384T91), Includes: Ref. 1 - 42

1шт.

140855A3R

REMAN-STARTER,12V

Remanufactured Starter

1шт.

140855A3C

CORE-STARTER,12V

Return Part Number

1шт.

1

20-1322T91

FRAME

COVER - commutator end (Replaces 20-1232T91), Includes: Ref. 2 - 4

1шт.

2

20-1333T1

BUSHING

BUSHING - armature, commutator cover

1шт.

3

20-1366T1

WICK

FELT - bearing oil

1шт.

4

20-1339T1

CUP

PLUG - hole, felt

1шт.

7

22-1115

ARMATURE

ARMATURE ASSEMBLY - starter

1шт.

8

20-1323T91

COIL

COIL ASSEMBLY - field

1шт.

9

22-1117

STUD

BOLT - terminal

1шт.

12

20-1324T91

HOUSING

HOUSING ASSEMBLY - lever, Includes: Ref. 13 - 19

1шт.

13

22-1058

OIL SEAL

SEAL - oil, lever housing

1шт.

14

20-1331T1

WICK

FELT - bearing oil

1шт.

15

22-1137

WASHER

SPARE PART WASHER - brake

1шт.

16

20-1335T1

BUSHING

BUSHING - armature, lever housing

1шт.

17

20-1339T1

CUP

PLUG - hole, felt

1шт.

18

20-1340T1

PLUG

PLUG - mounting hole

1шт.

19

1-1239

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

SPARE PART O-RING - lever housing

1шт.

22

1-1234

DRIVE

CLUTCH ASSEMBLY - drive, 3306 engine

1шт.

22

20-1343T1

DRIVE ASSY.

CLUTCH ASSEMBLY - drive, L-10 engine

1шт.

23

20-1325T91

HOUSING

HOUSING ASSEMBLY - drive, Includes: Ref. 24 - 26

1шт.

24

20-1331T1

WICK

FELT - bearing oil

1шт.

25

20-1334T1

BUSHING

BUSHING - armature, drive housing

1шт.

26

20-1339T1

CUP

PLUG - hole, felt

1шт.

28

20-1345T1

SWITCH

SWITCH ASSEMBLY - magnetic

1шт.

29

20-1327T91

PLATE

PLATE ASSEMBLY - brush, Includes: Ref. 30

1шт.

30

20-1330T1

SPRING

SPRING - brush

4шт.

31

20-1328T1

BRUSH

BRUSH - starter

8шт.

32

22-1124

PLUNGER

PLUNGER - starter

1шт.

33

A41242

SPRING

SPRING - plunger

1шт.

34

22-1060

RING, SNAP

RING SNAP RING - snap, retaining

2шт.

37

19-115

LOCK WASHER,1/4"

1/4"

9шт.

38

19-119

LOCK WASHER,1/2"

1/2"

3шт.

39

A42199

PIN

SHAFT - shift lever

1шт.

40

19-289

JAM NUT,1/2" - 13, Gr 5

NUT - hex, jam, 1/2 inch NC

3шт.

41

A47890

NUT

NUT - Keps, 1/2 inch NC

1шт.

42

22-1129

JAM NUT

NUT - hex, lock, 5/16 inch NF

1шт.
