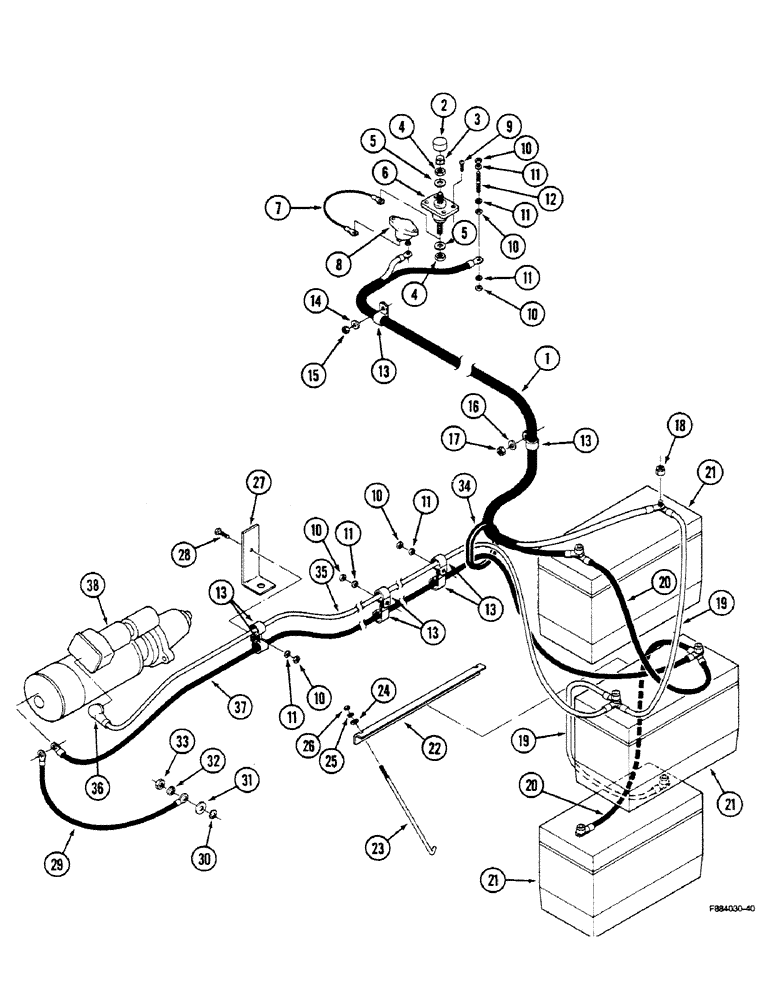

Запчасти Case IH 9150 (4-32) - BATTERIES AND CABLES, L-10 ENGINE (04) - ELECTRICAL SYSTEMS

1

20-1972T1

HARNESS

ASSEMBLY - cab power

1шт.

2

20-2469T1

INSULATOR

- junction block

1шт.

3

20-2471T1

CAP

- junction block

1шт.

4

19-289

JAM NUT,1/2" - 13, Gr 5

- hex, jam 1/2 inch NC

2шт.

5

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 1/16 inch

2шт.

6

20-1087T1

BLOCK

- junction

1шт.

7

20-2023T1

ELECTRICAL WIRE

WIRE ASSEMBLY - junction block to circuit breaker

1шт.

8

20-2041T1

CIRCUIT-BREAKER

CIRCUIT BREAKER - electrical

1шт.

9

159950

NUT

- machine, pan head, no. 10 x 3/4 inch

6шт.

10

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

6шт.

11

19-115

LOCK WASHER,1/4"

1/4"

6шт.

12

60-1880T1

STUD

- ground

1шт.

13

32-161

COLLAR CLAMP

CLAMP - harness retaining

8шт.

14

19-700

WASHER,5/16"

- flat, 5/16 x 7/8 x 1/16 inch

1шт.

15

19-508

LOCK NUT

- hex lock, 5/16 inch NC

1шт.

16

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

1шт.

17

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

1шт.

18

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex lock, 3/8 inch NC

6шт.

19

20-2094T2

CABLE

- battery

2шт.

20

1-4965

CABLE

- battery

2шт.

21

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

22

70-4175T1

ANGLE

BRACKET - angle

3шт.

23

1-1946

TRUSS ROD

ROD - battery retaining

6шт.

24

19-106

WASHER,5/16", SAE

- flat, 5/16 x 7/8 x 1/16 inch

6шт.

25

19-116

LOCK WASHER,5/16"

5/16"

6шт.

26

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

27

70-4739T1

SUPPORT

BRACKET - support, clamp

1шт.

28

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

29

22-33

CABLE

- starter, ground

1шт.

30

19-517

LOCK WASHER,Ext Tooth, 5/8"

WASHER - lock, external tooth, 5/8 inch

1шт.

31

19-711

WASHER,5/8", SAE

- flat, 5/8 x 1-15/16 x 1/16 inch

1шт.

32

19-119

LOCK WASHER,1/2"

1/2"

1шт.

33

19-81

NUT,1/2"-13, G5

- hex, 1/2 inch NC

1шт.

34

31-2493

HOSE

GROMMET - protective

1шт.

35

20-2347T1

CABLE

ASSEMBLY - battery

1шт.

36

20-2424T1

BOOT

- cable end

1шт.

37

20-2346T1

CABLE

ASSEMBLY - battery

1шт.

38

REF

INSTRUCTION

STARTER (See Figures 4-36 - 4-42)

1шт.
