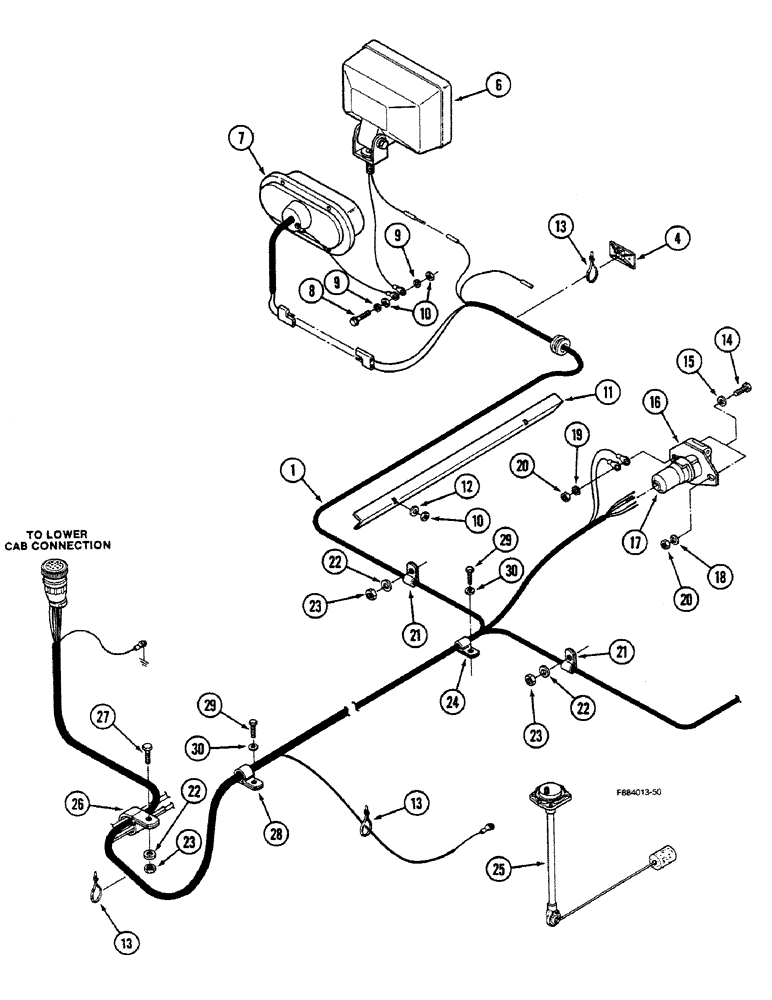

Запчасти Case IH 9150 (4-26) - REAR FRAME HARNESS (04) - ELECTRICAL SYSTEMS

1

20-2020T2

HARNESS

ASSEMBLY - rear frame

1шт.

4

22-823

MOUNT

MOUNT - adhesive backed

2шт.

5

31-2242

GROMMET

- protective

2шт.

6

REF

INSTRUCTION

LAMP ASSEMBLY - field (See Figure 4-46)

2шт.

7

REF

INSTRUCTION

LAMP ASSEMBLY - tail (See Figure 4-46)

2шт.

8

19-5773

SCREW,Hex, 1/4" - 20 x 1 1/4", W/ LW

MACHINE SCREW - Keps, 1/4 NC x 1-1/4 inch

2шт.

9

19-115

LOCK WASHER,1/4"

1/4"

4шт.

10

19-76

NUT,1/4"-20, G5

- hex, 1/4 inch NC

4шт.

11

51-366

PROTECTOR

GUARD - wire

2шт.

12

19-223

WASHER,1/4"

- flat, 1/4 x 3/4 x 1/16 inch

4шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

14

19-7

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch NC

2шт.

15

19-106

WASHER,5/16", SAE

- flat, 15/16 x 11/16 x 1/16 inch

2шт.

16

22-789

SOCKET

CONNECTOR - socket

1шт.

17

22-790

COVER

BOOT - rubber

1шт.

18

19-116

LOCK WASHER,5/16"

5/16"

1шт.

19

19-605

LOCK WASHER,Ext Tooth, 5/16"

WASHER - lock, external tooth 5/16 inch

1шт.

20

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

21

22-1109

CLAMP

- harness, retaining

2шт.

22

19-224

WASHER,3/8", SAE

- flat, 3/8 x 13/16 x 1/16 inch

2шт.

23

19-78

SPECIAL NUT,3/8"-16, G5

- hex, 3/8 inch NC

2шт.

24

31-2488

CLAMP

- harness, retaining

1шт.

25

REF

INSTRUCTION

SENDER - fuel (See Figure 3-18)

1шт.

26

31-1427

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

27

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

- hex, 3/8 NC x 3/4 inch

1шт.

28

31-1776

MOUNTING CLIP

CLAMP - harness, retaining

1шт.

29

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

30

19-105

WASHER,1/4", SAE

- flat, 1/4 x 5/8 x 1/16 inch

2шт.
