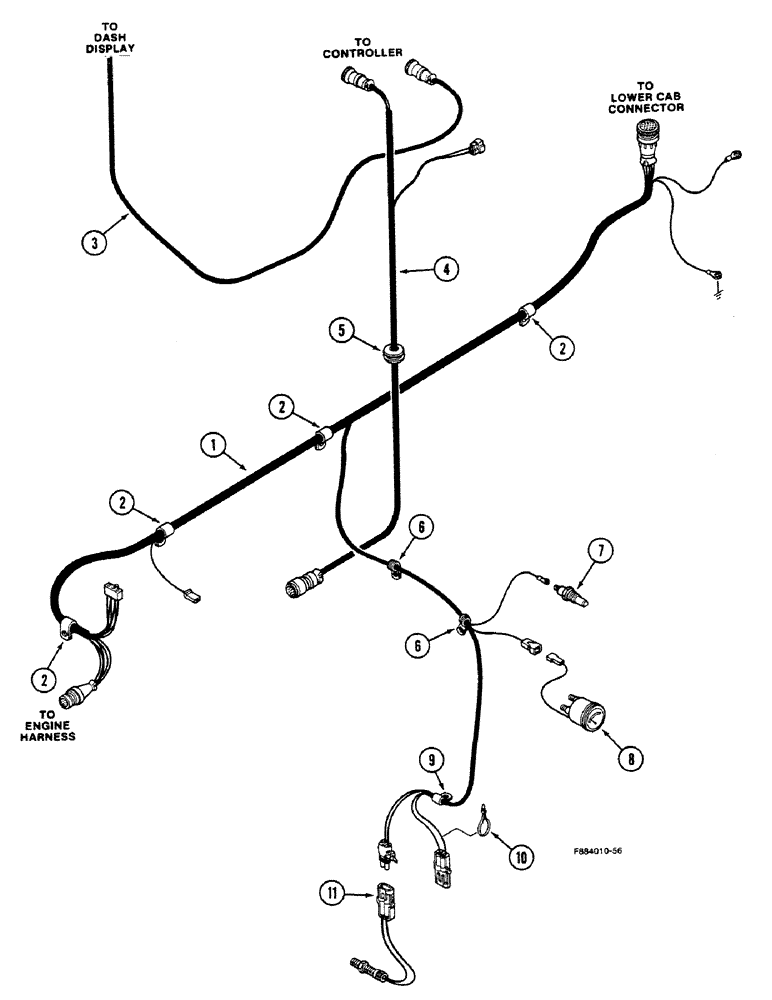

Запчасти Case IH 9150 (4-20) - TRANSMISSION HARNESS (04) - ELECTRICAL SYSTEMS

1

35-1717T91

KIT

HARNESS KIT - transmission (, Start Serial: 17900705

1шт.

1

20-2508T1

HARNESS

ASSEMBLY - transmission, Serial Range: -17900705

1шт.

2

31-2488

CLAMP

- harness, retaining

4шт.

3

20-2292T1

HARNESS

ASSEMBLY - dash display

1шт.

4

20-2290T1

HARNESS

ASSEMBLY - transmission solenoid

1шт.

5

1-1051

GROMMET

- protective

1шт.

6

31-1775

CLAMP

- harness, retaining

2шт.

7

47-4181

IGNITION SWITCH

SWITCH - temperature

1шт.

8

20-1388T1

GAUGE

- hydraulic filter

1шт.

Description should include, "W/Sender"

1шт.

9

31-1862

CLAMP

- harness, retainer

1шт.

10

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

11

20-2129T1

SENSOR

- magnetic, MPH (Prior to P.I.N. JCB0001961 on CABS and prior to P.I.N. JCB0001941 on ROPS)

1шт.

11

60-6085T1

SENSOR

- magnetic, MPH (P.I.N. JCB0001961 and after on CABS and P.I.N. JCB0001941 and after on ROPS)

1шт.
