(4-10) - OVERHEAD CAB HARNESS, ROPS

Запчасти Case IH 9150 (4-10) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

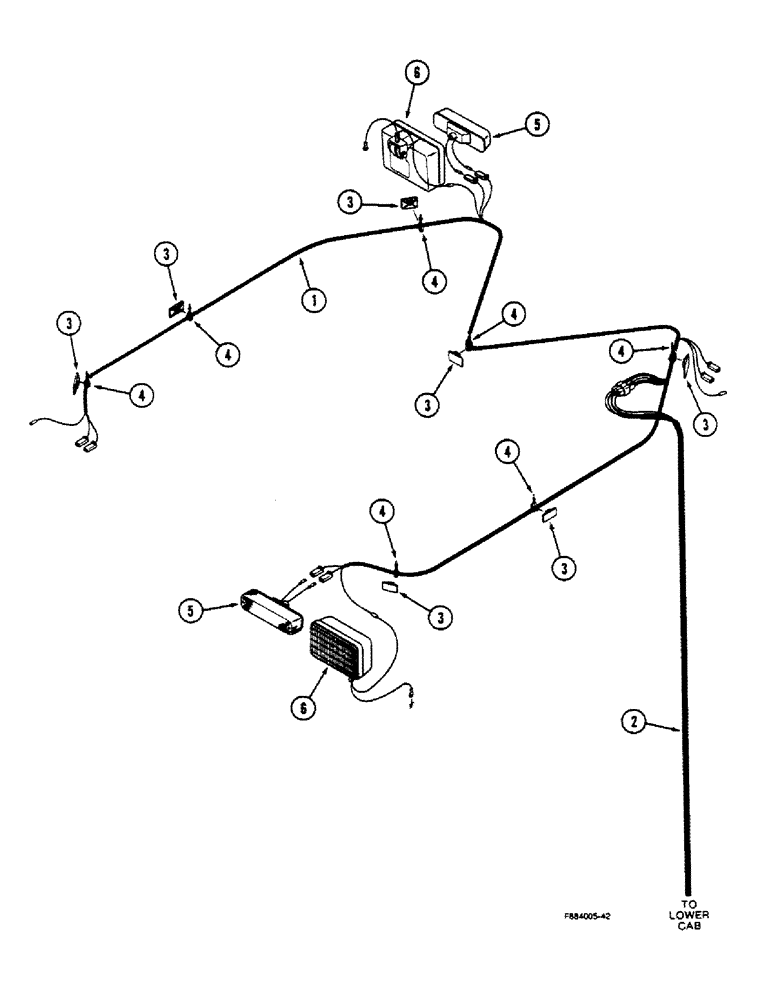

Схема запчастей Case IH 9150 - (4-10) - OVERHEAD CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS
5
3
3
4
3
3
1
2
4
4
4
4
4
5
3
4
3
3
6
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

20-2483T1

HARNESS

- overhead

1шт.

2

20-2476T1

HARNESS

- main cab (See Figure 4-6)

1шт.

3

22-823

MOUNT

MOUNT - adhesive backed

7шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure 4-46)

4шт.

6

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure 4-46)

4шт.
