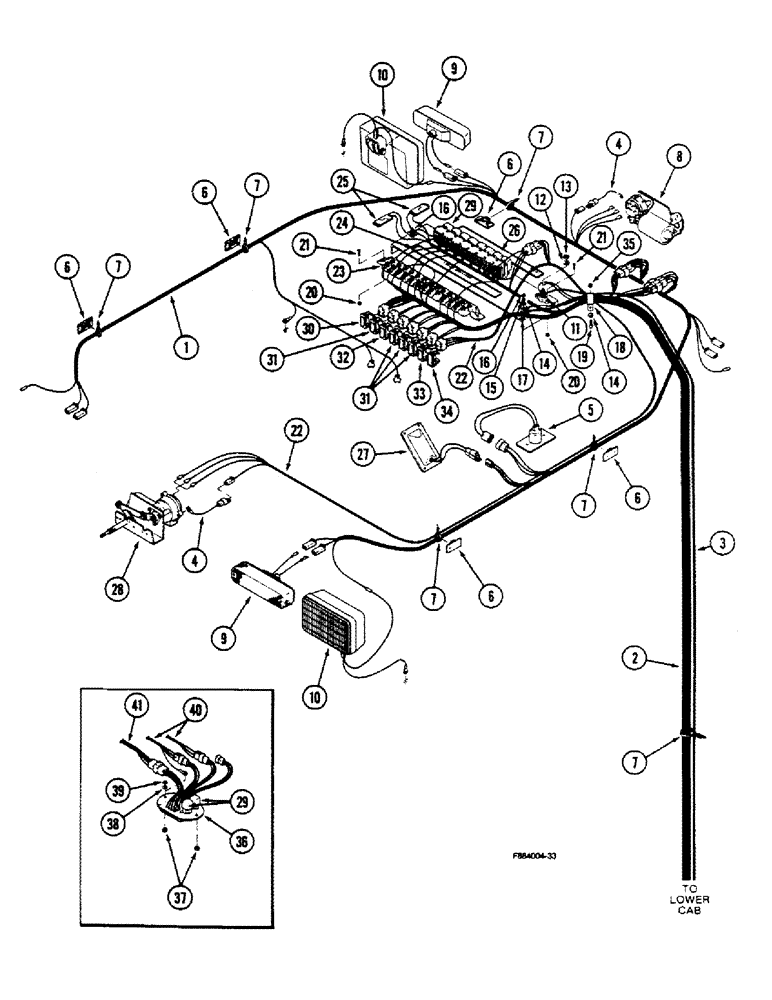

Запчасти Case IH 9150 (4-08) - OVERHEAD CAB HARNESS, P.I.N. 17900705 AND AFTER (04) - ELECTRICAL SYSTEMS

1

20-1970T1

HARNESS

- overhead

1шт.

2

20-2449T1

HARNESS

- main cab (With ROPS post gauges) (See Figure 4-4)

1шт.

2

20-2260T4

HARNESS

- main cab (Without ROPS post gauges) (See Figure 4-2)

1шт.

3

20-1974T1

HARNESS

- overhead power

1шт.

4

20-1452T1

ELECTRICAL WIRE

WIRE ASSEMBLY - motor ground

2шт.

5

REF

INSTRUCTION

LIGHT ASSEMBLY - console (See Figure 9-88)

1шт.

6

22-823

MOUNT

MOUNT - adhesive backed

6шт.

7

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

1шт.

8

REF

INSTRUCTION

DRIVE ASSEMBLY - wiper (See Figure 4-68)

1шт.

9

REF

INSTRUCTION

LIGHT ASSEMBLY - warning (See Figure 4-46)

4шт.

10

REF

INSTRUCTION

LIGHT ASSEMBLY - field (See Figure 4-46)

4шт.

11

20-1451T1

BLOCK

JUNCTION BLOCK - electrical

1шт.

12

19-5577

LOCK WASHER

- lock, brass, 3/8 inch

1шт.

13

115772

NUT

- hex, brass, 3/8 inch NC

1шт.

14

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

15

19-115

LOCK WASHER,1/4"

1/4"

2шт.

16

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

17

31-1776

MOUNTING CLIP

CLAMP - harness

1шт.

18

31-1348

CLAMP

- harness

1шт.

19

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

20

19-481

SERRATED NUT

- Keps, no. 10 NF

4шт.

21

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

- machine, pan head, no. 10 NF x 1/2 inch

4шт.

22

20-2502T1

HARNESS

- rear wiper

1шт.

23

REF

INSTRUCTION

BREAKER ASSEMBLY - circuit (See Figure 4-12)

1шт.

24

20-2246T1

DECAL

- circuit breaker

1шт.

25

22-738

DIODE

- electrical

2шт.

26

60-4923T1

DECAL

- overhead relay

1шт.

27

REF

INSTRUCTION

LIGHT ASSEMBLY - console (See Figure 9-88)

1шт.

28

REF

INSTRUCTION

DRIVE ASSEMBLY - rear wiper (See Figure 4-70)

1шт.

29

1-7877

RELAY

- electrical (Quantity 7 without ROPS post gauges)

8шт.

30

1964752C1

SWITCH

- rocker, master light

1шт.

31

245012C1

SWITCH

- rocker, dome light, front outlet, rear outlet and dash lights (Quantity 3 without ROPS post gauges)

4шт.

32

1964751C1

SWITCH

- rocker, ether start

1шт.

33

1964755C1

SWITCH

- rocker, rear wiper

1шт.

34

60-3210T1

PLUG

- switch hole

1шт.

35

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

1шт.

36

20-1669T1

CIRCUIT-BREAKER

CIRCUIT BOARD - wiper control (Includes Ref. 29), Start Serial: 17900705

1шт.

37

19-6069

SPACER

- no. 10 x 1/2 x 9/32 inch, Start Serial: 17900705

2шт.

38

19-195

WASHER,#10

- flat, no. 10, Start Serial: 17900705

2шт.

39

19-567

NUT,#10-24

- no. 10 UNC G-A, Start Serial: 17900705

2шт.

40

20-2108T1

HARNESS

- side wiper, Start Serial: 17900705

2шт.

41

20-2107T1

HARNESS

- wiper jumper, Start Serial: 17900705

1шт.
