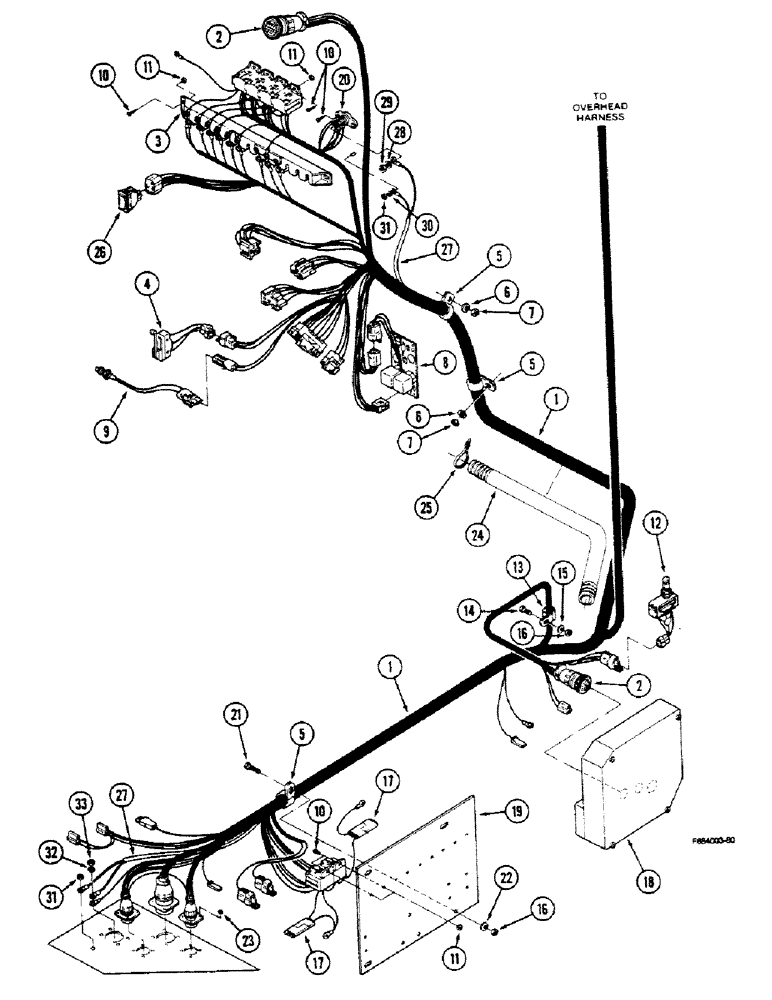

Запчасти Case IH 9150 (4-06) - LOWER CAB HARNESS, ROPS (04) - ELECTRICAL SYSTEMS

1

20-2476T1

HARNESS

ASSEMBLY - main cab, Includes: Ref. 2

1шт.

Description should include, "for the Steering Column"

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

2шт.

3

20-2485T91

BREAKER

BRACKET - mounting, circuit breaker

1шт.

4

20-2333T1

SWITCH

- micro, clutch (See Figure 6-44)

1шт.

60-2666T1

ELECTRICAL WIRE

WIRE ASSEMBLY - switch

1шт.

5

31-1348

CLAMP

- retaining, harness

3шт.

6

19-224

WASHER,3/8", SAE

- flat, 3/8 x 1 x 1/16 inch

3шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT - hex lock, 3/8 inch NC

3шт.

8

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-74)

1шт.

9

60-6027T1

SENSOR

- proximity (See Figure 6-44)

1шт.

10

19-572

SCREW,Sl Pan Hd, #10 - 32 x 1/2", Gr 5

- machine, pan head, no. 10 NF x 1/2 inch

8шт.

11

19-481

SERRATED NUT

- keps, no. 10 NF

8шт.

12

20-2050T2

IGNITION SWITCH

SWITCH - mode lever (See Figure 6-34), Start Serial: JCB0002116

1шт.

12

20-2333T1

SWITCH

- micro, mode lever (See page 6-40), Serial Range: -JCB0002116

1шт.

60-4430T2

HARNESS

WIRE ASSEMBLY - switch

1шт.

13

32-161

COLLAR CLAMP

CLAMP - retaining, harness

1шт.

14

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

15

19-105

WASHER,1/4", SAE

- flat, 1/4 x 3/4 x 1/16 inch

2шт.

16

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

17

22-738

DIODE

- electrical

2шт.

18

REF

INSTRUCTION

CONTROLLER ASSEMBLY - transmission (See Figures 6-32 and 6-38)

1шт.

19

REF

INSTRUCTION

PLATE - instrumentation (See Figure 4-14)

1шт.

20

20-1451T1

BLOCK

- junction

1шт.

21

19-2

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

22

195-102

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

23

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, no. 6 NC

12шт.

24

50-2962T1

CONDUIT

PROTECTOR - flexguard

1шт.

25

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon retaining

1шт.

26

1964752C1

SWITCH

- lighting

1шт.

27

20-2482T1

HARNESS

- relay power

1шт.

28

19-5577

LOCK WASHER

- lock, 3/8 inch

1шт.

29

115772

NUT

- hex, brass, 3/8 inch NC

1шт.

30

19-115

LOCK WASHER,1/4"

1/4"

1шт.

31

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

32

19-463

WASHER,1/2", SAE

- flat, 1/2 x 1-1/4 x 7/64 inch

1шт.

33

19-289

JAM NUT,1/2" - 13, Gr 5

- hex jam, 1/2 inch NC

1шт.
